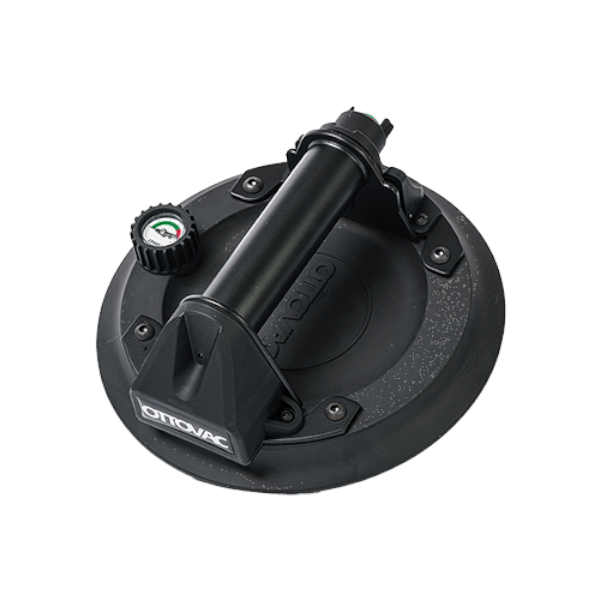

GRABO OTTOVAC
GRABO OTTOVAC is a sensor-controlled vacuum lifter designed specifically for glaziers, taking the guesswork out of vacuum lifting while helping protect glass from over-suction. Its precision sensor automatically stops the pump at optimal suction, preventing excessive pressure and reducing the risk of damaging the material. If vacuum pressure drops below the safe holding threshold of −55 kPa, the pump automatically re-engages to restore suction and maintain a solid hold throughout the job. Designed for smooth, non-porous glass and ceramic tile, the OTTOVAC can hold up to 330 lbs (150 kg) in both perpendicular and parallel positions, with an official Safe Working Load (SWL) of 230 lbs. Its compact 200 × 200 mm footprint and 2.6 lbs (1.2 kg) weight with battery make it lightweight and portable for handling large panels in tight installation areas.

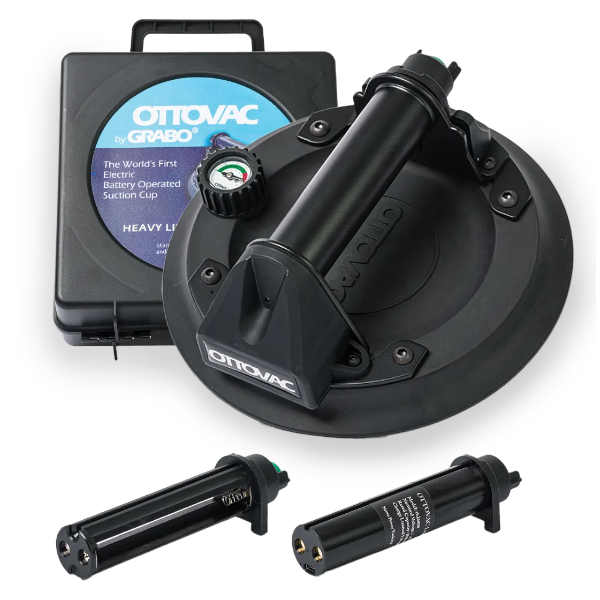

The complete jobsite package includes the OTTOVAC lifter, a fitted carry case, and standard alkaline AA cells, so it is ready to use without a charger. Powered by four 1.5 V AA batteries, the unit operates at 6 V with a rated power of 6 W and supports 1,500 ON-OFF cycles of 10 seconds. Its pump delivers 4 L/min airflow and reaches a maximum vacuum rate of −0.7 bar (−70 kPa), with a service life of more than 10,000 cycles or 800+ hours. The OTTOVAC operates from 32°F–140°F (0°C–60°C) and features automatic over-suction prevention and pump re-engagement at −55 kPa for continuous vacuum control.
Main Features
- Precision sensor-controlled suction
- Automatic pump stop at optimal vacuum to prevent over-suction
- Automatic pump re-engagement when vacuum drops below −55 kPa
- Designed specifically for glaziers
- Holds glass and ceramic tile up to 330 lbs (150 kg)
- Official Safe Working Load (SWL): 230 lbs
- Suitable for perpendicular and parallel handling
- Compact 200 × 200 mm footprint
- Lightweight 2.6 lbs (1.2 kg) design with battery

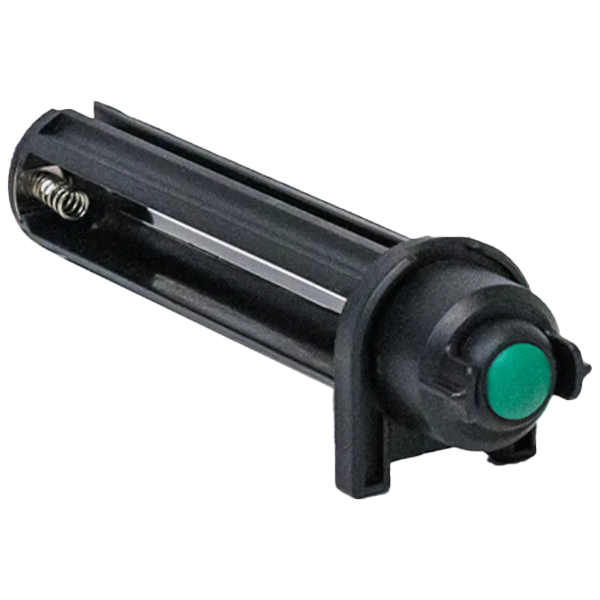

- Powered by four standard alkaline AA 1.5 V batteries
- No charger required
- 4 L/min rated airflow
- Maximum vacuum rate: −0.7 bar (−70 kPa)
- 1,500 ON-OFF cycles of 10 seconds
- Pump service life: 10,000+ cycles / 800+ continuous hours

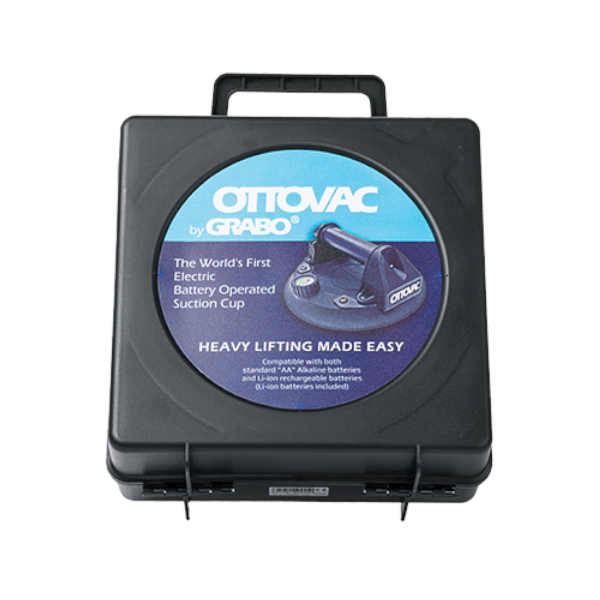

- Fitted carry case included
- AA cells included
- Working temperature: 32°F–140°F (0°C–60°C)
- Over-suction prevention and automatic re-engagement at −55 kPa
Specifications
| Property | Value |
|---|---|
| Model | OTTOVAC-V1 |
| SKU | OV-V1 |
| Battery | 4 × Alkaline AA 1.5 V |
| Working Voltage | 6 V |
| Rated Power | 6 W |
| Working Cycle | 1,500 ON-OFF cycles (10 seconds) |
| Length | 7.87 in (200 mm) |
| Width | 7.87 in (200 mm) |
| Height | 3.54 in (90 mm) |
| Weight with Battery | 2.6 lbs (1.2 kg) |
| Safe Working Load (SWL) | 230 lbs |
| Maximum Lift | 330 lbs (150 kg) |
| Rated Air Flow | 4 L/min |
| Maximum Vacuum Rate | -0.7 bar (-70 kPa) |
| Vacuum Control | Sensor auto-stop & auto re-engage |
| Service Life | 10,000+ cycles / 800+ continuous hours |
| Working Temperature | 32°F–140°F (0°C–60°C) |
| Applicable Surfaces | Smooth non-porous: glass & ceramic tile |
| Safety Features | Over-suction prevention; auto re-engagement at -55 kPa |
| Included | Fitted carry case and AA cells |
Lifting Capacity
| Material | Perpendicular Hold | Parallel Hold |
|---|---|---|
| Glass | 150 kg / 330 lbs | 150 kg / 330 lbs |
| Ceramic Tile | 150 kg / 330 lbs | 150 kg / 330 lbs |
GRABO OTTOVAC Video
OTTOVAC by GRABO Introduction
GRABO OTTOVAC Spec Sheet
OTTOVAC Spec Sheet
OTTOVAC Manual & Instruction
Notice
OTTOVAC is not designed or intended for climbing or supporting a person’s weight. Do not attach it to glass thinner than 6 mm, as high vacuum pressure can cause damage. The official Safe Working Load is 230 lbs; never exceed the stated safe lifting values. Charging cable not included.
