GRABO OTTOVAC Digital

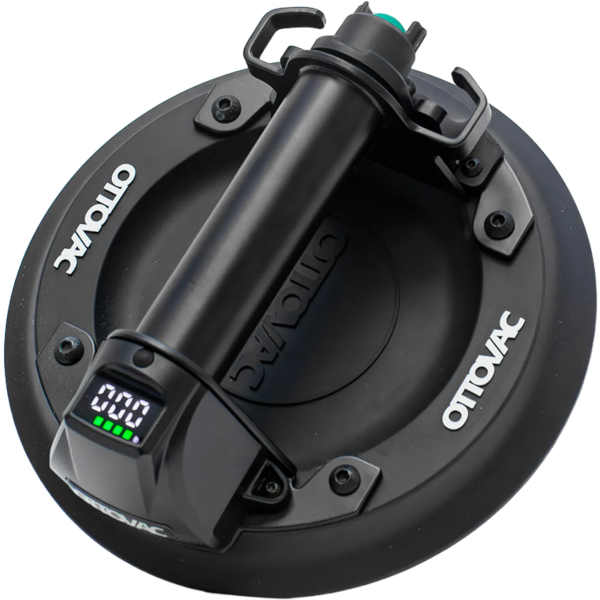

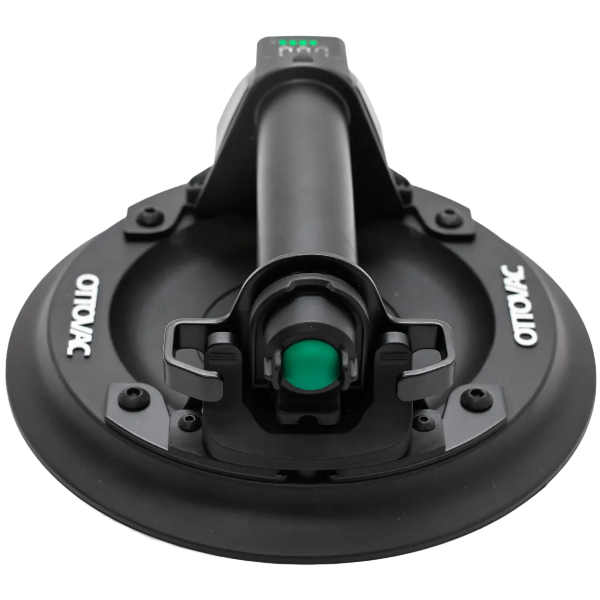

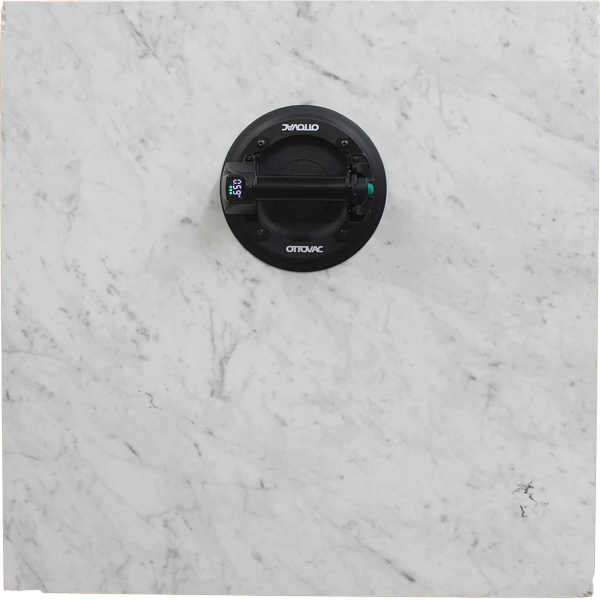

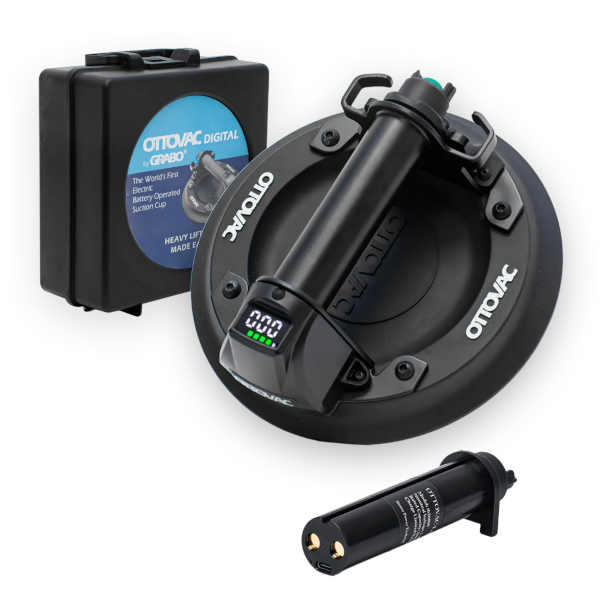

GRABO OTTOVAC Digital is a digital upgrade to the traditional glazier’s suction cup, replacing the analog pressure dial with a clear, real-time digital display that shows vacuum pressure in PSI and bar, plus estimated load capacity in lbs and kg. Its built-in electric pump automatically creates and maintains the vacuum, eliminating manual pumping and letting operators focus on positioning materials while the seal stays secure. Designed for smooth, non-porous materials such as glass and ceramic tile, its compact 200 × 200 mm footprint provides a maximum hold of 220 lbs (100 kg) in both perpendicular and parallel positions. Integrated metal anchor points accept official GRABO® attachments and third-party rigging, providing flexible mounting options for glazing and other jobsite applications.
The GRABO OTTOVAC Digital uses a rechargeable 7.4 V, 2000 mAh lithium-ion battery, as specified in its operator manual. The tool measures 7.87 × 7.87 × 3.54 in (200 × 200 × 90 mm) and weighs 2.6 lbs (1.2 kg) with batteries. Its motorized pump delivers 4 L/min airflow and reaches a maximum vacuum rate of −0.7 bar (−70 kPa), with a service life of more than 10,000 cycles or 800+ hours. The rated hold is up to 220 lbs (100 kg) on suitable glass and ceramic tile. The unit supports 1,500 ON-OFF cycles of 10 seconds, and is suitable for working temperatures from 32°F–140°F (0°C–60°C).
Main Features
- Real-time digital pressure display in PSI and bar
- Estimated lifting capacity displayed in lbs and kg
- Built-in motorized pump automatically creates and maintains vacuum
- Designed for smooth, non-porous glass and ceramic tile
- Rated hold up to 220 lbs (100 kg) on suitable smooth surfaces
- Follow the load limits and handling instructions for your material
- 200 × 200 mm compact footprint for easy maneuverability
- 100 kg / 220 lbs maximum hold on glass and ceramic tile in perpendicular and parallel positions
- Integrated metal anchor points for official GRABO® attachments and third-party rigging

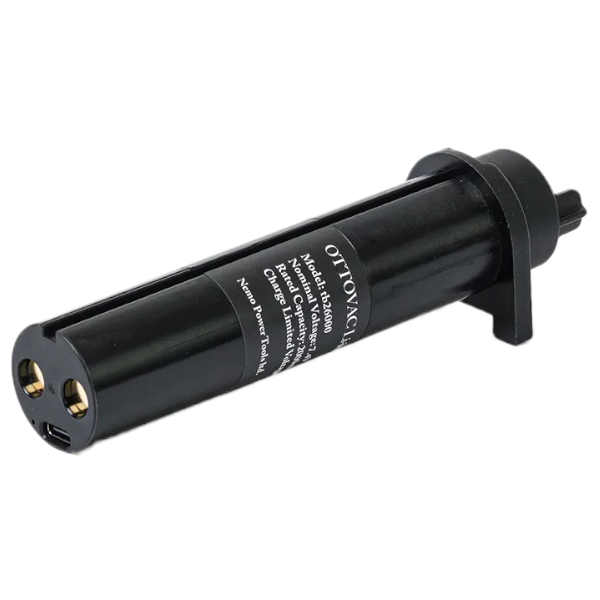

- Rechargeable 7.4 V, 2000 mAh lithium-ion battery
- Recharge the battery according to the operator manual
- 4 L/min rated airflow
- Maximum vacuum rate: −0.7 bar (−70 kPa)
- 1,500 ON-OFF cycles of 10 seconds
- Pump service life: 10,000+ cycles / 800+ continuous hours
- Working temperature: 32°F–140°F (0°C–60°C)
- Compact 2.6 lbs (1.2 kg) design
Specifications
| Property | Value |
|---|---|
| Model | OTTOVAC DIGITAL V1 |
| SKU | OVD-V1 |
| Battery | 7.4 V, 2000 mAh lithium-ion |
| Working Voltage | 7.4 V |
| Working Cycle | 1,500 ON-OFF cycles (10 seconds) |
| Length | 7.87 in (200 mm) |
| Width | 7.87 in (200 mm) |
| Height | 3.54 in (90 mm) |
| Weight with Battery | 2.6 lbs (1.2 kg) |
| Rated Hold | Up to 220 lbs (100 kg) |
| Rated Air Flow | 4 L/min |
| Maximum Vacuum Rate | -0.7 bar (-70 kPa) |
| Vacuum Control | Motorized pump with digital readout |
| Service Life | 10,000+ cycles / 800+ continuous hours |
| Working Temperature | 32°F–140°F (0°C–60°C) |
| Applicable Surfaces | Smooth non-porous: glass & ceramic tile |
| Additional Features | Digital PSI/bar display, motorized pump, metal anchor points |
Lifting Capacity
| Material | Perpendicular Hold | Parallel Hold |
|---|---|---|
| Glass | 100 kg / 220 lbs | 100 kg / 220 lbs |
| Ceramic Tile | 100 kg / 220 lbs | 100 kg / 220 lbs |
GRABO OTTOVAC Digital Video
GRABO OTTOVAC DIGITAL
GRABO OTTOVAC Digital Spec Sheet
OTTOVAC Digital Manual & Instruction
Notice
OTTOVAC DIGITAL is not designed or intended for climbing or supporting a person’s weight. Do not attach it to glass thinner than 6 mm, as high vacuum pressure can cause damage. Never exceed the applicable safe lifting limit. Follow the operator manual for surface suitability, lifting technique, and battery charging.
