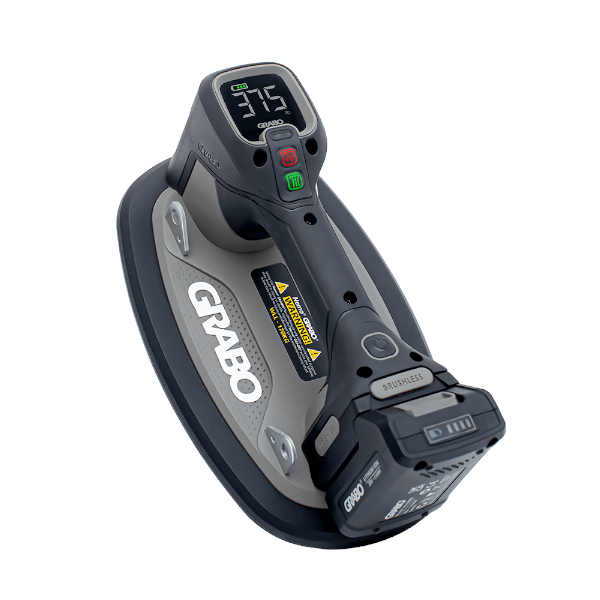

GRABO Pro Brushless Vacuum Lifter
GRABO Pro Brushless Vacuum Lifter delivers brushless power engineered for demanding professional lifting applications, running on the new GRABO® 20V platform (18V in the EU) with a 2.6Ah Li-ion battery compatible with every GRABO® 20V pack. Its high-torque brushless motor drives a high-flow pump delivering 30 L/min for quicker grabs, faster vacuum resets, and longer runtime on a single charge. The 20V charger accepts 100–240 VAC, 50/60 Hz, and fully charges the battery in approximately 2 hours. The lifter features a bright LED display and adjustable suction limiter for precise vacuum control, allowing operators to set and monitor the exact pressure required for thin glass, polished stone, delicate tile, and other heavy or fragile materials while helping prevent over-suction. The upgraded pump automatically maintains vacuum as you move and place each load, while the balanced ergonomic handle is designed for comfortable all-day use.
An integrated wireless remote lets you control the unit from up to 98 ft (30 m) away, adding convenience when handling large, awkward, or hard-to-reach materials. The GRABO® PRO Brushless is suitable for non-porous and semi-porous surfaces with peak/valley heights under 0.1 in (3 mm) and an arc of less than 5°, and provides adjustable suction presets for porous, textured, and fragile materials. It measures 12.2 × 7.5 × 5.9 in (310 × 191 × 149 mm) and weighs 4.4 lbs (2 kg) with the battery. The system provides a maximum lift of 375 lbs (170 kg), while the official Working Load Limit (WLL) is 265 lbs (120 kg) on non-porous surfaces. Its brushless pump delivers 30 L/min, with an adjustable suction limiter up to 11.6 psi (0.8 bar / 80 kPa), and the pump is rated for more than 100,000 ON-OFF cycles or over 800 hours of continuous operation.
Main Features
- High-torque brushless motor with 30 L/min high-flow pump
- New GRABO® 20V platform (18V EU)

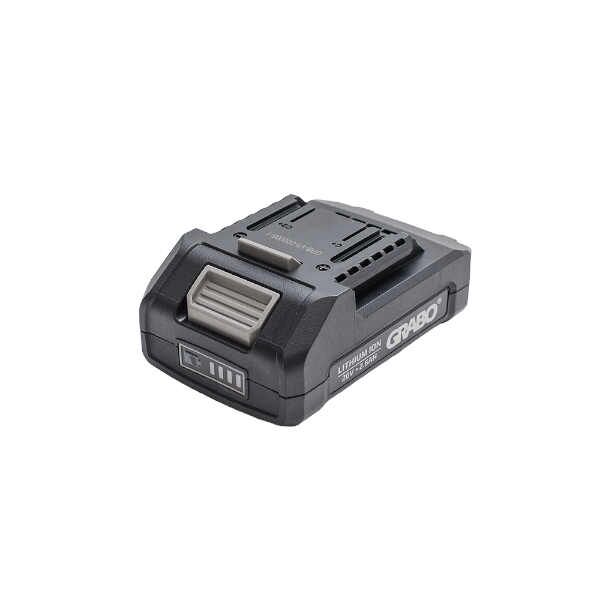

- 2.6Ah Li-ion battery compatible with all GRABO® 20V packs
- Adjustable suction limiter for precise vacuum control
- Bright LED display with real-time vacuum monitoring
- Automatic vacuum maintenance while lifting and moving materials
- Integrated wireless remote with up to 98 ft (30 m) range

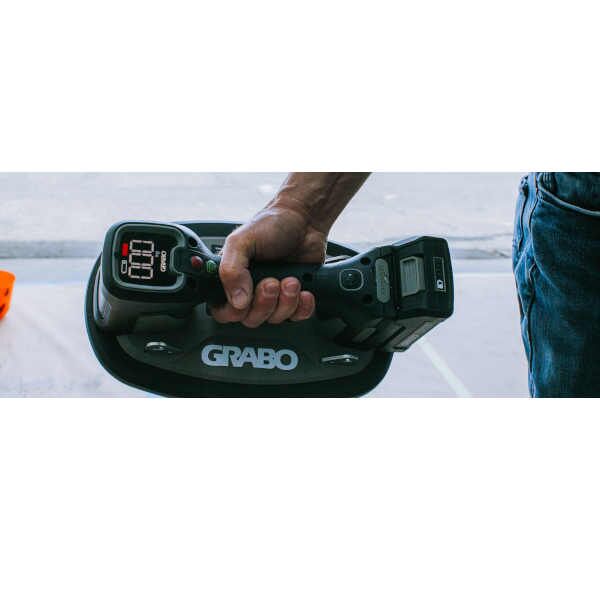

- Balanced ergonomic handle for extended use

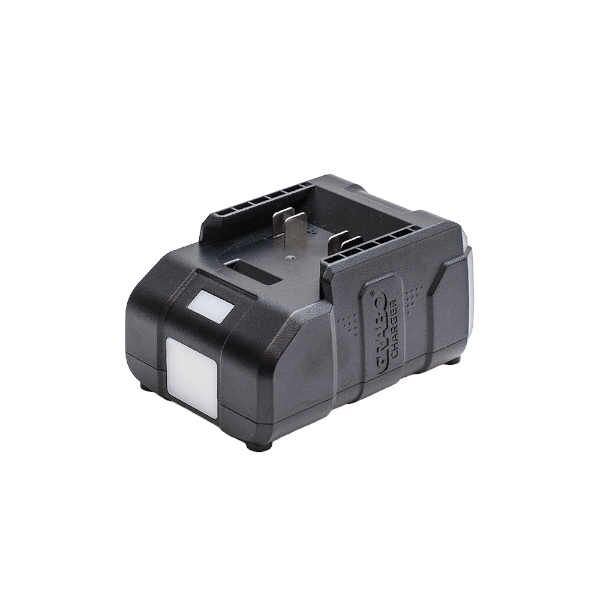

- 20V charger with 100–240 VAC, 50/60 Hz input
- Approximately 2-hour battery charging time
- Up to 1.5 hours of continuous operation
- Approximately 900 ON-OFF cycles per full charge
- Up to 30 days of standby charge hold
- Suitable for non-porous and semi-porous surfaces
- Surface compatibility: peak/valley height < 0.1 in (3 mm), arc < 5°
- Maximum lift: 375 lbs (170 kg)
- Official WLL: 265 lbs (120 kg) on non-porous surfaces
- Working temperature: 32°F–140°F (0°C–60°C)
Lifting Capacity
| Material | Perpendicular Hold | Parallel Hold |
|---|---|---|
| Glass | 120 kg / 265 lbs | 120 kg / 265 lbs |
| Ceramic Tile | 120 kg / 265 lbs | 120 kg / 265 lbs |
| Metal | 110 kg / 242 lbs | 110 kg / 242 lbs |
| Plastic | 100 kg / 220 lbs | 100 kg / 220 lbs |
| Wood | 100 kg / 220 lbs | 65 kg / 143 lbs |
| Rough Slate | 80 kg / 176 lbs | 80 kg / 176 lbs |
| Rough Concrete | 80 kg / 176 lbs | 80 kg / 176 lbs |
| Drywall | 75 kg / 165 lbs | 65 kg / 143 lbs |
Specifications
| Property | Value |
|---|---|
| Model | GRABO® PRO Brushless |
| Battery Platform | GRABO® 20V (18V EU) 2.6Ah Li-ion, compatible with all GRABO® 20V packs |
| Charger Input Voltage | 100–240 VAC, 50/60 Hz |
| Battery Charging Time | ~2 hours |
| Non-Stop Running Time | Up to 1.5 hours |
| Running Cycles | ~900 ON-OFF cycles (10 seconds) |
| Standby Mode | Up to 30 days |
| Length | 12.2 in (310 mm) |
| Width | 7.5 in (191 mm) |
| Height | 5.9 in (149 mm) |
| Weight with Battery | 4.4 lbs (2 kg) |
| Working Load Limit (WLL) | 265 lbs (120 kg) |
| Maximum Lift | 375 lbs (170 kg) |
| Brushless Pump Output | High-torque brushless motor, 30 L/min |
| Air Flow | 30 L/min high-flow pump |
| Vacuum Control | Adjustable suction limiter up to 11.6 psi (0.8 bar / 80 kPa) |
| Pump Service Life | 100,000+ ON-OFF cycles / 800+ continuous hours |
| Working Temperature | 32°F–140°F (0°C–60°C) |
| Applicable Surface Type | Non-porous & semi-porous; peak/valley height < 0.1 in (3 mm); arc < 5° |
| Additional Features | LED display, adjustable suction limiter, integrated wireless remote |
GRABO Pro Brushless Vacuum Lifter Video
INTRODUCING THE GRABO PRO BRUSHLESS
GRABO Pro Brushless Vacuum Lifter Spec Sheet
Pro Brushless Vacuum Lifter Spec Sheet
Pro Brushless Vacuum Lifter Manual & Instruction
Safety Notice
GRABO® PRO Brushless was tested up to 530 lbs (240 kg) at maximum lifting force under ideal conditions. Local regulations require a 2:1 safety margin, so the official Working Load Limit (WLL) is 265 lbs (120 kg) on non-porous surfaces. Never exceed the stated safe lifting values.
