Showing 1–12 of 83 results
- Groves Parts & Accessories, A Frames and Racks Accessories, A-Frames and Racks, Shop & Installation

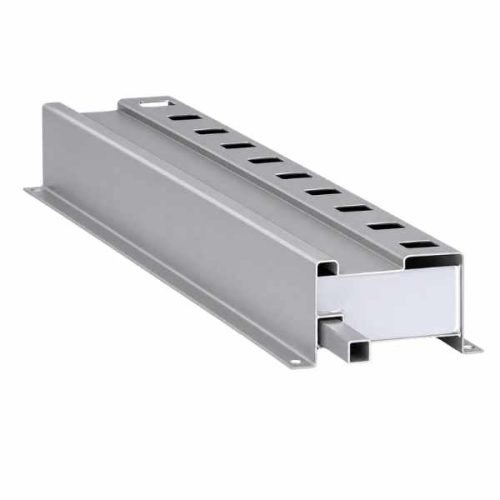

GROVES 60” Long Outside Rail with Wood Slot
Groves Parts & Accessories, A Frames and Racks Accessories, A-Frames and Racks, Shop & InstallationGROVES 60” Long Outside Rail with Wood Slot
- Outside rails are designed with slots to hold a 2×4. This helps protect the material being stored as well as the rail surface.
- Outside rails have 2″ square holes spaced 4″ apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1″ up from the bottom.
- Rails shipped with an 11″ connector tube for butting rails together in a straight line.
- Note: When assembled, the overall usable height of the post is 5.5″ less than listed. Example: A 60″ post will be 54.5″ above the top of the outside rail.
- Use .5″ holes on the bottom flange to secure the floor rails.
- Maximum Weight Allowed Per Bundle 9,000 LBS. (4,500 LBS. PER POST)
- Patent # 7143901
- Groves Parts & Accessories, A Frames and Racks Accessories, A-Frames and Racks, Shop & Installation

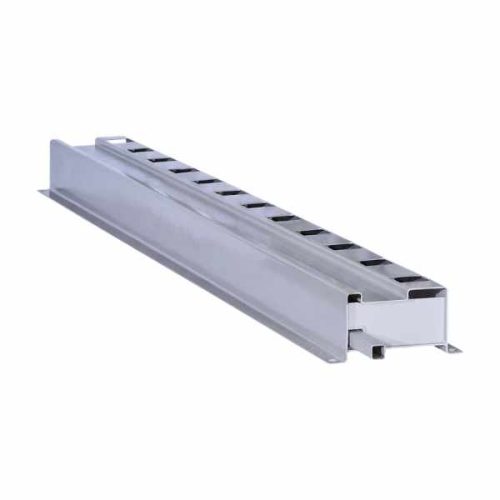

GROVES 90” Long Outside Rail with Wood Slot
Groves Parts & Accessories, A Frames and Racks Accessories, A-Frames and Racks, Shop & InstallationGROVES 90” Long Outside Rail with Wood Slot
- Outside rails are designed with slots to hold a 2×4. This helps protect the material being stored as well as the rail surface.
- Outside rails have 2.5″ square holes spaced 5″ apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1″ up from the bottom.
- Rails shipped with an 11″ connector tube for butting rails together in a straight line.
- Note: When assembled, the overall usable height of the post is 5.5″ less than listed. For example, a 72″ post will be 66.5″ above the top of the outside rail.
- Use .5″ holes on the bottom flange to secure the floor rails.
- Maximum Weight Allowed Per Bundle 9,000 LBS. (4,500 LBS. PER POST)
- Patent # 7143901
- Groves Parts & Accessories, A Frames and Racks Accessories, A-Frames and Racks, Shop & Installation
GROVES Center Rail for Storage Rack 60″
Groves Parts & Accessories, A Frames and Racks Accessories, A-Frames and Racks, Shop & InstallationGROVES Center Rail for Storage Rack 60″
- Heavy-duty center rail designed for storing glass panels, wood cases, and loose lites
- Modular design allows multiple sections to be joined for custom storage lengths
- Easy Slide low-friction surfaces enable smooth loading and unloading
- Reduces handling effort and helps prevent product damage
- Supports up to 4,000 lbs between posts and 2,000 lbs per post
- Provides reliable support for safe material handling within rack systems
- Durable construction built for demanding storage environments
- Designed for secure floor anchoring to maximize stability and safety
-
- Groves Parts & Accessories, A Frames and Racks Accessories, A-Frames and Racks, Shop & Installation

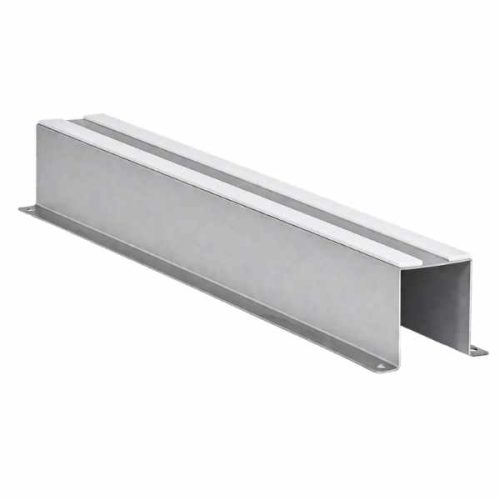

GROVES Center Rail for Multi-Purpose Storage Rack
Groves Parts & Accessories, A Frames and Racks Accessories, A-Frames and Racks, Shop & InstallationGROVES Center Rail for Multi-Purpose Storage Rack
The GROVES Center Rail for Multi-Purpose Storage Rack is a cutting-edge solution designed to enhance the efficiency and convenience of your storage system. Specifically engineered to support glass and other delicate materials, the center rail with an easy slide feature ensures smooth and effortless sliding of individual pieces in and out of the racks.
- The center rail with an easy slide must support the glass when sliding individual pieces in and out of the racks.
- Easy Slide, a low-friction material, is mounted to the rails and posts to facilitate product sliding in and out.
- Carts and Dollies by Groves Incorporated

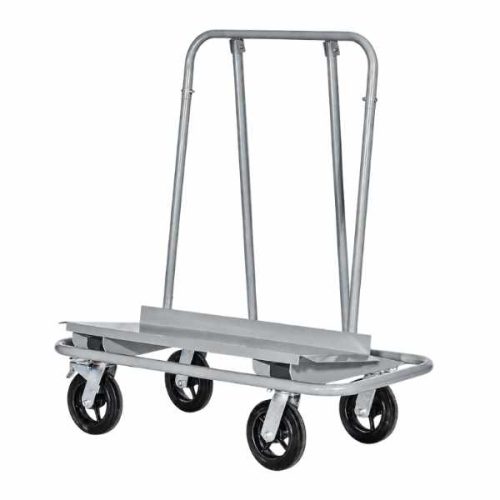

GROVES Drywall Cart
- Gray powder coat finish.
- Heavy duty 8″ casters (Three swivel and one swivel with brake).
- Ships knocked down for freight savings.
- Material can be secured to the cart using hold-down straps (not included).
- Maximum total weight capacity is 2,000 lbs.
- A Frames and Racks by Groves Incorporated

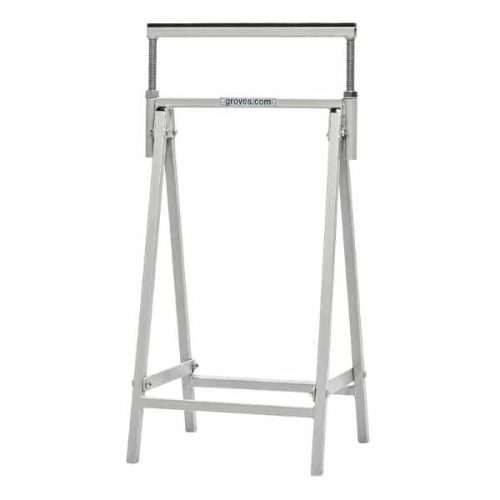

GROVES Fabrication Stand
- Heavy-duty powder-coated finish.
- Height adjustable from 36″ to 42″.
- Collapsable for easy transport and storage.
- Rubber-mounted on top prevents sliding and scratches.
- Maximum weight capacity 500 lbs. with top bar fully retracted / 300 lbs. top bar fully extended.
- Carts and Dollies by Groves Incorporated

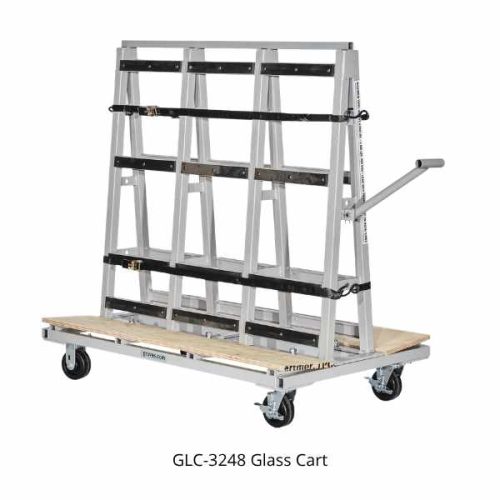

GROVES Glass Carts
- Heavy-duty powder-coated finish for long-lasting durability
- Carts have plywood bases and rubber mounted horizontally on the upright supports
- Available in 48, 60, 72, or 78-inch Load Heights
- Includes two rigid and two swivels with brake casters (caster kit optional for GLC‑4878)
- Hold-down straps must be used at all times.
- Work Tables by Groves Incorporated

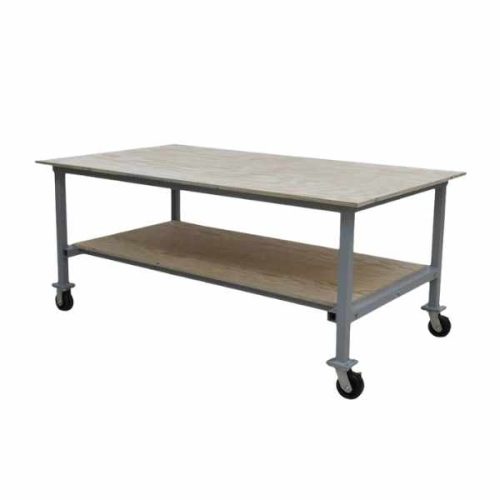

GROVES Glass Cutting Table
- Gray powder coat finish.
- Plywood will be mounted to the top and bottom shelf.
- The shelf height is 16″ from the floor.
- Ships are knocked down for freight savings and can be assembled in 20 minutes.
- Two rigid and two swivel brake 5″ casters.
