CNC auto edge and C-frame tools include polishing wheels, snail lock systems and diamond tooling for stone fabrication. Explore straight-edge and bullnose options alongside CNC calibration, core and finger tools. Match each tool’s diameter, grit sequence, mounting system and material rating to your machine.
CNC Auto Edge Tools & C-Frame Tools
CNC Auto Edge Tools & C-Frame Tools Categories
Explore Brand PagesCNC Auto Edge Tools & C-Frame Tools Categories
CNC Auto Edge Tools & C-Frame Tools
Showing 1–12 of 37 results
- CNC Auto Edge Tools & C-Frame Tools, CNC Tools By Diamax
Cyclone Ultra Straight Edge Velcro Wheel
- Provides all the great features of the Cyclone version at a more competitive price
- Outperforms other industry brands at the same price point level
- More forgiving when polishing engineered stone with minimal water
- Available in 5″ & 6″
- CNC Tools By Diamax, Core Bits and Finger Bits for CNC Machines
Cyclone CNC Calibrating Wheel
- CNC Calibration Wheels prepare the slab by gauging or reducing the thickness
- This tool gives you a consistent edge
- For use on Engineered Stone or Granite
- Approximate Recommended Feed Rate is 35-70 inches per minute (IPM)
- For Wet use only
- 4″ diameter size
- Choose between 25 or 32 segments
- CNC Tools By Diamax, Core Bits and Finger Bits for CNC Machines
Cyclone CNC Z Wheel
- Available in both 60 mm and 80 mm
- Ultra-aggressive design for fast work at minimal spindle feed
- Extends the life of the first position on your profile bit sequence
- Ideal for Engineered Stone and Granite
- For Wet use only
- The 60mm variation has 15 segments, while the 80mm one has 21 segments
- CNC Tools By Diamax, Core Bits and Finger Bits for CNC Machines
Cyclone CNC Core Bits
- T-segment design with new diamond technology increases life and minimizes segment loss
- Designed with slot-openings on each side which prevents blow-outs
- Half-gas threading for CNC machine use
- Feed Rate: 30mm slab/2 IPM
- Ideal for working with Engineered Stone and Granite
- For Wet use only
- 2,300 Maximum RPM
- CNC Tools By Diamax, Core Bits and Finger Bits for CNC Machines
Cyclone Combo Finger Bit
- Faster incremental cutting with a larger bottom segment
- Up to 3/8″ stock removal per pass
- Overall, cutting time is shorter by 60%
- Fastest cutting finger bit for 5-axis saws
CAN BE USED ON
MATERIALS
USE
CNC Machine Engineered stone, granite Wet Only - CNC Tools By Diamax, Core Bits and Finger Bits for CNC Machines
Cyclone Finger Bits
Cyclone Finger Bits bottom segment gives the CNC operator the option of drilling into the slab like a core bit. The 7 segment finger bit has the first-ever reverse apple core design.
- Available in 1 ⅝” and 2 ½” for different granite thickness
- The bottom segment gives the CNC operator the option of drilling into the slab like a core bit
- The 7 segment finger bit has the first-ever reverse apple core design – thicker in the middle
CAN BE USED ON
MATERIALS
USE
CNC Machine Engineered Stone, Granite, Marble Wet Only - CNC Tools By Diamax, Core Bits and Finger Bits for CNC Machines
Cyclone Ultra CNC Core Bit
- Specific metal bond and diamond composition provide fast and clean milling in Porcelain and Ultra-compact material
- 8-segment design ensures a well-balanced, smooth cut
- Ideal for working with Engineered Stone, Granite, Porcelain/Tile, and Ultra-compact
- Wet use only
- CNC Tools By Diamax, Core Bits and Finger Bits for CNC Machines
Cyclone Ultra CNC Finger Bit
- Specific metal bond and diamond composition provide fast and clean milling in Porcelain and Ultra-compact material
- 8 segment design ensures well balanced smooth cut
- Ideal for working Engineered Stone, Granite, Porcelain/Tile, and Ultra-compact
- Wet use only
- CNC Tools By Diamax, Core Bits and Finger Bits for CNC Machines
Super Cyclone High-Speed Finger Bits
Super Cyclone High-Speed Finger Bits have a smaller diameter and seven segments designed to cut faster. Its bottom segment enables drilling into a slab like a core bit.
- The New Super Cyclone Seven Segment Finger Bit has a smaller diameter and seven segments designed to cut faster
- The bottom segment enables drilling into slab like a core bit
- Ideal for hard materials
CAN BE USED ON
MATERIALS
USE
CNC Machine Engineered Stone, Granite Wet Only - CNC Auto Edge Tools & C-Frame Tools, CNC Tools By Diamax

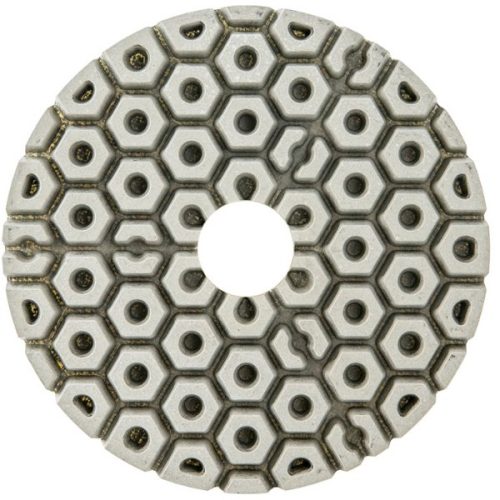

Cyclone Straight Edge Wheels White Resin
The Cyclone Straight Edge Wheels White Resin are specially designed to be used on white and light-colored materials without bleeding.
- Designed to be used on white and light-colored materials without bleeding
- Gives an exceptional and superior smooth finish in comparison to epoxy wheels
- 4″ Diameter Size
CAN BE USED ON
MATERIALS
USE
Auto Edge Machine Engineered Stone, Granite, Marble Wet Only - CNC Auto Edge Tools & C-Frame Tools, CNC Tools By Diamax

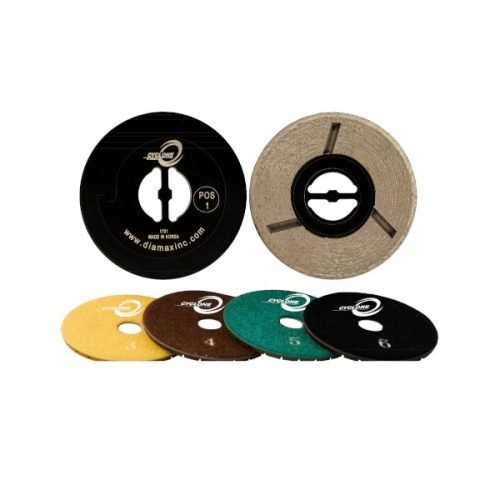

Cyclone Snail Lock System
- Fits most auto-edge profile machines with a new formula which ensures even wear and longer life
- Best for bull-nose shaping & polishing
- Copper bonded position #3 ensures longer life compared to standard resin
- For RPM please consult your machine technical specs
-
