GRABO HighFlow
GRABO HighFlow is GRABO®’s most powerful cordless vacuum lifter, engineered to grip extremely porous, rough, and open-grain materials that can defeat standard suction tools. Its high-volume pump delivers an impressive 1,500 L/min (1.5 m³/min) airflow, allowing it to build and maintain a strong, stable vacuum on demanding surfaces such as dry cast pavers, rough concrete, raw timber, untreated stone, rough brick, plywood, and OSB. The innovative pistol-grip design, SMART CUT foam seal, and user-friendly T-Bar handle provide improved ergonomics for lifting, moving, and installing heavy porous materials with greater precision and confidence. A large digital display shows real-time vacuum pressure in PSI or BAR, while the pump cycles automatically to maintain the seal as you move and position materials. The dual-battery system keeps the high-volume pump running during demanding applications, and the tool supports suction plates in 300 × 300 mm and 400 × 400 mm sizes, with the 400 mm plate increasing lifting capability to up to 242 lbs (110 kg).
The GRABO® HighFlow features four power levels from 50 W to 160 W, a maximum vacuum rate of 0.19 bar (2.7 psi), and a working temperature range of 23°F–122°F (-5°C–50°C). The supplied GRABO® 20V (18V EU) battery system uses the TB21000 battery with 5.0 Ah capacity, 18 V nominal voltage, and 21 V charge voltage, providing up to 30 minutes of working time on a full charge. The included 84 W charger accepts 100–240 V AC, 50/60 Hz, with up to 2 A input and delivers 21 V output at 3.6–4.4 A under load (4.5 A max). The tool measures 11.9 × 7.2 × 5.8 in (303 × 184 × 147 mm) and weighs 6.4 lbs (2.9 kg) with the 300 × 300 add-on and battery. The 300mm suction plate is included, while the 400mm suction plate is available separately. The system also includes a T-Bar handle with wired remote ON/OFF control for ergonomic paver laying.
Main Features
- 1,500 L/min (1.5 m³/min) high-volume vacuum airflow
- Designed for extremely porous, rough, and open-grain materials
- Suitable for dry cast pavers, rough concrete, raw timber, untreated stone, rough brick, plywood, and OSB
- Ergonomic pistol-grip design
- SMART CUT foam seal and T-Bar handle for outdoor paver installation
- Large digital display for real-time PSI or BAR pressure monitoring
- Automatic pump cycling to maintain vacuum during handling
- Dual-battery system for demanding rough-material applications
- Four power levels: 50 W, 90 W, 130 W, and 160 W
- Maximum vacuum rate: 0.19 bar (2.7 psi)
- Supports 300 × 300 mm and 400 × 400 mm suction plates
- Up to 242 lbs (110 kg) lifting capacity with the 400mm suction plate

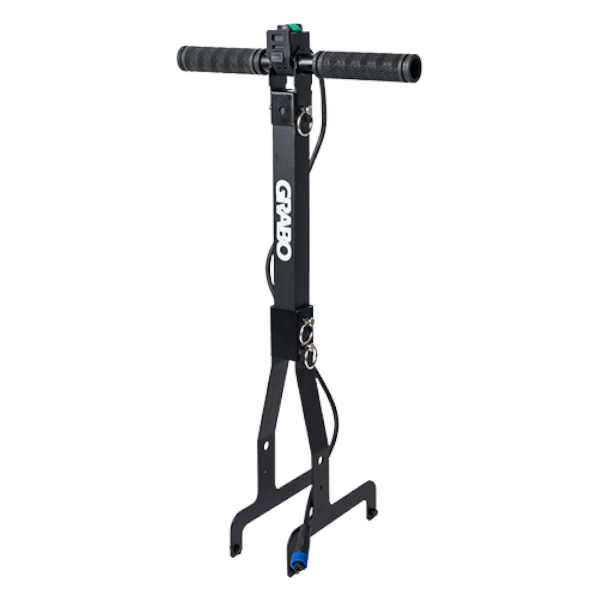

- T-Bar handle with wired remote ON/OFF control
- GRABO® 20V (18V EU) battery platform
- Up to 30 minutes of working time per full charge

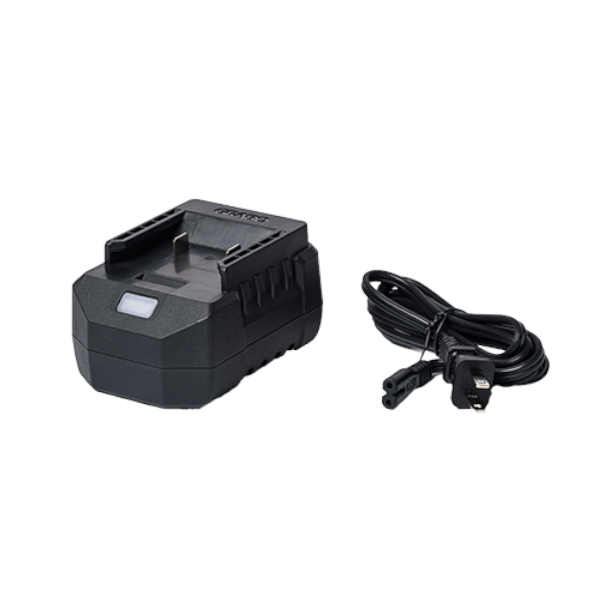

- 84 W charger with 100–240 V AC input
- Working temperature: 23°F–122°F (-5°C–50°C)
Specifications
| Property | Value |
|---|---|
| Model / SKU | GRABO® HighFlow / GHF-V1 |
| Dimensions | 303 × 184 × 147 mm / 11.9 × 7.2 × 5.8 in |
| Net Weight with 300 × 300 Add-On & Battery | 2.9 kg / 6.4 lbs |
| Rated Power | Gear 1: 50 W; Gear 2: 90 W; Gear 3: 130 W; Gear 4: 160 W |
| Maximum Vacuum Rate | 0.19 bar / 2.7 psi |
| Rated Air Flow | 1,500 L/min (1.5 m³/min) |
| Working Temperature | -5°C to +50°C / 23°F to +122°F |
| A-Weighted Sound Pressure Level* | LpA = 79.4 dB(A), uncertainty K = 3 dB(A) |
| A-Weighted Sound Power Level* | LwA = 71.4 dB(A), uncertainty K = 3 dB(A) |
| Vibration Total Value** | 1.240 m/s², uncertainty K = 0.11 m/s² |
| Suction Plate 300 Dimensions | 316 × 316 × 17.3 mm |
| Suction Plate 400 Dimensions | 416 × 416 × 17.3 mm (not included) |
| Battery Model | TB21000 |
| Battery Rated Capacity | 5.0 Ah |
| Nominal Voltage / Charge Voltage | 18 V / 21 V |
| Charge Current | 0,166666666666667 |
| Overcharge Protection | 4.25 V |
| Working Time, Full Charge | Up to 30 minutes |
| Battery Charging Temperature | 32°F–115°F (0°C–45°C) |
| Battery Discharge Temperature | -4°F–140°F (-20°C–60°C) |
| Long-Term Battery Storage (>3 months) | 0°C–30°C / 32°F–86°F; charged to 18.5–19.5 V (80–90% of full charge) |
| Charger Rated Power | 84 W |
| Charger Input | 100–240 V AC; 50/60 Hz; 2 A max |
| Charger Output Voltage | 21 V |
| Charger Output Current | 3.6–4.4 A under load (4.5 A max) |
| Charger Operating Temperature | 0°C–40°C / 32°F–104°F |
| Charger Storage Temperature | -10°C–75°C / 14°F–167°F |
| Charger Working Conditions | Indoor use only; not waterproof (IP0) |
Lifting Capacity
| Material | Perpendicular Hold |
|---|---|
| Rough Concrete | 100 kg / 220 lbs |
| Raw Timber | 100 kg / 220 lbs |
| Rough Slate | 90 kg / 198 lbs |
| Untreated Stone | 90 kg / 198 lbs |
| Drywall | 80 kg / 176 lbs |
| Plywood | 90 kg / 198 lbs |
| OSB | 80 kg / 176 lbs |
| Rough Brick | 85 kg / 187 lbs |
GRABO HighFlow Video
THE GRABO High Flow Introduction
Product Related Documents
GRABO HighFlow Spec Sheet
HighFlow Spec Sheet
HighFlow Manual & Instruction
Notice
Sound and vibration measurements were taken according to applicable test standards under defined conditions; actual values may vary in real working environments. Accessories manufactured or sold by GRABO®, including third-party accessories, are engineered specifically for GRABO® tools and mounting systems and are not compatible with the DeWalt GRABO®.
