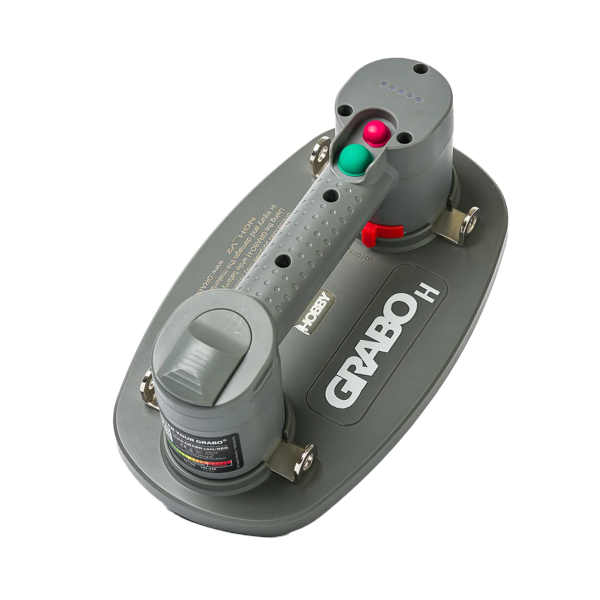

GRABO H V2
GRABO H V2 is a compact, DIY-friendly vacuum lifter for solo projects, home renovations, and weekend jobs where you don’t have an extra pair of hands. Weighing just 2.6 lbs (1.2 kg), its small ergonomic handle lets you operate it comfortably with one hand while providing a secure grip for lifting and installing glass, wood, metal, flooring, plastic, concrete, drywall, and even appliances. Simply press the green button to activate the lifter and move flat or textured materials with greater control. The GRABO® H can lift up to 165 lbs (75 kg), depending on material porosity and carrying method, making it suitable for tasks from hanging pictures to installing heavy flooring. Five clear LED indicators make battery status easy to monitor, while four built-in anchor points support external attachments.
The GRABO® H offers flexible battery options and can run on either six AA 1.5 V batteries or two 18650 3.7 V Li-ion batteries; batteries not included. Its 7 L/min pump reaches a maximum vacuum of 11.6 psi (0.8 bar / 80 kPa), and it’s rated for more than 100,000 ON-OFF cycles or over 800 hours of continuous operation. The compact unit measures 10.94 × 6.38 × 4.72 in (278 × 162 × 120 mm) and operates from 32°F–140°F (0°C–60°C). The GRABO® H is suitable for surfaces with peak/valley heights under 0.1 in (3 mm) and an arc of less than 5°. It is designed for all surface types and features a smaller battery system, no automatic stop, no display or pressure gauge, and no strap eyelets. A 1-year limited warranty applies.

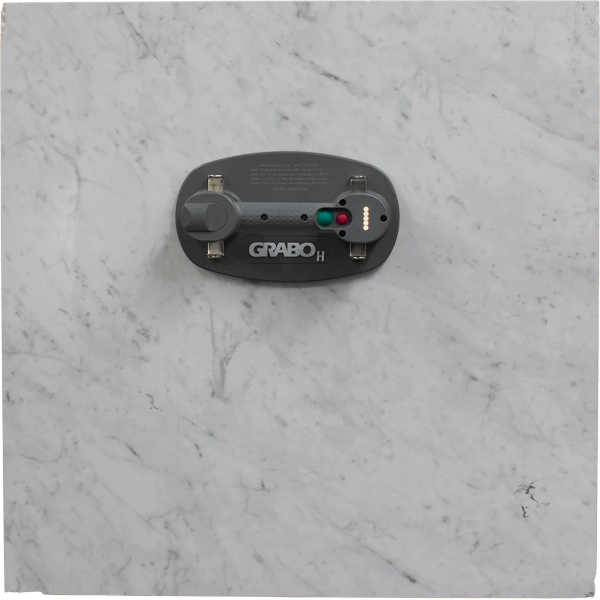

GRABO H V2 Grips Almost Any Surface
Main Features
- Compact 2.6 lbs (1.2 kg) one-handed vacuum lifter
- Designed for DIY projects, home renovations, and solo material handling
- Lifts up to 165 lbs (75 kg), depending on material and carrying method
- Suitable for glass, wood, metal, flooring, plastic, concrete, drywall, and appliances
- Ergonomic handle for comfortable one-handed operation
- Five LED battery-level indicators
- Four anchor points for external attachments
- Two battery options: six AA 1.5 V batteries or two 18650 3.7 V Li-ion batteries
- Batteries not included
- 7 L/min rated air flow
- Maximum vacuum rate: 11.6 psi (0.8 bar / 80 kPa)
- 340 ON-OFF cycles of 10 seconds on a full charge
- Up to 25 days of standby mode
- Pump service life: 100,000+ ON-OFF cycles / 800+ continuous hours
- Suitable for surfaces with peak/valley heights under 0.1 in (3 mm) and arc under 5°
- Working temperature: 32°F–140°F (0°C–60°C)
- No automatic stop
- No display or pressure gauge
- No strap eyelets
- 1-year limited warranty
Specifications
| Property | Value |
|---|---|
| Model / SKU | GRABO® H / NGH-V2 |
| Battery | 7.4 V Li-ion; 6 × AA 1.5 V or 2 × 18650 3.7 V |
| Batteries | Not included |
| Rated Power | 10 W |
| Charger Input Voltage | 100–240 VAC, 50/60 Hz |
| Running Cycles (Full Charge) | 340 ON-OFF cycles of 10 seconds |
| Standby Mode (Charge Hold) | 25 days |
| Pump Service Life | 100,000+ ON-OFF cycles / 800+ continuous hours |
| Rated Air Flow | 7 L/min |
| Maximum Vacuum Rate | 11.6 psi (0.8 bar / 80 kPa) |
| Maximum Lifting Capacity | 165 lbs (75 kg) |
| Dimensions (L × W × H) | 10.94 × 6.38 × 4.72 in / 278 × 162 × 120 mm |
| Net Weight with Battery | 2.6 lbs (1.2 kg) |
| Working Temperature | 32°F–140°F (0°C–60°C) |
| Applicable Surface Type | Peak/valley heights < 0.1 in (3 mm); arc < 5° |
| Warranty | 1-Year Limited Warranty |
Lifting Capacity
| Material | Perpendicular Hold | Parallel Hold |
|---|---|---|
| Glass | 165 lbs (75 kg) | 110 lbs (50 kg) |
| Ceramic Tiles | 143 lbs (65 kg) | 99 lbs (45 kg) |
| Metal | 138 lbs (63 kg) | 99 lbs (45 kg) |
| Plastic | 132 lbs (60 kg) | 61 lbs (28 kg) |
| Wood | 143 lbs (65 kg) | 77 lbs (35 kg) |
| Rough Slate | 143 lbs (65 kg) | 77 lbs (35 kg) |
| Rough Concrete | 81 lbs (37 kg) | 81 lbs (37 kg) |
| Drywall | 33 lbs (15 kg) | 33 lbs (15 kg) |
GRABO H V2 Video
GRABO H V2 Introduction
Product Related Documents
GRABO H V2 Spec Sheet
H V2 Spec Sheet
H V2 Manual Book
Notice
Because GRABO® creates high pressure, do not attach the lifter to glass thinner than 6 mm, as it can cause damage. Always consider material porosity and carrying method when determining safe lifting capacity. GRABO® H is designed for all surface types; compared with other GRABO® models, it uses a smaller battery and does not include automatic stop, a display or pressure gauge, or strap eyelets.
