GRABO Vacuum Lifters: 7 Steps to Choose the Right Model

Choose GRABO Vacuum Lifters Around the Material You Handle

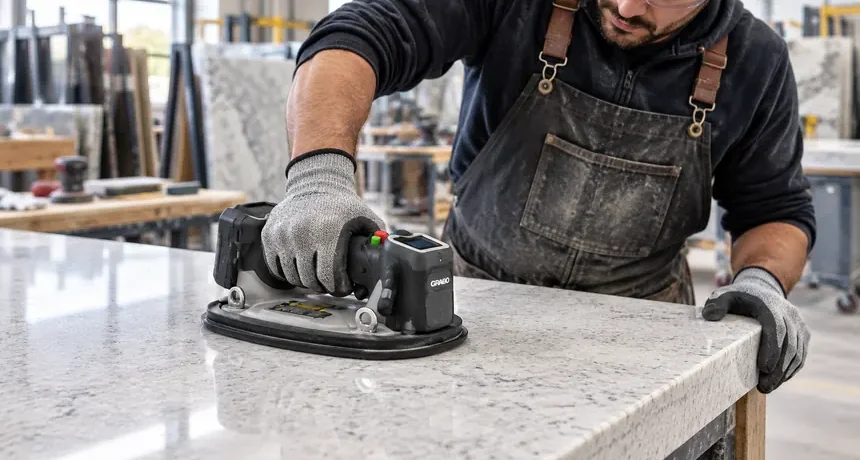

GRABO vacuum lifters give fabricators and installers a powered way to grip stone, tile, glass and other compatible materials. The useful starting question is what you need to move: a polished countertop section, a smooth glass panel and a porous concrete paver can call for different tools.

This guide explains seven buying decisions, compares six models in our catalog and connects you with matching product pages. Start with the complete GRABO collection at USA Granite Tools to explore lifters, installation tools and replacement parts together.

1. Start with the Material and Surface

Describe the contact surface before choosing a lifter. Record the material, finish, dimensions and weight, along with whether the grip area is smooth, textured or porous. A product labeled for stone does not automatically suit every stone finish or shape.

As a buying starting point, compare the models below with the actual surface you handle. Final suitability depends on the specific tool, seal, load and manufacturer’s instructions.

Do not choose only by the largest lifting number in an advertisement. A model that suits your surface and workflow is a better starting point than one selected by a headline capacity alone.

Turn a Material Description into a Buying Brief

“We lift stone” leaves several important questions unanswered. A useful buying brief identifies the actual pieces: for example, polished countertop sections, textured outdoor pavers or narrow tile planks. Include the dimensions and weight of a typical piece, then note the largest or most awkward item the crew expects to handle. Describe both the gripping surface and the direction in which the material will move.

Photographs of the contact area can help explain a finish or shape, but they do not replace the model’s application requirements. Include any surface treatment, raised texture, joints or limited flat areas that could affect the seal. If the work varies, list the applications separately. That makes it easier to compare GRABO vacuum lifters without assuming one configuration will cover every task.

2. Compare GRABO Vacuum Lifters

The differences between these GRABO vacuum lifters include pump design, pressure indication and power supply. Use this comparison to create a shortlist, then open the product listing for the selected configuration.

Pro Brushless vs. Pro Lifter 20 vs. V2

Pro Brushless adds a brushless pump and adjustable vacuum control on GRABO’s 20V platform. Pro Lifter 20 combines a digital display with its 14.8V removable battery system. V2 uses an analog gauge. Those distinctions matter when your crew already owns batteries or prefers a particular way of monitoring the tool.

Manufacturer references: Pro Brushless specifications, Pro Lifter 20 specifications and V2 specifications.

When to Look at HighFlow or OTTOVAC

GRABO positions HighFlow for highly porous materials, including dry-cast pavers. Its plate and seal configuration are part of the selection. The OTTOVAC family is intended for smooth, non-porous glass and ceramic tile; OTTOVAC Digital adds a digital readout.

These are different application choices. For example, a crew laying porous outdoor pavers should investigate a different setup from a crew primarily positioning smooth glass.

How to Shortlist the Six Models

For a shop comparing Pro Brushless, Pro Lifter 20 and V2, first establish that the selected tool and seal suit the material. Then compare the controls your operators will use, the battery platform already in the shop and the items supplied with the kit. A digital display and an analog gauge offer different ways to read pressure; the choice should fit the crew’s operating procedures and training.

For a paving contractor, surface porosity moves higher on the list. HighFlow deserves a separate review because its plate and seal choices are part of the configuration. For smooth glass or ceramic tile, compare OTTOVAC and OTTOVAC Digital against the panel dimensions and the intended handling task. This approach narrows the catalog by application before you compare package prices.

3. Check the Working Load and Handling Method

Read the working load limit for the exact model, material and lifting orientation. Maximum holding force and an approved working load are different figures. Surface condition and the way the load is handled also affect which configuration is appropriate.

A long panel may need support against bending as well as suitable gripping points. Plan how the material will move from storage to its final position, including doorways, changes of direction and placement. A handheld lifter’s rating alone does not establish that an entire panel-handling arrangement is suitable.

Use the manufacturer’s current manual for setup, inspection and operation. Do not extrapolate capacity by simply adding the advertised ratings of multiple tools. If your application is unclear, confirm the required arrangement before ordering.

Read a Capacity Claim in Context

When two listings show different lifting figures, check what each number describes before treating it as a direct comparison. Look for the model, contact material, orientation and configuration associated with the rating. A headline figure without those details is not enough to choose equipment for a particular piece.

Write down the actual load and the required handling method, then compare them with the manufacturer’s documented working limits. Include the support arrangement for long or delicate material. If the proposed job falls outside the information supplied for the model, seek clarification rather than estimating a new rating from a similar tool. The buying decision should be based on the complete task, including pickup, movement and placement.

4. Choose the Battery Platform and Kit

Read the selected option as carefully as the model name. A tool-only package, a kit with a battery and charger, and a handling attachment are different purchases. The same product page may offer more than one configuration.

Pro Lifter 20 and V2 use a 14.8V system, while Pro Brushless uses GRABO’s 20V platform in the USA. Check the listed compatibility of every battery and charger rather than treating all GRABO power accessories as interchangeable.

• Starting a new setup? Check whether the selected package includes the tool, seal, battery, charger and case.
• Expanding an existing setup? Record the exact tool and battery model before choosing a tool-only option.
• Ordering for a crew? Plan charging and spare-battery needs around the actual work schedule and approved equipment.

Browse GRABO batteries, chargers and replacement parts alongside the lifter you select. Product listings show the current options and ordering details.

Compare the Complete Cost of Each Kit

Make a short list of everything the first job requires: the lifter, an appropriate seal, a compatible battery, the correct charger and any approved attachment. Mark each item as included, already owned or still needed. This keeps a tool-only price from being compared with the price of a more complete package.

For GRABO vacuum lifters added to an existing fleet, check the actual battery labels before assuming the new model shares the old system. Record charger compatibility separately. Also review storage and transport needs, including whether the selected package supplies a case. A clear kit comparison can prevent duplicate purchases and highlight missing components before the order is placed.

5. Match Accessories to the Job

Choose attachments after deciding which lifter fits your application. An accessory name or a similar mounting shape does not confirm compatibility across Pro, Pro Brushless, HighFlow and OTTOVAC.

The GRABO Panel Pro is a panel-handling system to evaluate for larger-format work. Check whether the selected option is the system alone or a kit with lifters. ERGUO S1, ERGUO S2 and ERGUO T provide different handle arrangements; review their mounting requirements and intended uses.

For installation work, the collection also includes seam setters and attachment plates. Confirm the tool generation, required hardware and components supplied before combining products into a single setup.

Choose Handles and Panel Systems as a Complete Arrangement

Start with the movement you want the accessory to support. Positioning a panel, changing the operator’s grip and handling a large-format piece are different requirements. Compare the ERGUO handle options, attachment plate and Panel Pro listing with that specific task, then verify the supported lifter models and supplied hardware.

Review the selected variation carefully. A pictured lifter or battery may illustrate how a system is used without establishing that it is included in every option. Keep the product description, selected kit and included-items list together when comparing configurations. If several accessories are involved, confirm the complete arrangement instead of checking each item only in isolation.

6. Plan for Seals and Replacement Parts

Keep the exact model and part number with your maintenance records. A replacement seal should match the tool and its intended surface application; similar appearance is not enough to establish a fit.

Our parts collection includes the GRABO Foam Rubber Seal, a separate Pro Brushless Foam Rubber Seal, RockSeal and Slender Seal. HighFlow also has its own suction plates, seals and filter options.

Follow the equipment instructions for checking seals, keeping contact surfaces clean and replacing worn components. If a tool does not achieve or maintain the required vacuum, stop and resolve the cause before continuing the lift. Choose spare parts by their listed compatibility.

Keep a Simple Parts Record

Create a record for each tool with its exact model name, the installed seal and the compatible replacement part numbers. Add the battery and charger models, plus any attachments assigned to that tool. This is especially useful when a crew owns more than one generation of GRABO vacuum lifters.

When ordering a replacement, compare that record with the current product listing and the manufacturer’s instructions. Check whether the part is sold individually or as a set, and whether any additional component is required. Keep inspection and replacement decisions tied to the equipment instructions rather than using a universal interval for every job. Material conditions and usage vary, so the record should support the tool’s prescribed maintenance process.

7. Build Your GRABO Order

Before adding GRABO vacuum lifters and accessories to your cart, put the following details together:

1. Material: type, finish, thickness, dimensions and weight.
2. Task: lifting orientation, transport route, placement and support needs.
3. Tool: exact model and configuration you want to purchase.
4. Power: compatible battery and charger, plus the contents of the selected kit.
5. Attachments: approved handles, panel systems, seals and mounting hardware.
6. Replacements: model-specific consumables you want available for maintenance.

Compare the complete package, including necessary accessories, instead of comparing the lifter price alone. For help identifying a listed part, send your tool model and part number to info@usagranitetools.com. A clear photograph can support identification when paired with those details.

Watch GRABO Tools and Accessories

These demonstrations introduce products covered in the guide. Use the linked product pages to review specifications and included components for your chosen option.
