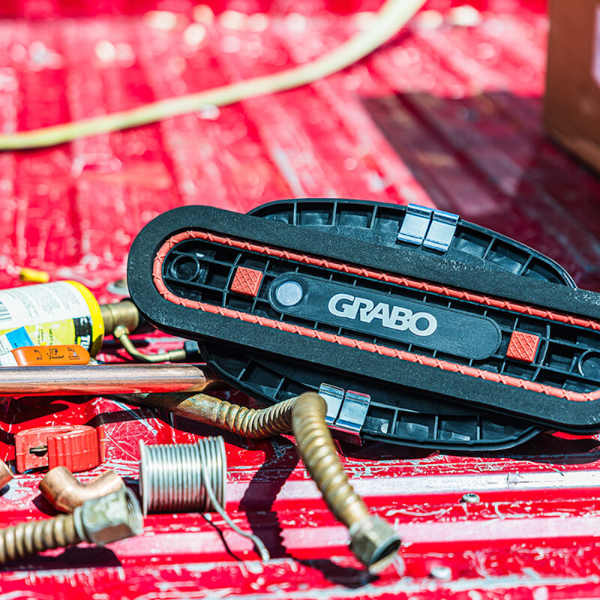

GRABO Slender Seal

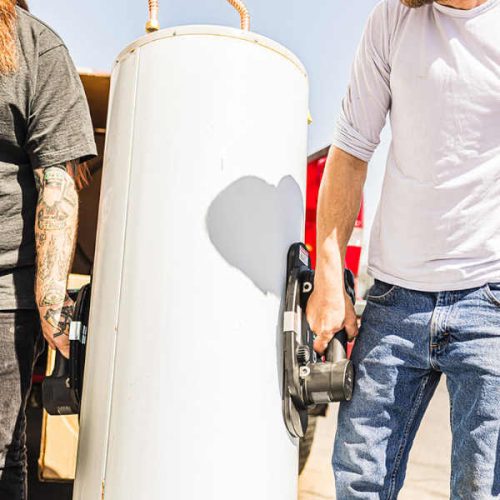

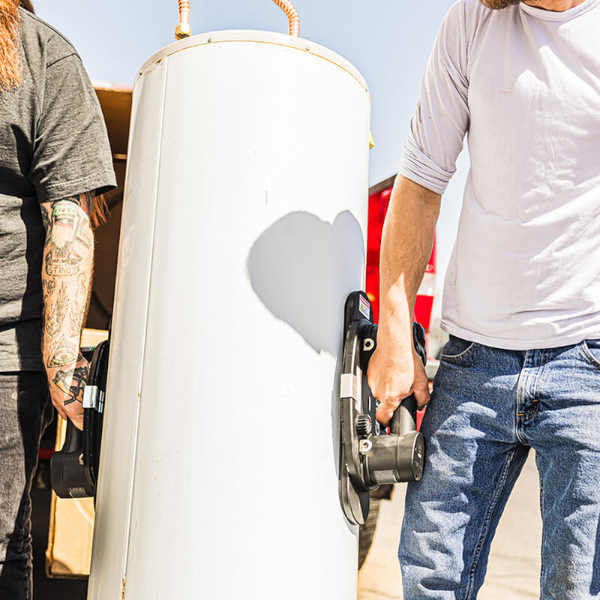

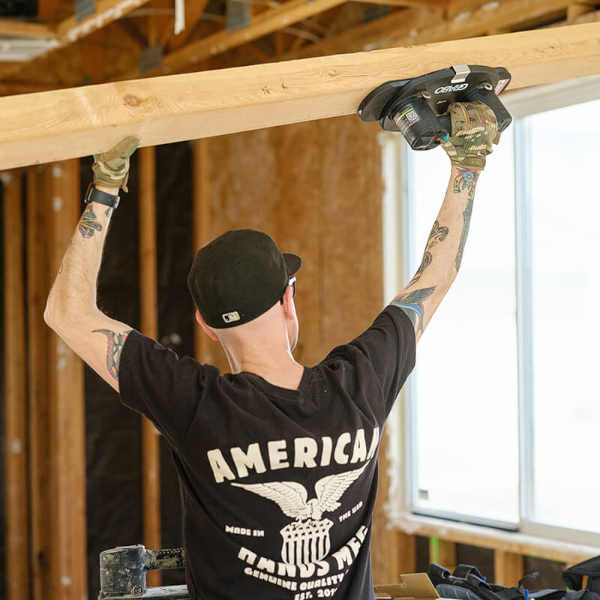

GRABO Slender Seal expands the capability of compatible GRABO® tools when lifting long, narrow, curved, or uniquely shaped materials that are difficult to handle with a standard seal. Its longer, slimmer 4-inch-wide profile is designed for plank tiles, wooden beams, pipes, cut-to-size countertops, and other narrow materials, helping maintain strong suction while providing improved balance and control on smaller or curved surfaces. Built for durability and professional use, this combined seal on a plastic frame offers a practical upgrade for contractors and DIY users who need reliable performance when handling narrow materials. The stated maximum lifting capacity is 132 lbs (60 kg).
The Slender Seal features a black SBR rubber foam sponge seal combined with a red full silicone foam seal and is compatible with all GRABO® models except the GRABO® H. Its overall dimensions are 16.2 × 6.9 × 1.24 in (411 × 175 × 31.5 mm), with a seal dimension of 371 × 65 mm. The black foam section provides approximately 900 compression cycles, ≤20% water absorption, and ≤20% shrinkage after 24 hours at 160°F (70°C), while the red silicone foam section provides a full seal. Lifting capacity varies by carrying axis—Perpendicular Z, Parallel Y, or Parallel X—and the material being moved, so users should stay within GRABO® safety and weight guidelines.
Main Features
- Long, narrow profile for difficult-to-handle materials
- 4-inch-wide design for narrow and uniquely shaped surfaces
- Ideal for plank tiles, wooden beams, pipes, and cut-to-size countertops
- Helps maintain strong suction on smaller or curved surfaces
- Improves balance and control during lifting

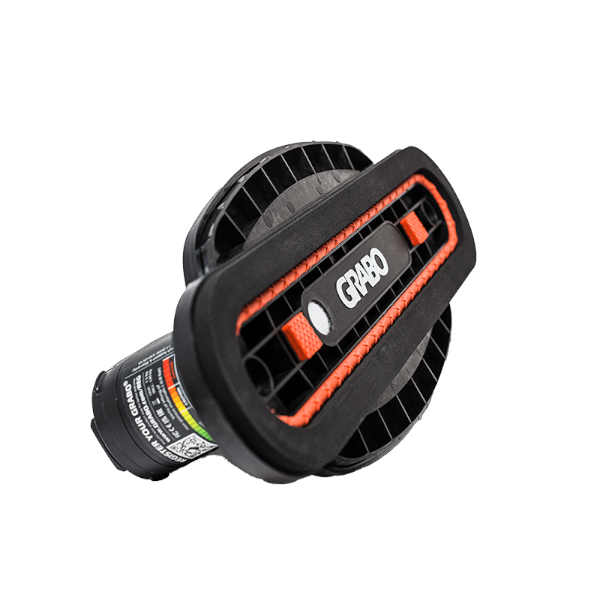

- Combined seal mounted on a plastic frame
- Black SBR rubber foam sponge seal
- Red full silicone foam seal
- Approximately 900 compression cycles
- ≤20% water absorption
- ≤20% shrinkage at 160°F (70°C) for 24 hours
- Compatible with all GRABO® models except GRABO® H
- Recommended storage temperature: Room temperature
Specifications
| Property | Value |
|---|---|
| Overall Dimensions (L × W × H) | 16.2 × 6.9 × 1.24 in (411 × 175 × 31.5 mm) |
| Seal Dimension | 371 × 65 mm |
| Features | Combined seal on plastic frame — slender profile |
| Compatibility | All GRABO® models except the GRABO® H |
| Recommended Storage Temperature | Room temperature |
| Black Foam Seal Material | SBR rubber foam sponge |
| Black Foam Seal Color | Black |
| Black Foam Seal Density | 10.6 lb/cft (170 kg/m³) |
| Black Foam Seal Hardness, Shore C | ~10 ± 2 |
| Black Foam Seal Tearing Pressure | 1800 psi (126 kg/cm²) |
| Black Foam Seal Compression to 25% | 8.5 psi (6000 kg/m²) |
| Black Foam Seal Lifetime | ~900 compressions |
| Black Foam Seal Water Absorption | =20% |
| Black Foam Seal Shrinkage at 160°F (70°C) for 24 hrs | =20% |
| Red Seal Material | Silicon Foam |
| Red Seal Density | 40.5 lb/cft (650 kg/m³) |
| Red Seal Hardness, Shore C | 55 ± 5 |
| Red Seal Type | Full seal |
| Stated Maximum Lifting Capacity | 132 lbs (60 kg) |
Lifting Capacity
| Material | Perpendicular Z Maximum | Perpendicular Z Safe (50%) | Parallel Y Maximum | Parallel Y Safe (50%) | Parallel X Maximum | Parallel X Safe (50%) |
|---|---|---|---|---|---|---|
| Glass | 264 lbs (120 kg) | 132 lbs (60 kg) | 55 lbs (25 kg) | — | 220 lbs (100 kg) | 110 lbs (50 kg) |
| Metal | 242 lbs (110 kg) | 121 lbs (55 kg) | — | — | 187 lbs (85 kg) | 94 lbs (43 kg) |
| Wood | 187 lbs (85 kg) | 94 lbs (43 kg) | 33 lbs (15 kg) | — | 176 lbs (80 kg) | 88 lbs (40 kg) |
| Rough Concrete | 264 lbs (120 kg) | 132 lbs (60 kg) | — | — | — | — |
GRABO Slender Seal Video
Introduction to the GRABO Slender Seal
Product Related Documents
GRABO Slender Seal Spec Sheet
GRABO Slender Seal Spec Sheet
GRABO Slender Seal Manual Book
Notice
Accessories manufactured or sold by GRABO®, including third-party accessories, are engineered specifically for GRABO® tools and mounting systems. They are not compatible with the DeWalt GRABO®. Stay within GRABO® safety and weight guidelines when selecting materials and carrying methods.
