GRABO V2 1 Battery 1 Seal
GRABO V2 1 Battery 1 Seal is the classic GRABO® vacuum lifter, upgraded for tougher jobs, combining the original GRABO® motor, analog pressure gauge, 14.8 V battery, and trusted foam seal with the PRO model’s ergonomic handle for improved all-day comfort. A new pressure-release button provides smoother, more controlled material release, while five LED battery indicators make remaining runtime easy to check at a glance. Full rubber covers protect every button against dust, debris, and water on the jobsite. The classic analog pressure gauge stays in place for quick vacuum monitoring, letting users confirm the seal is secure, while the 14.8 V 2600 mAh Li-ion battery provides up to 1.5 hours of continuous operation, about 900 ON-OFF cycles, or up to 30 days of standby charge hold.

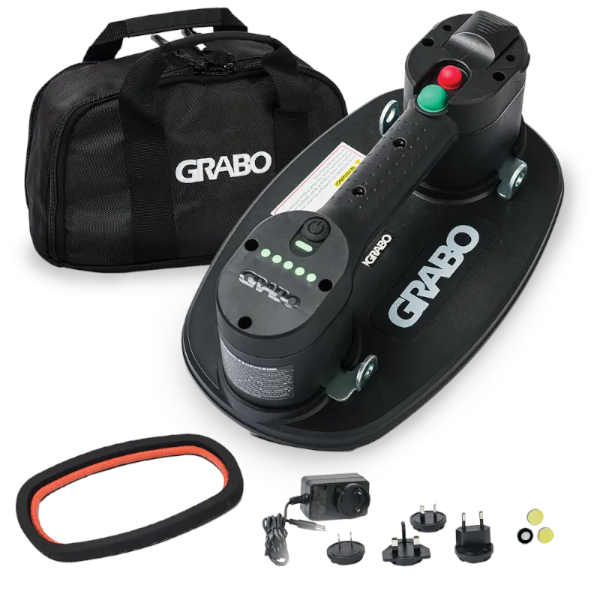

The GRABO® V2 grips glass, ceramic tile, metal, plastic, wood, rough slate, rough concrete, and drywall on textured surfaces with peak/valley heights under 0.1 in (3 mm), and can be used in perpendicular or parallel hold for awkward materials up to a maximum lift of 375 lbs (170 kg). The complete kit includes the GRABO® V2 tool, one foam seal, a multi-socket charger, and a padded carry case for convenient transport and organized jobsite storage. Its 20 L/min pump delivers a maximum vacuum of 11.6 PSI (0.8 bar / 80 kPa), while the redesigned ergonomic PRO handle, sealed rubber buttons, and controlled pressure-release system add comfort and control during demanding lifting applications.
Main Features
- Original GRABO® motor and analog pressure gauge
- Ergonomic PRO-model handle for improved all-day comfort
- New controlled pressure-release button for smoother material release
- Five LED battery-level indicators
- Full rubber button covers protect against dust, debris, and water
- 14.8 VDC 2600 mAh Li-ion battery
- Up to 1.5 hours of continuous operation
- Approximately 900 ON-OFF cycles per full charge
- Up to 30 days of standby charge hold
- 0.7 CFM (20 L/min) rated airflow
- Maximum vacuum rate: 11.6 PSI (0.8 bar / 80 kPa)
- Pump service life: 100,000+ ON-OFF cycles / 800+ continuous hours
- Suitable for glass, ceramic tile, metal, plastic, wood, rough slate, rough concrete, and drywall
- Suitable for textured surfaces with peak/valley heights under 0.1 in (3 mm)
- Maximum lift: 375 lbs (170 kg)
- Official WLL: 265 lbs (120 kg) on non-porous surfaces
- Complete kit includes tool, foam seal, multi-socket charger, and padded carry case
Specifications
| Property | Value |
|---|---|
| Model | GRABO® V2 |
| SKU | GV2-1B-FB-1S |
| Battery | 14.8 VDC 2600 mAh Li-ion |
| Rated Power | 16 W |
| Charger Input Voltage | 100–240 VAC, 50/60 Hz |
| Battery Charging Time | ~2 hours |
| Non-Stop Running Time | Up to 1.5 hours |
| Running Cycles | ~900 ON-OFF cycles (10 seconds) |
| Standby Mode | Up to 30 days |
| Battery Indicator | 5 LED level indicators |
| Length | 11.77 in (299 mm) |
| Width | 7.22 in (184 mm) |
| Height | 4.79 in (122 mm) |
| Weight with Battery | 3.3 lbs (1.54 kg) |
| Working Load Limit (WLL) | 265 lbs (120 kg) |
| Maximum Lift | 375 lbs (170 kg) |
| Rated Air Flow | 0.7 CFM (20 L/min) |
| Maximum Vacuum Rate | 11.6 PSI (0.8 bar / 80 kPa) |
| Pressure Indicator | Analog pressure gauge |
| Pump Service Life | 100,000+ ON-OFF cycles / 800+ continuous hours |
| Working Temperature | 32°F–140°F (0°C–60°C) |
| Applicable Surface Type | Peak/valley height < 0.1 in (3 mm) |
| Additional Features | Ergonomic PRO handle, sealed rubber buttons, controlled pressure release |
| Kit Contents | GRABO® V2 tool, foam seal, multi-socket charger, padded carry case |
Lifting Capacity
| Material | Perpendicular Hold | Parallel Hold |
|---|---|---|
| Glass | 170 kg / 375 lbs | 120 kg / 265 lbs |
| Ceramic Tile | 170 kg / 375 lbs | 120 kg / 265 lbs |
| Metal | 110 kg / 242 lbs | 110 kg / 242 lbs |
| Plastic | 100 kg / 220 lbs | 100 kg / 220 lbs |
| Wood | 100 kg / 220 lbs | 65 kg / 143 lbs |
| Rough Slate | 80 kg / 176 lbs | 80 kg / 176 lbs |
| Rough Concrete | 80 kg / 176 lbs | 80 kg / 176 lbs |
| Drywall | 75 kg / 165 lbs | 65 kg / 143 lbs |
GRABO V2 1 Battery 1 Seal Video
THE GRABO V2 Introduction
GRABO V2 1 Battery 1 Seal Spec Sheet
V2 1 Battery 1 Seal Spec Sheet
Notice
GRABO® is not designed or intended for climbing or supporting a person’s weight. Do not attach to glass thinner than 6 mm, as high vacuum pressure can cause damage. Local regulations require a 2:1 safety margin, so the official Working Load Limit (WLL) is 265 lbs (120 kg) on non-porous surfaces. Never exceed the stated safe lifting values.
