Aardwolf SPVL100 Small Pneumatic Vacuum Lifter

$2,624.00

The SPVL-100 is a small compact design vacuum lifter, which allows operators to adapt to various applications. The vacuum generator has no moving parts and therefore no lubrication is required.

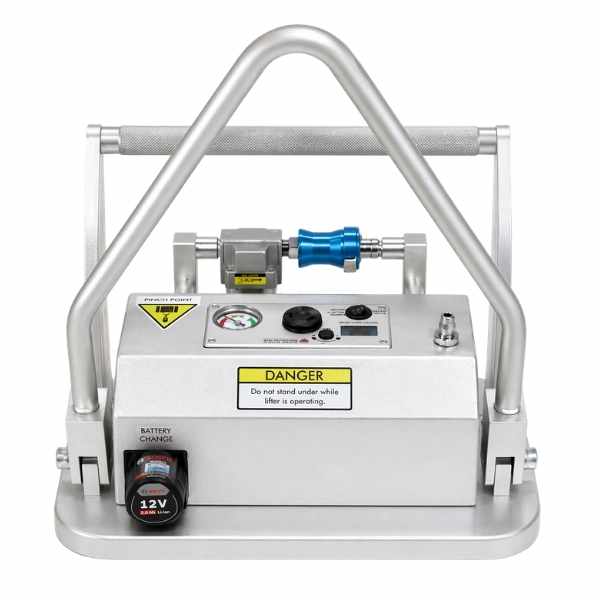

Aardwolf SPVL100 Small Pneumatic Vacuum Lifter

The Aardwolf SPVL100 Small Pneumatic Vacuum Lifter is a small compact design vacuum lifter, which allows operators to adapt to various applications.  The low weight and versatility make heavy loads easy to handle in vertical and horizontal positions, so only one person is required to handle loads.  Because the load is supported by the lifting device and not by the user, this also reduces the physical stress and strain on your employees.  The lifter is powered by a venturi vacuum generator, which needs a source of compressed air in order to function but requires no electricity.  The vacuum generator has no moving parts and therefore no lubrication is required.

Aardwolf products are built with the best quality standards, which has gained the brand a very high reputation, and a favorite among our customer base. You can always rely on their products, as they are probably the best option in the market today. You might also want to take a look at the diverse line of Aardwolf Stone Lifters, where you will probably find the best solution for your Granite Shop.

Aardwolf SPVL100 Small Pneumatic Vacuum Lifter Main Features

Among the features of this wonderful Small Pneumatic Vacuum Lifter, we find:

  • Attach and release materials with an ON/OFF slide valve.
  • Clip-in battery operated audio alarm and energy saver.
  • Work pieces can be moved vertically and horizontally.
  • Highest possible safety with both visual and audio alarms.
  • Integrated energy saver switch.
  • Operating pressure 4/6 Bar.
  • All aluminium construction including suction pad.
  • Vacuum reservoir 1L (61.0 cubic inches).
  • Standard gaskets made of rubberized fabric and mousse suitable for smooth, flamed and bush-hammered surfaces.

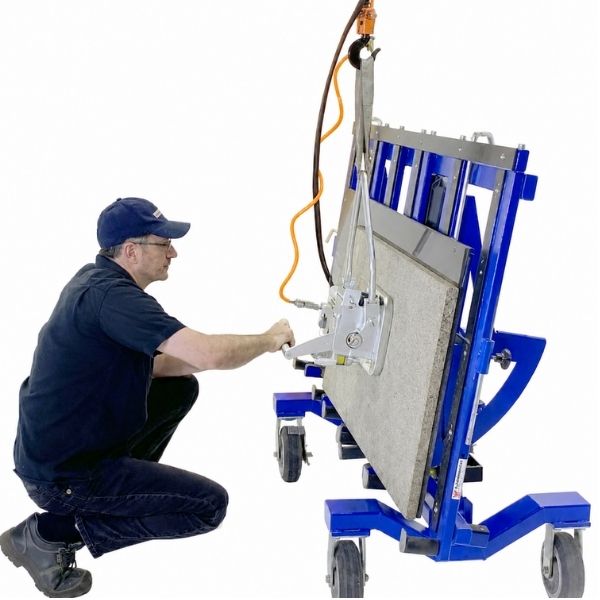

Watch the Lifter in action

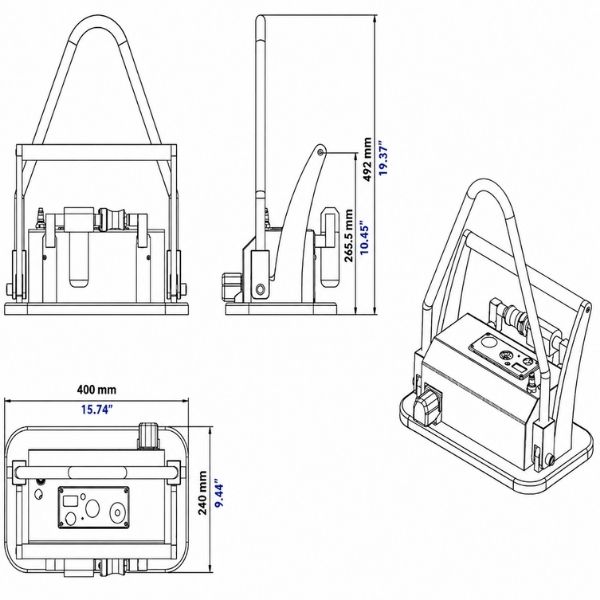

Small Pneumatic Vacuum Lifter Technical Specifications:

FeatureMetric (mm-kg)Imperial (inch-lb)
Working Load Limit120 kg264.55 lb
Weight11.5 kg25.35 lb
Weight25.55 lbs
Dimensions30 × 30 × 40 in
