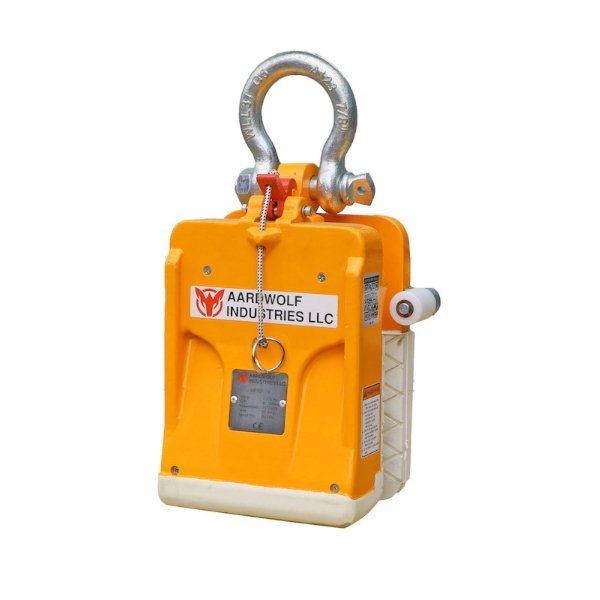

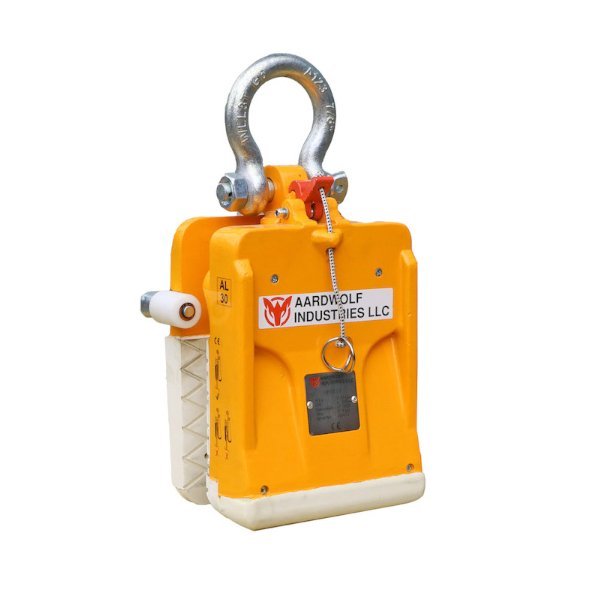

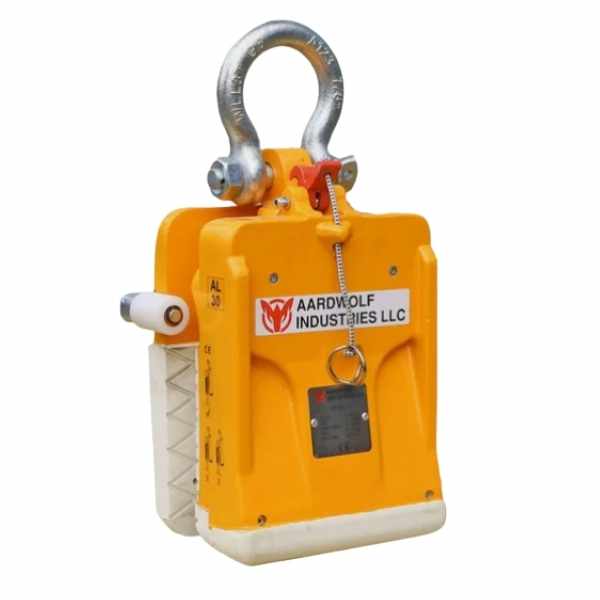

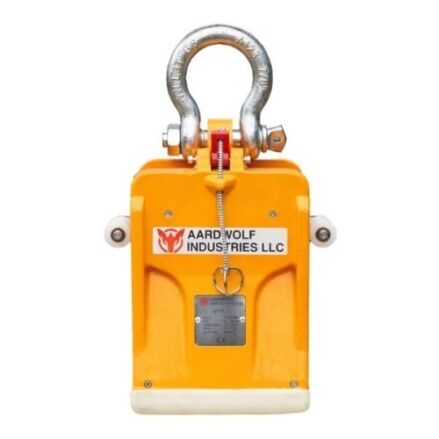

Aardwolf Slab Lifter with Rollers AL30R
The Aardwolf Slab Lifter with Rollers AL30R builds on the legacy of the original slab lifting clamps, a patented design by the company’s founder, James Edmund Corbett. This updated version now features two support rollers, which protect the top edge of the slabs during lifting while allowing for easy manual centering by hand. Additionally, the lifter includes an innovative auto-lock and unlock mechanism, another breakthrough from Corbett. It ensures that slabs are securely gripped during pickup and automatically released when setting them down. These enhancements make the Aardwolf Slab Lifter with Rollers more efficient, safer, and easier to operate, providing a reliable solution for handling stone slabs.
Slab Lifter with Rollers AL30R Main Features
Among the features of this amazing Lifter, we find:
- Compact Design: The Aardwolf Slab Lifting Clamps are designed compactly to retrieve closely packed stone slabs from racks and containers. They can effortlessly manage the lifting of shorter slabs alongside taller ones, eliminating the challenges associated with scissor clamps.
- Versatility: These clamps are well-suited for various construction tasks. Their clamping mechanism at the front of the slab allows for the secure placement of panels close to walls.
- Safety: Engaging and gripping the slab requires minimal movement, typically well below the overbalance angle, ensuring operator safety.
- Secure Grip: The Aardwolf clamps provide a secure grip on marble and granite slabs, boasting a force-multiplying factor of approximately 3 to 1.

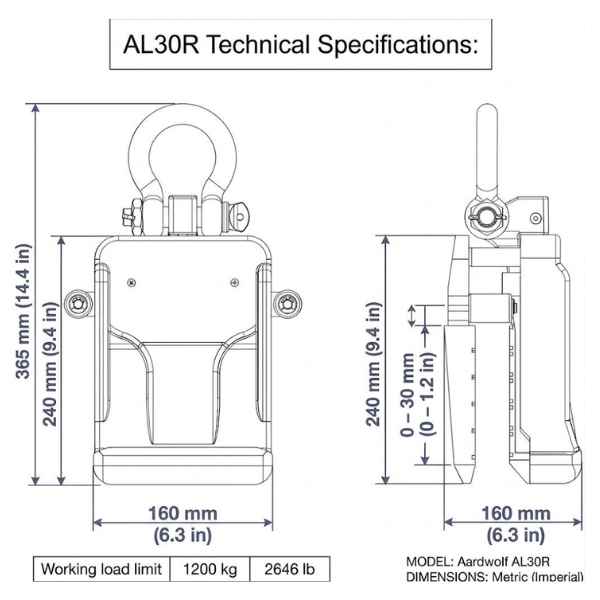

AL30R Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Grip range | 0 – 30 mm | 0 – 1.2″ |
| Working load limit | 1200 kg | 2646 lb |
| Net weight | 17.8 kg | 39.2 lb |
| Gross weight | 18.4 kg | 40.5 lb |
| Packaging dimensions | L.365xW.160xH.240 mm | 14.4″x6.3″x9.4″ |
