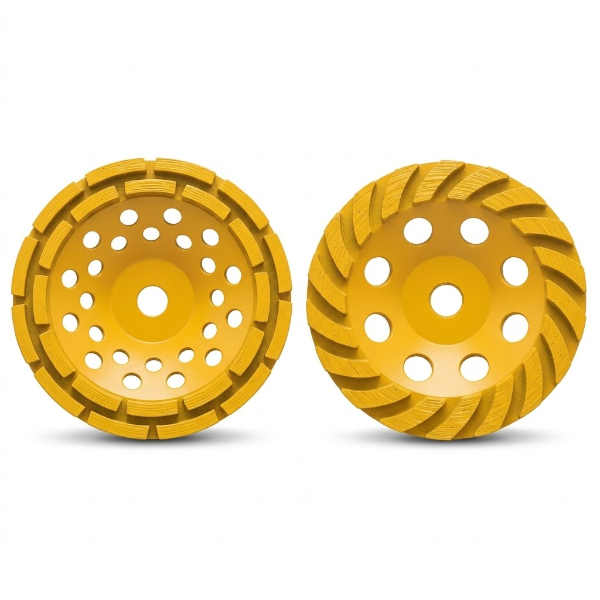

DeWalt Diamond Cup Wheels
DeWalt Diamond Cup Wheels are turbo-style diamond grinding wheels designed for aggressive dry grinding, material removal, and surface smoothing applications. Available in 5-inch and 7-inch diameters, these cup wheels feature high diamond concentration for long life and aggressive removal performance, along with large grinding segments and heat-treated steel bodies that increase durability and wheel life. The double-rim design provides longer service life and more aggressive material removal, making these wheels suitable for smoothing uneven surfaces and dry grinding concrete and other masonry materials.

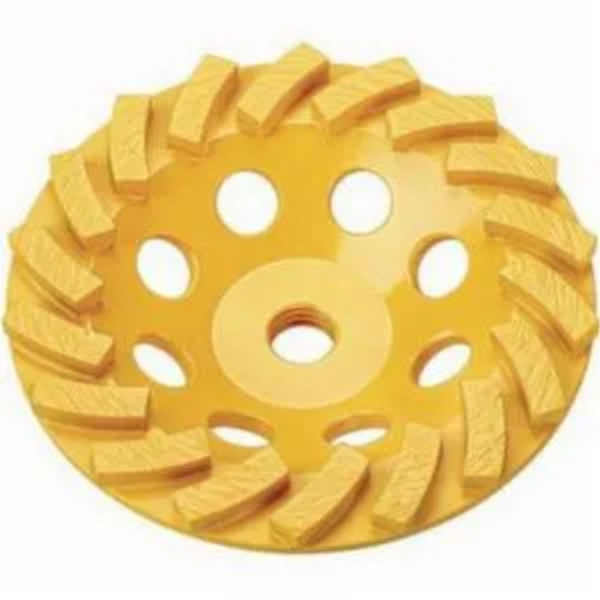

Both versions feature a 5/8-inch arbor and a diamond abrasive construction, with a rated speed of 12,200 RPM for the 5-inch wheel and 8,600 RPM for the 7-inch wheel. The 5-inch version is listed with heat-treated steel as its applicable material, while the 7-inch version is listed for concrete/masonry. Each wheel has one grinding segment and a cup wheel design, with a listed weight of 1.000 lb.
Main Features
- Turbo cup wheel design
- High diamond concentration for long life and aggressive material removal
- Large grinding segments for effective material removal
- Heat-treated steel bodies for increased durability and wheel life
- Double rim for longer life and more aggressive grinding
- Designed for dry grinding applications
- Suitable for smoothing uneven surfaces
- 5/8-inch arbor
- Diamond abrasive
- Available in 5-inch and 7-inch diameters
- 1-segment configuration
- Cup wheel design
Specifications
| Property | 5-Inch Wheel | 7-Inch Wheel |
|---|---|---|
| Product Type | Turbo Cup Wheel | Turbo Cup Wheel |
| Diameter | 5 in | 7 in |
| Applicable Materials | Heat Treated Steel | Concrete/Masonry |
| Speed Rating | 12,200 RPM | 8,600 RPM |
| Abrasive Material | Diamond | Diamond |
| Arbor Size | 5/8 in | 5/8 in |
| Number of Segments | 1.0 | 1.0 |
| Wheel Type | Cup | Cup |
| Weight | 1.000 lb | 1.000 lb |
| Application | Dry grinding of concrete and other masonry materials; smoothing uneven surfaces; double rim for longer life and more aggressive material removal | Dry grinding of concrete and other masonry materials; smoothing uneven surfaces; double rim for longer life and more aggressive material removal |
| Construction | Large grinding segments with heat-treated steel bodies | Large grinding segments with heat-treated steel bodies |
Available Presentations
| Presentation | Diameter | Applicable Materials | Speed Rating | Abrasive Material | Arbor Size | Segments | Wheel Type | Weight |
|---|---|---|---|---|---|---|---|---|
| 5-Inch | 5 in | Heat Treated Steel | 12,200 RPM | Diamond | 5/8 in | 1.0 | Cup | 1.000 lb |
| 7-Inch | 7 in | Concrete/Masonry | 8,600 RPM | Diamond | 5/8 in | 1.0 | Cup | 1.000 lb |
