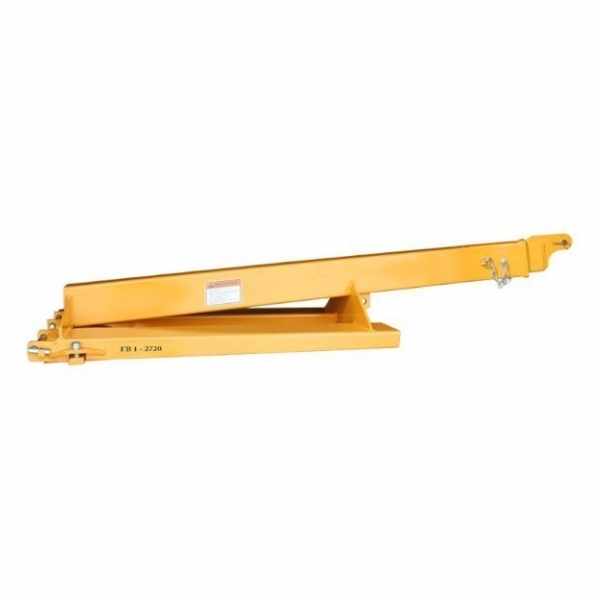

Aardwolf Forklift Boom FB1-2720

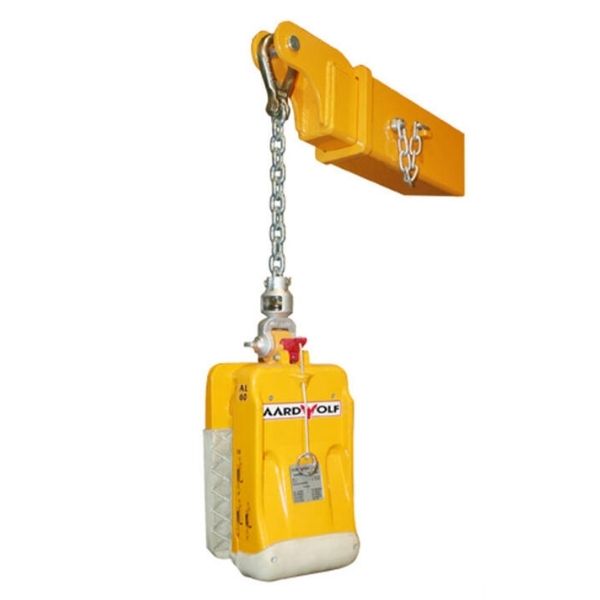

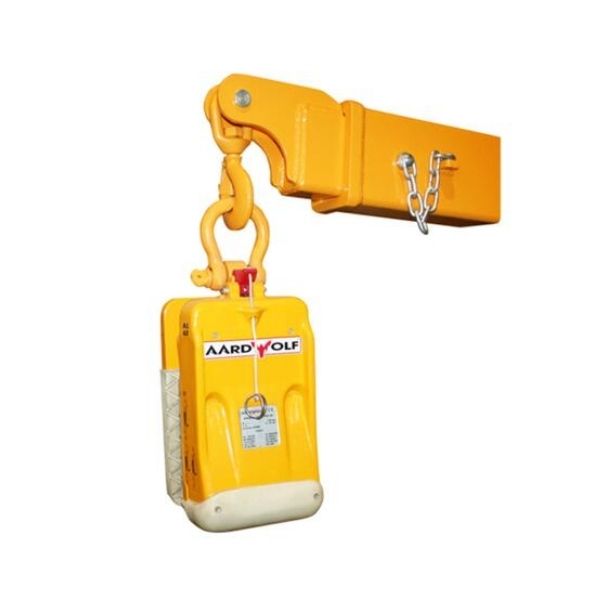

Aardwolf Forklift Boom FB1-2720 is a telescoping two section rectangular tube steel boom for use on 2 ton and 2.5-ton forklift trucks. It offers versatility with maximum visibility for the driver. All Forklift Booms are made from high-grade Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability, and safety. The Forklift Booms complement the patented range of Aardwolf lifting clamps. This is the smaller of forklift booms Ardwolf offers and has the lifting capacity over 3,000 pounds and over a 1,000 pounds fully extended.
FB1-2720 main Features
Among the features of the FB1-2720, we find:
- The boom extension is designed so it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
- Maximum load capacity, fully retracted – 3307 LBS, fully extended – 1102 LBS.

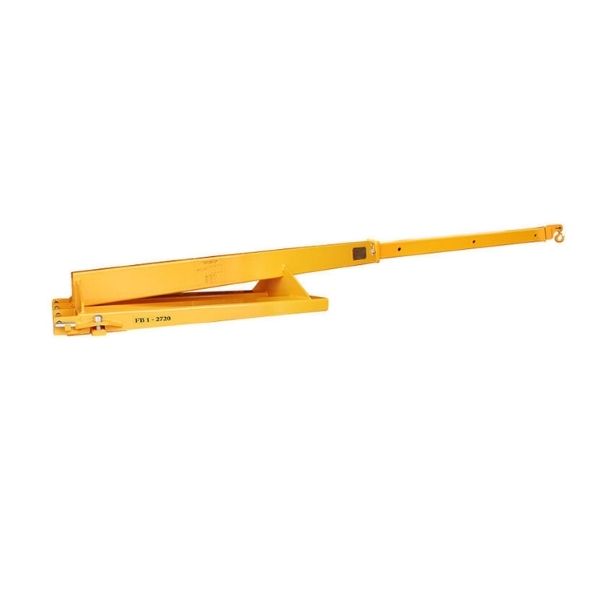

- Manually telescopes from 63.4″ to 107″ in 2 increments of 27″
NOTE: Boom lift capacities depends completely on the capacity of forklift being used

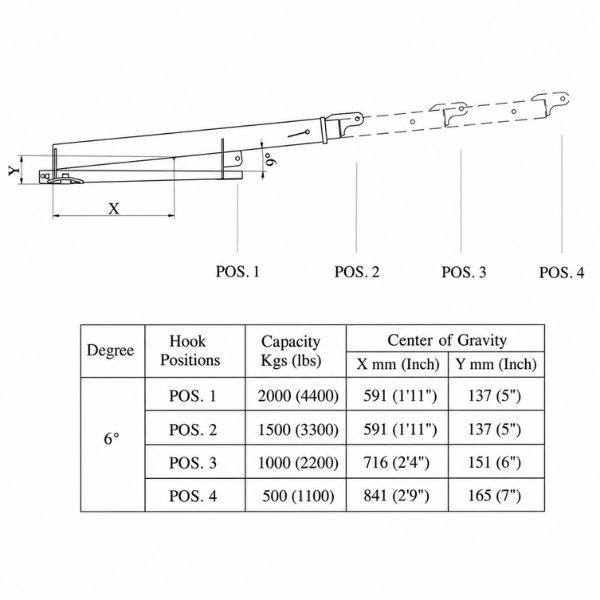

Aardwolf Forklift Boom Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Slip onto forks designed with fork pockets | 150×58 | 5.9”x2.3” |
| Fork pockets from center to center | 366 | 14.4” |
| Manually telescopes | 1610 – 2724 | 63.4”x107” |
| Increment | 557 | 21.9” |
| Working load limit | Retracted: 1,500 | 3,307 |
| Extended: 500 | 1,102 | |
| Net weight | 91 | 201 |
| Gross weight | 100 | 220 |
| Packaging dimension | 1,750 x 620x 410 | 69”x 24.4”x 16.1” |
