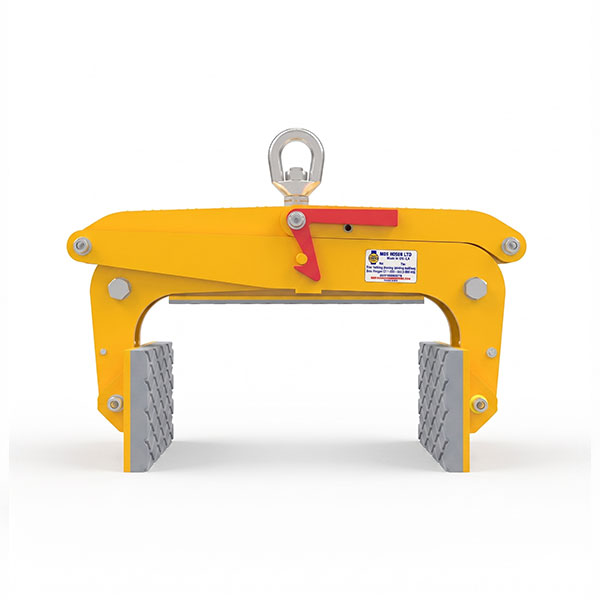

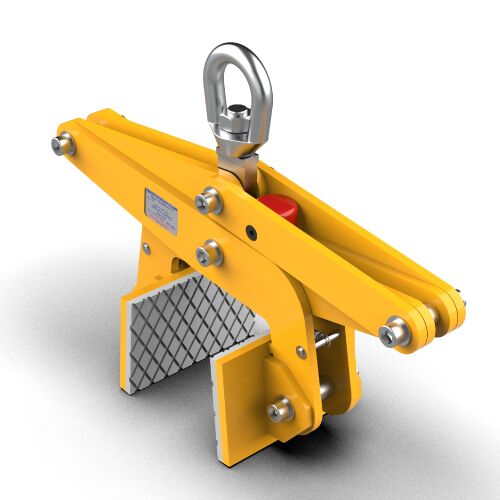

ABACO Scissor Clamp – Automatic Models with Grey Rubber

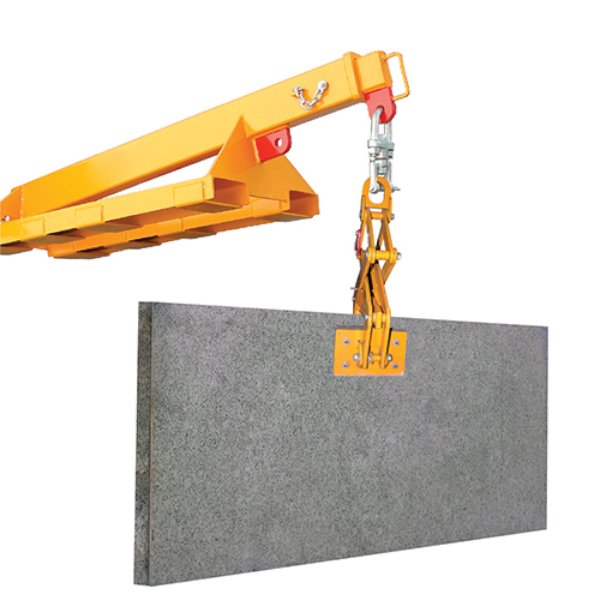

The ABACO Scissor Clamp range grips, lifts and moves stone materials using a suitable hoist or forklift boom. Choose from SC100AL-M2, SC150AL, SC350AL and SC400AL automatic models to match the material thickness and lifting capacity required for your job. Current versions are supplied with grey rubber pads.
Manufacturer product line update
In its September 25, 2026 product line update, Abaco announced the transition from manual SC models to automatic SC-AL models as its standard offering. Manual SC100, SC150, SC350 and SC400 models are being phased out of the standard range. Limited remaining stock may still be available for a short time. These legacy models are being discontinued and may no longer be available. Please contact us to confirm remaining availability before ordering. Choose a current automatic SC-AL model from the selector for the updated range. Contact USA Granite Tools for help selecting a model.
ABACO Scissor Clamp Video
Demonstration of the manual SC100 model. Current versions are supplied with grey rubber pads.
ABACO Scissor Clamp Technical Specifications
Length, width, height and grip range are in inches. W.L.L. (working load limit) and net weight are in pounds. Automatic models are listed first, followed by the four manual models being discontinued.
| Item Number | Length | Width | Height | Grip Range | W.L.L. | Net Weight |
|---|---|---|---|---|---|---|
| SC100AL-M2 | 21 5/16 | 7 1/16 | 15 3/4 | 3/8 – 3 15/16 | 2860 | 47.3 |
| SC150AL | 23 1/4 | 9 13/16 | 18 1/16 | 1 3/16 – 5 7/8 | 3300 | 77 |
| SC350AL | 22 5/8 | 9 13/16 | 20 15/16 | 5 7/8 – 13 3/4 | 3520 | 112.2 |
| SC400AL | 27 15/16 | 9 13/16 | 20 1/2 | 7 7/8 – 15 3/4 | 2420 | 114.4 |
| SC100 | 21 5/16 | 7 1/16 | 15 3/4 | 3/8 – 3 15/16 | 2860 | 47.3 |
| SC150 | 23 1/4 | 9 13/16 | 18 1/16 | 1 3/16 – 5 7/8 | 3300 | 77 |
| SC350 | 22 5/8 | 9 13/16 | 20 13/16 | 5 7/8 – 13 3/4 | 3520 | 112.2 |
| SC400 | 27 15/16 | 9 13/16 | 20 1/2 | 7 7/8 – 15 3/4 | 2420 | 114.4 |
Selection note: These models have different grip ranges and load limits. Match both specifications to the load; a larger opening does not mean a higher lifting capacity. Follow the manufacturer’s operating instructions and the rating marked on the selected clamp.
Key features
- Automatic clamping mechanism for lifting and releasing suitable stone materials.
- Steel construction designed for professional material handling.
- Rubber-lined contact surfaces help protect the material and provide grip.
- SC350AL and SC400AL are designed for block materials.
- Use with compatible lifting equipment rated for the complete load.
Manual models and existing equipment
If you are matching an existing manual clamp, reference its original model when contacting us. Use the specifications above to check the material thickness, load and application before selecting a model. Contact us to confirm availability and compatibility of previous models.
