ABACO Auto Lock Cable Lifter
The ABACO Auto Lock Cable Lifter is designed for use with forklift or electric hoist to clamp and move the slab materials.
The swivel hood and cable structure help grip rotate the slab in the narrow space safely.
The ABACO Auto Lock Cable Lifter has a clamping cam system with 4 rollers on the table helps distribute the clamping pressure on the slab’s surface, so that it can increase safety and avoid cracking or breaking stone. Cam and rollers system helps the clamping jaw move toward the slab and the fixed clamping jaw grips the slab while effective traction. The clamping cam opens and closes automatically.
The auto lock system is very flexible and convenient for users.
A rubber cushion is pressed into the grip’s surface and a limited bar help reduce the damage to the slab.
Movable clamping jaw is combined by 4 extension springs. Fixed clamping jaw hard link to the body by 4 hard chrome shafts including 2 chrome shafts with rubber cushion under pressure as limited bars.
Among its main features, we find:
- Vertical lift
- Swivel Hook
ABACO Auto Lock Cable Lifters Technical Specifications:
|SKU||Length (Inches)||Width (Inches)||Height (Inches)||Grip Range (Inches)||Net Weight (Pounds)|
|NGL50||7,5||8,375||21||3/8 – 2||56|

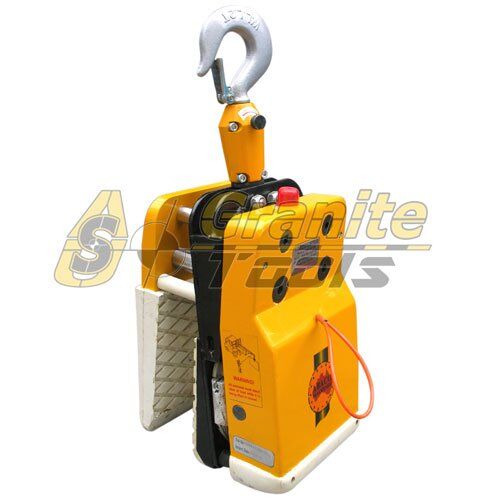

|NGL50-W||7,5||8,375||21||3/8 – 2||57|
|NGL75||8,5||10,625||21,125||3/4 – 3||74|
|NGL75-W||8,5||10,625||21,125||3/4 – 3||74|
