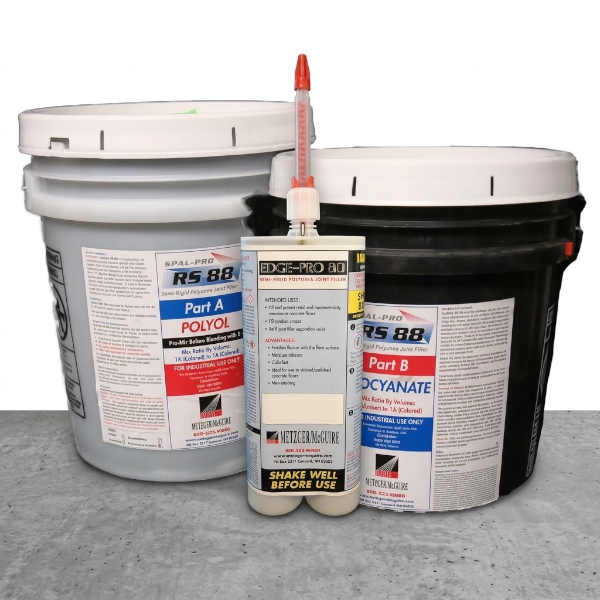

Metzger/McGuire Edge-Pro 80 Polyurea Joint Filler
Metzger/McGuire Edge-Pro 80 Polyurea Joint Filler is a two-part, 100% solids, rapid-setting polyurea polymer liquid system developed to fill and protect joints in exposed concrete retail floors and moderate-duty warehouse concrete floors. When cured, Edge-Pro 80 forms a rubber-like solid with a Shore A hardness of 80–81. Its primary function is to protect joint edges from spalling caused by material-handling vehicle traffic, and it is also ideal for filling random cracks in exposed concrete retail and moderate-duty warehouse floors. It is intended for final operating temperatures from -20°F (-29°C) to +120°F (49°C).
Edge-Pro 80 features chemistry designed to provide superior substrate adhesion, moisture tolerance, and a flusher finished profile compared with similar polyurea joint fillers. It can be shaved flush from 15 minutes to 24 hours after installation, ground and polished as early as 30 minutes when wet or 3–4 hours when dry, and maintains a consistent color profile while resisting fading or discoloration under normal conditions. Edge-Pro 80 is suitable for stained and polished concrete floors, but it is designed for interior use and may not be suitable outdoors because of thermal movement. Do not use it under VCT or other non-breathable flooring systems.
Main Features
- Two-part, 100% solids, rapid-setting polyurea polymer system
- Cures to a rubber-like solid with Shore A hardness of 80–81
- Fills and protects joints in exposed concrete retail and moderate-duty warehouse floors
- Protects joint edges from spalling caused by material-handling vehicle traffic
- Also suitable for filling random cracks
- Intended for operating temperatures from -20°F (-29°C) to +120°F (49°C)
- Superior substrate adhesion compared with similar polyurea joint fillers
- Moisture tolerant and capable of bonding to damp substrates with minimal compromise compared with dry substrates
- Wide 15-minute to 24-hour shave window for removing overfill and achieving a consistently flush profile
- Colorfast under normal conditions
- Can be ground and polished as early as 30 minutes wet or 3–4 hours dry
- Ideal for stained and polished concrete floors
- Neutral base can be mixed with color packs to create 13 popular colors commonly used in retail exposed concrete floors
Specifications
| Property | Value |
|---|---|
| Product Type | Polyurea Joint Filler |
| System | Two-Part Polyurea Polymer |
| Solids Content | 1 |
| Cured Form | Rubberlike Solid |
| Hardness | Shore A 80–81 |
| Primary Application | Fill and protect joints in exposed concrete retail floors and moderate-duty warehouse concrete floors |
| Other Application | Fill random cracks in exposed concrete retail and moderate-duty warehouse concrete floors |
| Operating Temperature | -20°F (-29°C) to +120°F (49°C) |
| Shave Window | 15 minutes to 24 hours |
| Grinding/Polishing – Wet | As early as 30 minutes |
| Grinding/Polishing – Dry | 3–4 hours |
| Intended Use | Interior |
| Moisture Tolerance | Will not react with moisture; bonds to damp substrates with minimal compromise compared with dry substrates |
| Color Stability | Maintains a consistent color profile and resists fading or discoloration under normal conditions |
| Packaging – Cartridge | 600 mL (300:300) dual cartridge |
| Packaging – Bulk | 10 gal US kit (2 × 5 gal US pails) |
| Color System | Neutral color compatible with color packs for 13 popular exposed-concrete retail floor colors |
Available Colors & Packaging
| Size | Color |
|---|---|
| 600 mL | Standard Gray |
| 600 mL | Dovetail Gray |
| 600 mL | Gauntlet Gray |
| 600 mL | Warm Stone |
| 600 mL | Ryno Gray |
| 10 gallon | Ryno Gray |
Recommended Joint Installation
- Install Edge-Pro 80 to the full joint depth in saw-cut contraction/control joints.
- For saw-cut joints exceeding 2″ in depth, install to a minimum depth of 2″.
- Installation should follow PCA and ACI guidelines, including ACI Technical Committee Guides 301-10, 302.1R-15, 310R-13, and 360R-10, as well as the Portland Cement Association’s Concrete Floors on Ground (2008).
Limitations
- Not recommended for use under VCT or other non-breathable flooring systems.
- Designed for interior applications and may not be suitable for outdoor use because of thermal movement.
Applicable Specifications
No government or ASTM standards specifically cover semi-rigid floor joint fillers. Edge-Pro 80 meets or exceeds the floor joint filler guidelines set forth by the American Concrete Institute technical committee guides 301-10, 302.1R-15, 310R-13, and 360R-10, and the Portland Cement Association’s Concrete Floors on Ground (2008).
