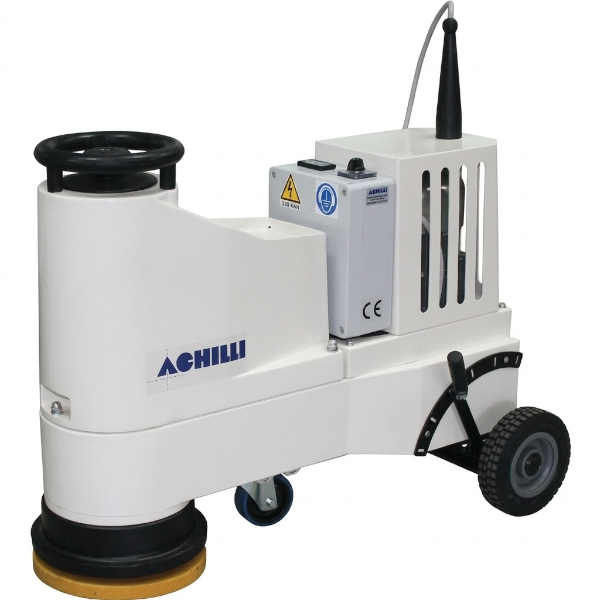

Achilli LM30 VE Floor Grinder 4 HP
Achilli LM30 VE Floor Grinder 4 HP is a professional single-phase floor grinding and polishing machine designed for marble, terrazzo, concrete, granite, and natural stone surfaces. Its frequency inverter-driven 4 HP (3 kW) motor provides four selectable speeds—150, 351, 439, and 527 RPM—allowing operators to adjust machine performance to different materials and stages of grinding, polishing, and finishing. The 300 mm (11.8″) plate accepts prismatic, Frankfurt, and comma tooling systems, while the eccentric wheel axis compensates for uneven floors to help maintain consistent grinding. Pivoting wheels and easy-grip handles provide smooth maneuverability, and the aluminum water tank with epoxy powder coating helps reduce weight while improving corrosion resistance.
Built for versatile professional applications, the Achilli LM30 VE Floor Grinder 4 HP runs on standard 230V single-phase power, eliminating the need for three-phase electrical infrastructure. Its inverter-driven motor improves torque control, efficiency, and output consistency, with low-speed operation providing effective grinding on hard granite and concrete and higher speeds supporting polishing and finishing on marble and terrazzo. Optional accessories include a 300 mm (11.8″) planetary head for granite and hard stone, bush-hammering plates in different grits, a 430 mm (17″) single-head driving plate, and additional weight for increased grinding pressure and more aggressive material removal.
Compatible Materials & Applications
The Achilli LM30 VE is suitable for marble, granite, terrazzo, concrete, and natural stone floors. Common applications include floor grinding and surface preparation, marble and terrazzo polishing and restoration, granite floor finishing, concrete preparation before coating or sealing, and bush-hammering or surface texturing with the appropriate optional plate.
Main Features
- Professional single-head floor grinder and polisher
- 4 HP (3 kW) frequency inverter-driven motor

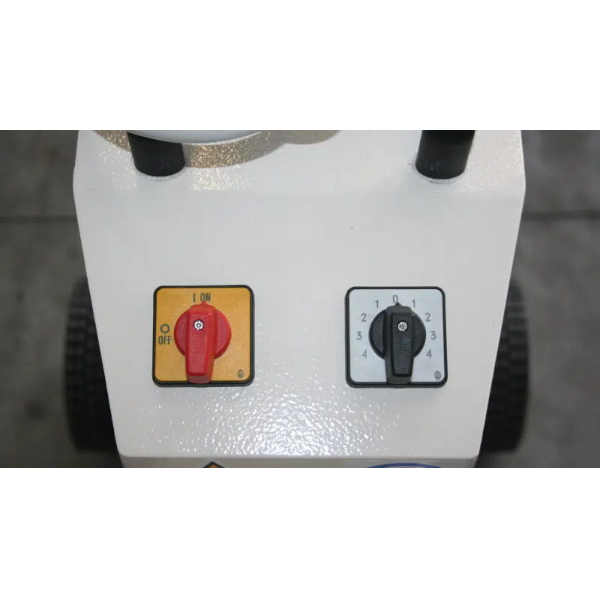

- Four selectable speeds: 150, 351, 439, and 527 RPM
- 300 mm (11.8″) tooling plate

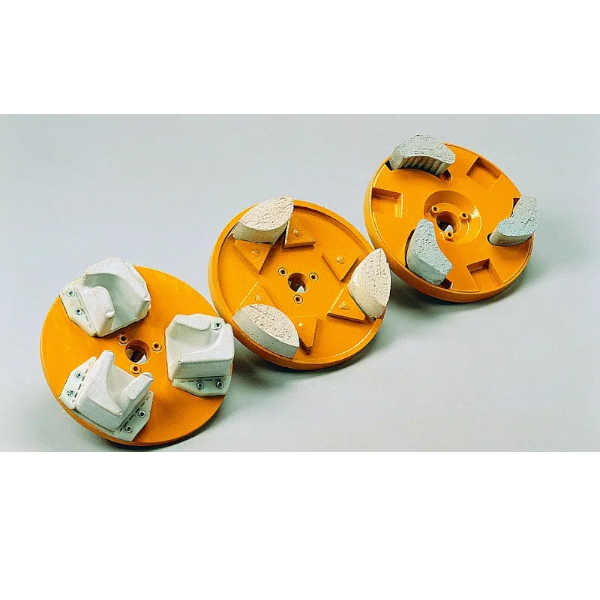

- Compatible with prismatic, Frankfurt, and comma tooling systems
- Eccentric wheel axis for leveling on uneven floor surfaces
- Pivoting wheels and easy-grip handles for improved maneuverability
- Aluminum water tank with epoxy powder-coated finish
- Standard 230V single-phase operation
- Improved low-speed torque for hard granite and concrete grinding
- Suitable for grinding, polishing, restoration, finishing, bush-hammering, and surface preparation
- Optional planetary head, bush-hammering plate, 430 mm driving plate, and extra weight available
- Ideal for marble, granite, terrazzo, concrete, and natural stone floors
Technical Specifications
| Property | Value |
|---|---|
| Motor Power | 4 HP (3 kW) |
| Voltage | 230V, Single-Phase, 50/60 Hz |
| Drive System | Frequency Inverter |
| Speed 1 | 150 RPM |
| Speed 2 | 351 RPM |
| Speed 3 | 439 RPM |
| Speed 4 | 527 RPM |
| Plate Diameter | 300 mm (11.8″) |
| Plate Compatibility | Prismatic, Frankfurt, Comma |
| Water Tank | Aluminum, Epoxy Powder Coated |
| SKU | PALM30VEF02 |
| Brand | Achilli |
Optional Accessories

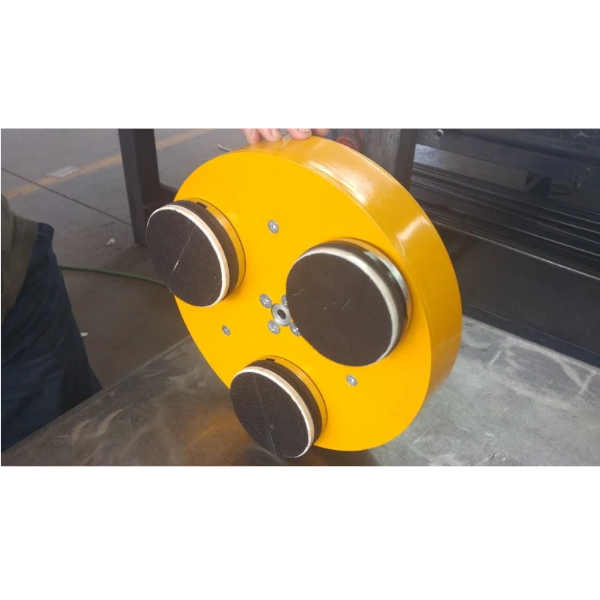

- Planetary Head (300 mm / 11.8″) – Enhances performance on granite and other hard stone surfaces.

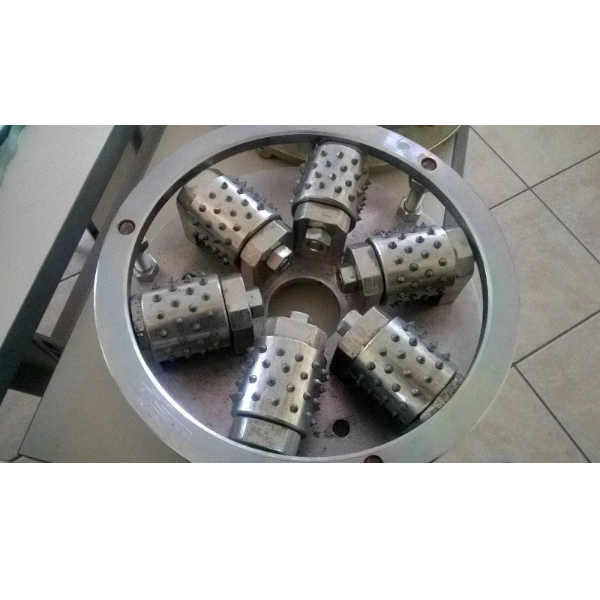

- Bush-Hammering Plate – Enables surface texturing with different grit options.

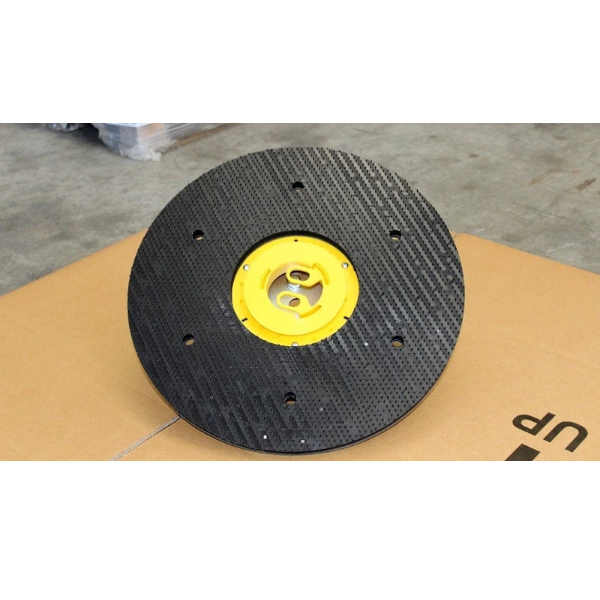

- Single Head Driving Plate (430 mm / 17″) – Designed for single-head tooling applications.

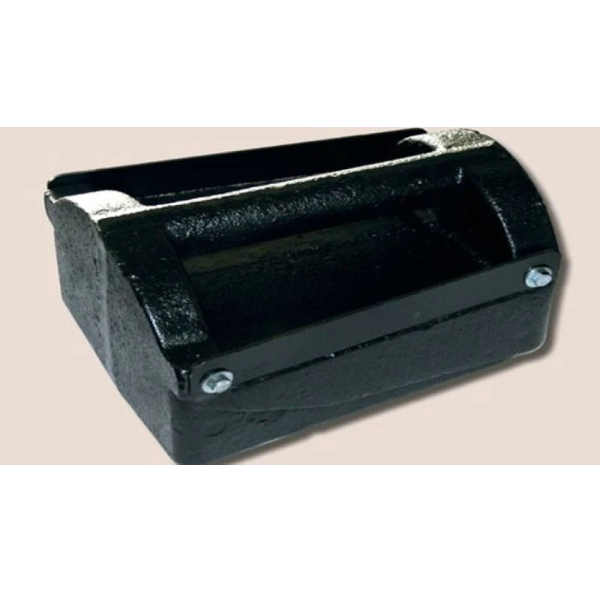

- Extra Weight – Increases grinding pressure for more aggressive material removal.
Achilli LM30 VE Floor Grinder Video
Achilli LM30-VE Floor Grinder | Professional Stone, Terrazzo & Concrete Polishing Machine
