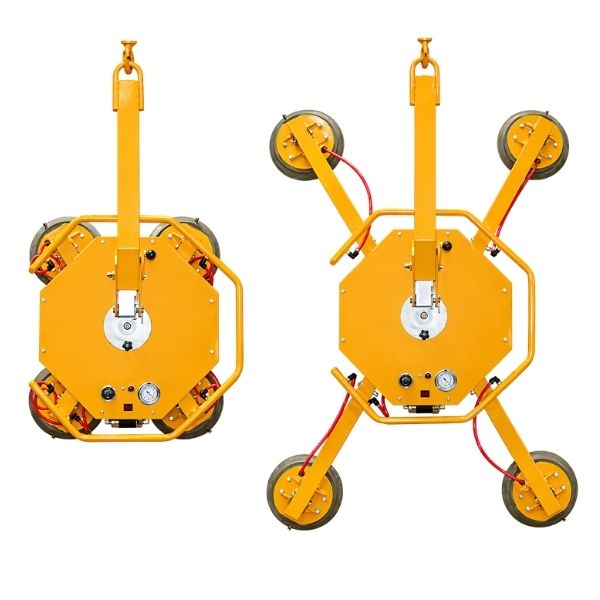

Aardwolf DC Powered Vacuum Glass Lifter
Aardwolf DC Powered Vacuum Glass Lifter is suitable for lifting and transporting glass elements of up to 500kg. This device can be use to install windows and large glass sheets with the aid of a forklift, counter balance crane or overhead hoist. On-board DC power systems provide cord-free operation at the job site. Movable vacuum pads and extension arms allow the DC Powered Vacuum Lifter – ARGL-500 to handle glass in nearly every size and shape.
Aardwolf products are built with the best quality standards, which has gained the brand a very high reputation, and a favorite among our customer base. You can always rely on their products, as they are probably the best option in the market today. You might also want to take a look at the diverse line of Aardwolf Stone Lifters, where you will probably find the best solution for your Granite Shop.
Aardwolf DC Powered Vacuum Glass Lifter Main Features
Among the features of this wonderful Vacuum Glass Lifter, we find:
- Spring-loaded suction pads
- Manual rotation of 360° with 45° steps
- Manual tilting by 90° in 15° grid
- Removable arm – depth min. 150mm
- Integrated vacuum reservoir tank
- Integrated instrumentation for monitoring the vacuum and the energy supply
- Visual and audible warning devices
- Self-contained 12-volt battery power supply with high capacity
- Extension arms allow the handling of large-sized sheets
- Adjustable arms

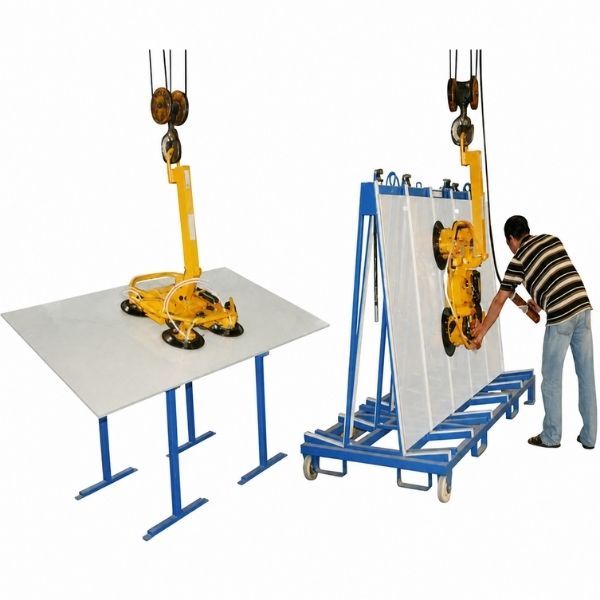

Watch the Lifter in action
Aardwolf DC Powered Vacuum Glass Lifter Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Suction Pad Dimension | Diameter of 300 mm | Diameter of 11.81 inches |
| Number of Pads | 4 | 4 |
| Weight | 68 kg | 149.91 lb |
| Lifting Capacity | ||
| Horizontal Lifting | 500 kg | 1,102.31 lb |
| Vertical Lifting | 400 kg | 881.85 lb |
Battery Information
| Feature | Value |
|---|---|
| Battery capacity | 12V-7A |
| Requirement input | 12V-2A |
| Standby time | 720h |
| Charging time | 3.5h |
| Non-stop working time | 1.3h |
| Warranty | 6-month |
Motor Information
| Feature | Value |
|---|---|
| Vacuum flow rate | 32.5l/m |
| Motor | 12V DC-4A |
