Aardwolf Forklift Boom FB2-3580

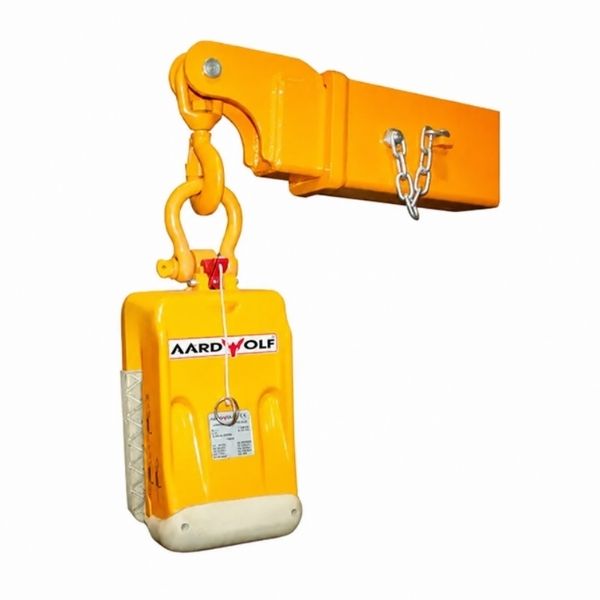

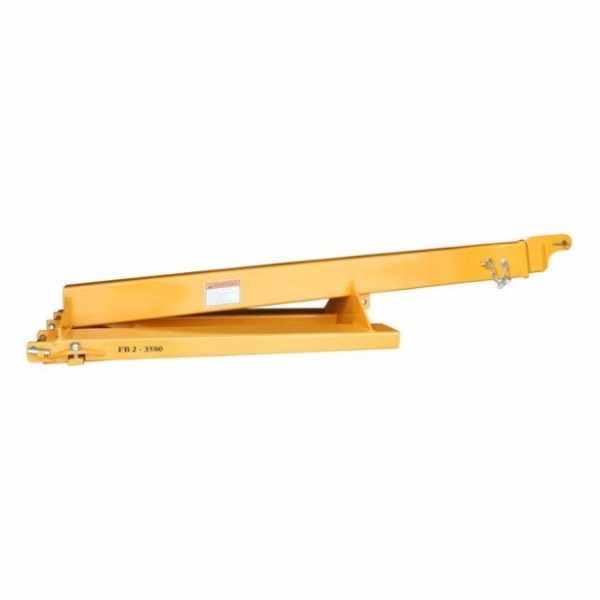

Aardwolf Forklift Boom FB2-3580 is a telescoping two section rectangular tube steel boom for use on 3 ton and larger forklift trucks. It offers versatility with maximum visibility for the driver. All Forklift Booms are made from high-grade Australian rectangular tube steel, AS1163-450 LO, which ensures strength, reliability, and safety. The Forklift Booms complement the patented range of Aardwolf lifting clamps. This forklift boom has a lifting capacity of over 3,300 pounds and over a 1,300 pounds fully extended.
FB2-3580 main Features
Among the features of the FB2-3580, we find:
- The boom extension is designed so it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
- Maximum load capacity, fully retracted – 3,307 LBS, fully extended – 1,322 LBS.

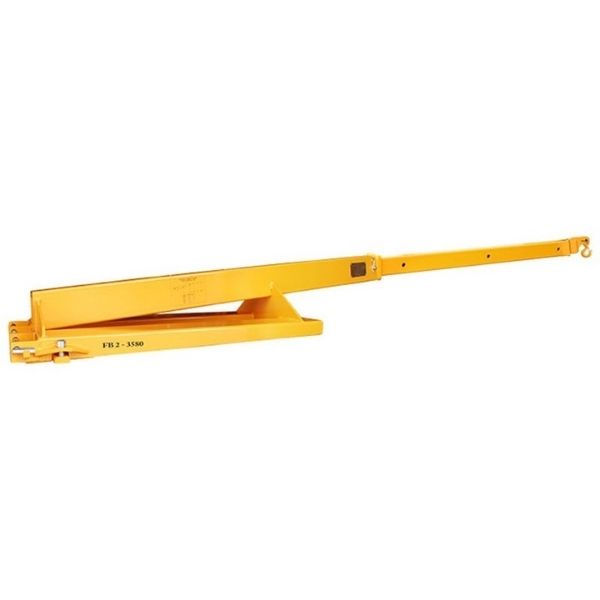

- Manually telescopes from 83″ to 141″ in 3 increments of 19.3″
NOTE: Boom lift capacities depends completely on the capacity of forklift being used

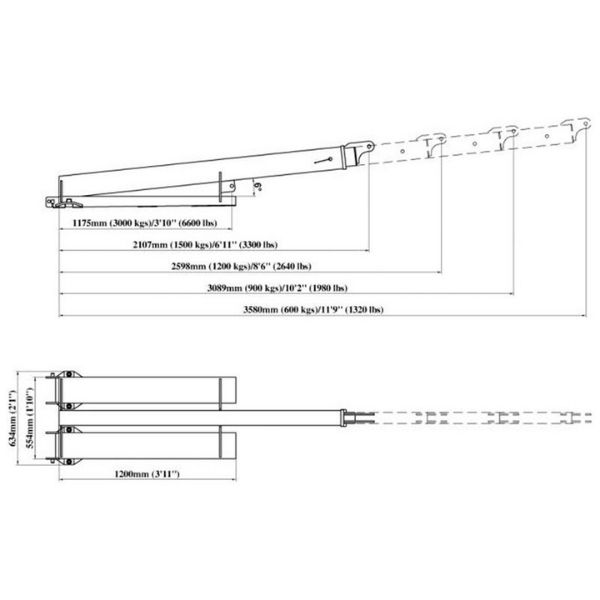

Aardwolf Forklift Boom Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Slip onto forks designed with fork pockets | 165×65 | 6.5”x2.6” |
| Fork pockets from the center to center | 377 | 14.8” |
| Manually telescopes | 2107 – 3580 | 83”x141” |
| Increment | 491 | 19.3” |
| Working load limit | Retracted: 1,500 | 3,307 |
| Extended: 600 | 1,322 | |
| Net weight | 136 | 300 |
| Gross weight | 146 | 322 |
| Packaging dimension | 2,250 x 630 x 550 | 88.6” x 24.8” x 21.7” |
