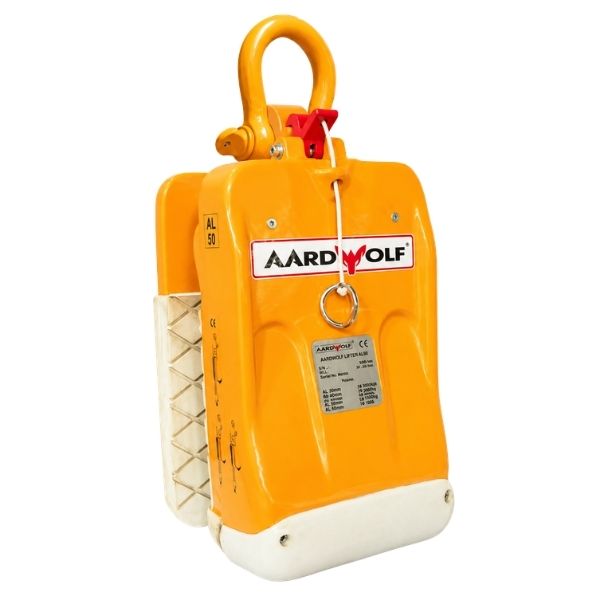

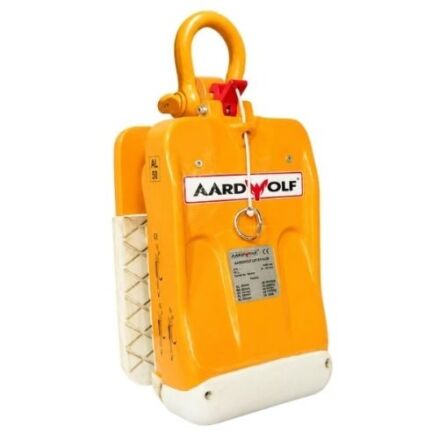

Aardwolf Lifter 50R

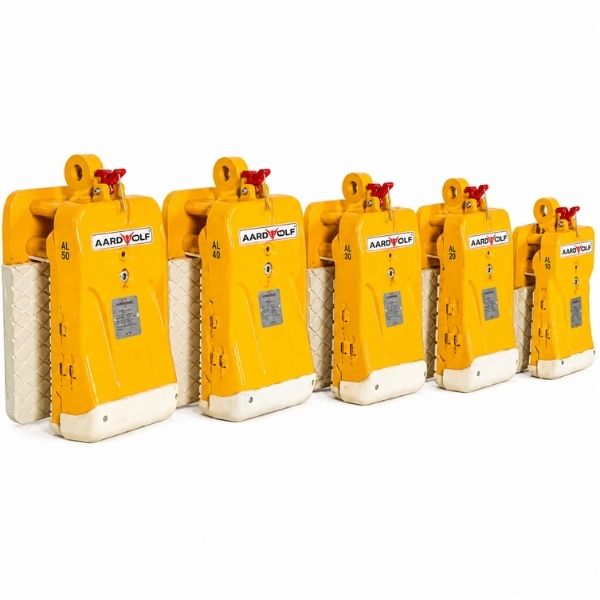

Aardwolf Lifter 50 is a patented accessory for lifting and moving slab-form loads. The Aardwolf Slab Lifter incorporates a spring-loaded latch that automatically releases the lifter from the slab once the slab has been fully lowered to the ground. This makes the process of lifting and reducing slabs a one-man operation. You also might take a look at the other Aardwolf Lifters.
Lifter 50R Main Features
Among the features of this wonderful Lifter, we find:
- Size: Being of compact construction, this Lifter allows for close-packed stone slabs to be lifted out of racks and containers. Lower-height slabs alongside taller slabs offer no problem, as with scissor clamps.
- Versatile: It is ideal for construction work. The clamping mechanism is on the front of the slab, allowing panels to be placed close to the walls.
- Safety: Only a small movement of the slab is required to engage and grip the slab, which is generally well below the overbalance angle, thus eliminating the danger to the operator.
- Secure: The Aardwolf clamps grip marble and granite slabs firmly. The Aardwolf Slab Lifter 30 has a force-multiplying factor of approximately 2.5 to 1.

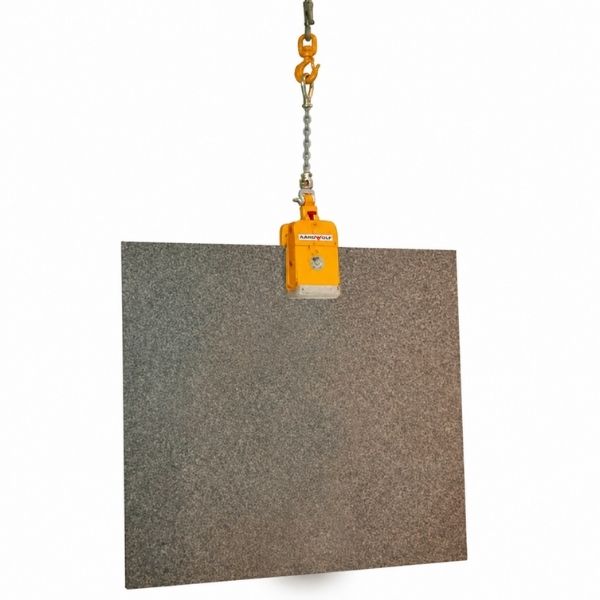

Watch the Lifter in action

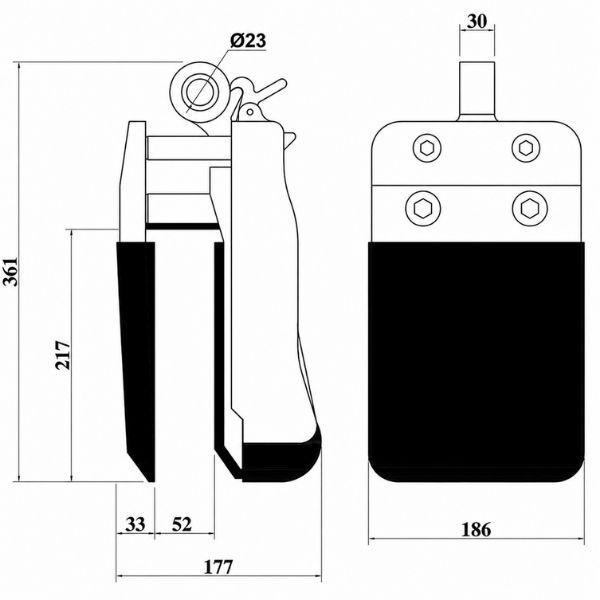

Aardwolf Lifter Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Grip range | 10 – 50 | 0.4” – 2” |
| Working load limit | 1,200 | 2,646 |
| Net weight | 19 | 42 |
| Gross weight | 20 | 44 |
| Packaging dimension | 380 x 210 x 230 | 15″ x 8.3” x 9” |
Patent: US 5893595
