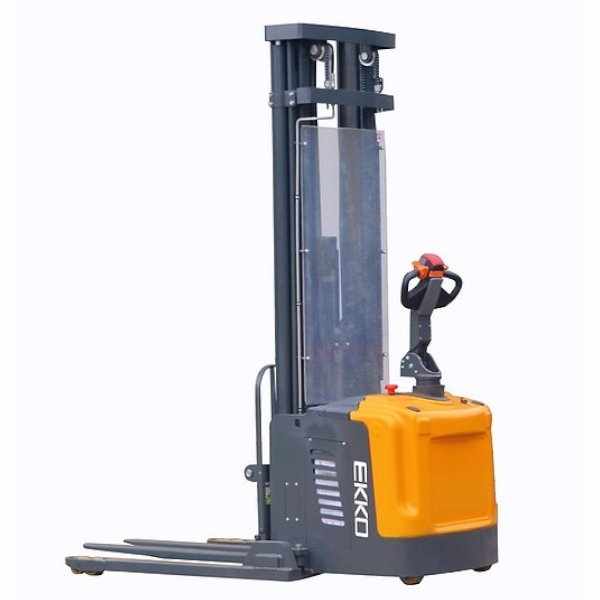

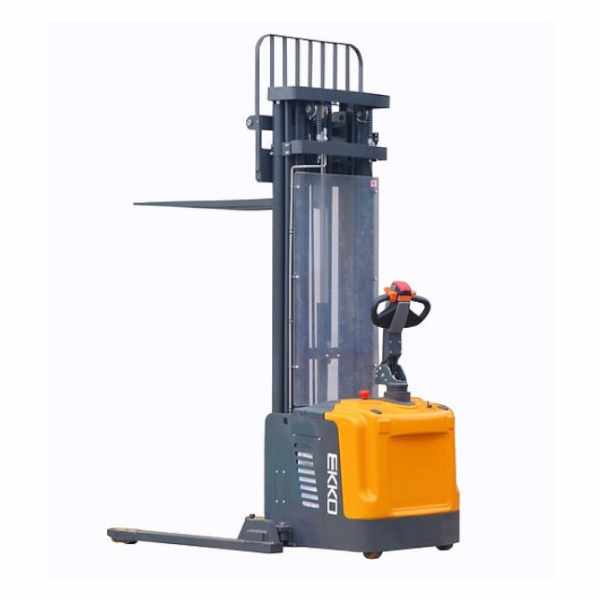

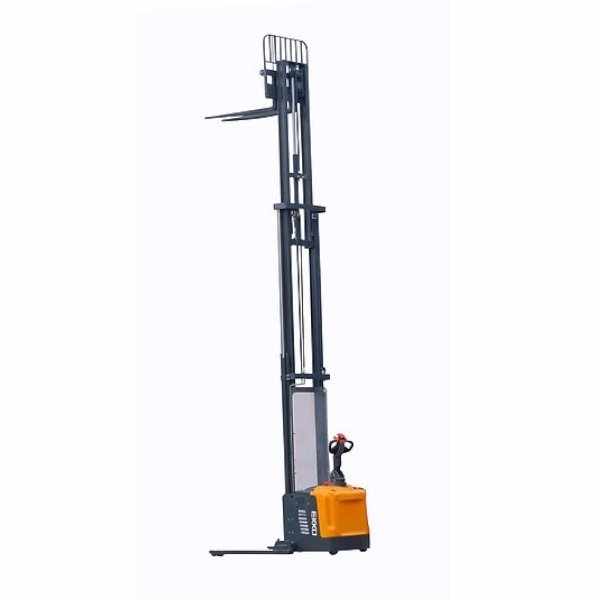

EKKO EB16EA Full Powered Straddle Stacker
The EKKO EB16EA Full Powered Straddle Stacker delivers the perfect combination of a forklift, reach truck, and walkie stacker in a single, high-performance machine. Engineered for versatility, it excels in loading and unloading trucks, managing loading docks, and navigating efficiently through stockrooms, manufacturing floors, and warehouses.
Crafted from high-quality steel and robust components, this stacker features durable drive systems designed to endure tough terrains, frequent usage, directional changes, and heavy impacts. Built to inspire confidence and deliver consistent results, the EB16EA is your reliable partner for demanding material handling applications.
EB16EA Full Powered Straddle Stacker Main Features
- Load Capacity 4400 lb
- Raised Height 216”
- Adjustable Forks 9.8-31.5“
- Adjustable Legs 38.06-51.8”
- Fork Length 45.28“
- Free Lift 76.25”
- EPS (Electric Power Steering)
- Curtis Instrument Controller
- 24V Center AC Drive Motor
- 24V Lift Motor
- Triple Mast
- Battery 24V/210Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3 Year Limited Warranty
Full Powered Straddle Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EB16EA | |
| Load Capacity | lb | 4400 |
| Maximum Lifting Height | in | 216 |
| Load Center Distance | in | 24 |
| Free Lift | in | 76.25 |
| Electric Power Steering (EPS) | Yes | |
| Fork Length | in | 45.28 |
| Single Fork Width | in | 4.7 |
| Overall Fork Width (Adjustable) | in | 9.8 31.5 |
| Lowered Fork Height | in | 1.58 |
| Fixed Leg Length | in | 42 |
| Adjustable Legs Width | in | 38.06 51.81 |
| Turning Radius | in | 69.09 |
| Overall Length | in | 81.69 |
| Max Overall Width | in | 46.93 60.71 |
| Extended Mast Height | in | 253.15 |
| Lowered Mast Height | in | 98.03 |
| Battery Voltage / Capacity | V / Ah | 24 / 210 |
| Charger | V / A | 24 / 30 |
| Lifting Motor | W | 3000 |
| Lift Speed (laden/unladen) | mm/s | 95 / 160 |
| Lowering Speed (laden/unladen) | mm/s | 130 / 110 |
| AC Driving Motor | W | 3000 |
| Driving Speed (laden/unladen) | km/h | 5.2 / 5.5 |
| Service Weight | lb | 3542 |
