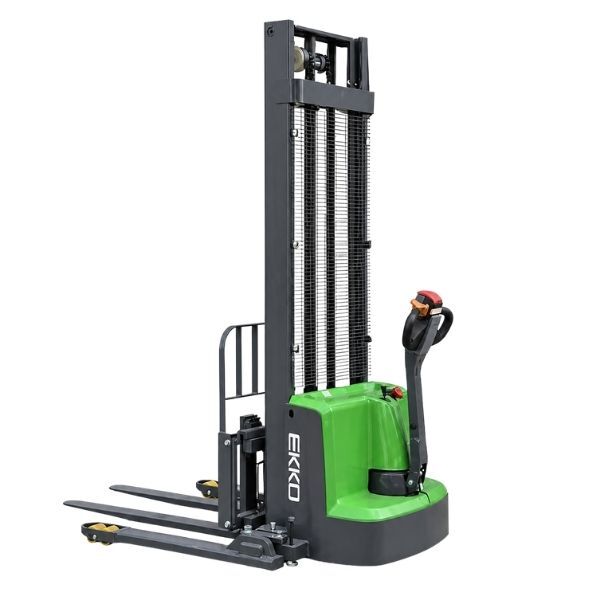

EKKO EB13ES-145Li Lithium Straddle Stacker
The EKKO EB13ES-145Li Lithium Straddle Stacker, featuring SIDE-SHIFTING functionality, combines the versatility of a forklift, reach truck, and walkie stacker into one efficient material handling solution. Ideally suited for loading and unloading trucks, maneuvering through loading docks, organizing stock rooms, and operating on manufacturing floors and in warehouses.
Built with high-quality steel and engineered with durable drive systems, this lithium-powered stacker is designed to endure challenging terrains, heavy usage, impacts, and rapid directional changes. The EB13ES-145Li ensures reliable, confident performance across a wide range of demanding applications.
EB13ES-145Li Lithium Straddle Stacker Main Features
- Load Capacity 2640 lb
- Raised Height 145”
- SIDE- SHIFTING
- Adjustable Forks 8.3-33.5“
- Adjustable Legs 45.7-59.1”
- Fork Length 45.3“
- Curtis Instrument Controller
- 24V Center Drive Motor
- 24V Lift Motor
- Battery 24V/50Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3 Year Limited Warranty
Lithium Straddle Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EB13ES-145Li | |
| Load Capacity | lbs | 2640 |
| Maximum Lifting Height | in | 145 |
| Load Center Distance | in | 24 |
| Fork Length | in | 45.3 |
| Single Fork Width | in | 4 |
| Overall Fork Width | in | 8.3 33.5 |
| Lowered Fork Height | in | 2.35 |
| Fixed Leg Length | in | 36.5 |
| Adjustable Leg Width | in | 45.7 59.1 |
| Turning Radius | in | 52.6 |
| Overall Length | in | 70 |
| Maximum Overall Width | in | 61 |
| Extended Mast Height | in | 167 |
| Lowered Mast Height | in | 95.7 |
| Battery Voltage / Capacity | V / Ah | 24V / 50Ah (Lithium) |
| Internal Charger | V / A | 24V / 15A |
| Lifting Motor | kW | 2.2 |
| Lift speed (laden/unladen) | mm/s | 92 / 136 |
| Lowering speed (laden/unladen) | mm/s | 112 / 98 |
| Driving Motor | kW | 0.75 |
| Driving speed (laden/unladen) | km/h | 4.0 / 4.2 |
| Service Weight | lbs | 1495 |
