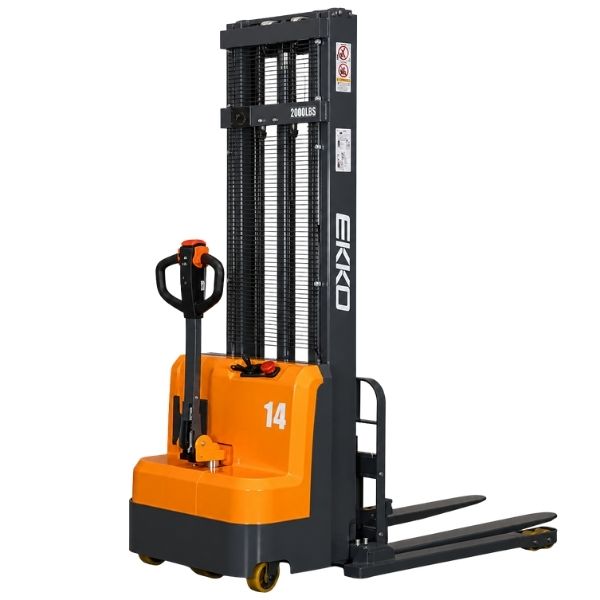

EKKO EB14C-138 Full Powered Straddle Stacker
The EKKO EB14C-138 Full Powered Straddle Stacker combines the capabilities of a forklift, reach truck, and walkie stacker into a single, highly adaptable solution. Ideal for efficiently loading and unloading trucks, navigating loading docks, organizing stock rooms, and managing operations on manufacturing floors and in warehouses.
Constructed from high-quality steel and equipped with durable drive components, this straddle stacker is built to endure varying terrains, high-usage conditions, impacts, and rapid directional changes. Its dual-damping drive system enhances handling performance, operational efficiency, and operator comfort, ensuring smooth, reliable operation across demanding environments.
EB14C-138 Full Powered Straddle Stacker Main Features
- Load Capacity 3000 lb
- Raised Height 138” (11.5 ft.)
- Adjustable Forks 8.7-32.1“
- Adjustable Legs 35.4-51.2”
- Fork Length 45.3“
- Curtis Instrument Controller
- DC Drive Motor
- Battery 24V/85Ah
- Polyurethane Wheels

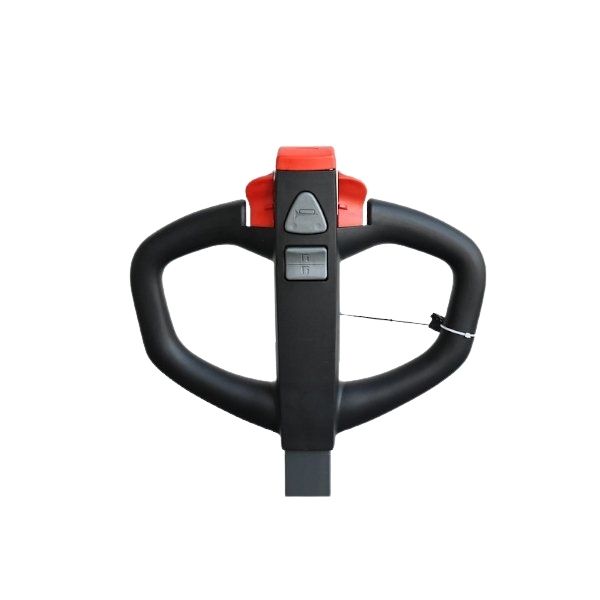

- Ergonomic Handle and Controls

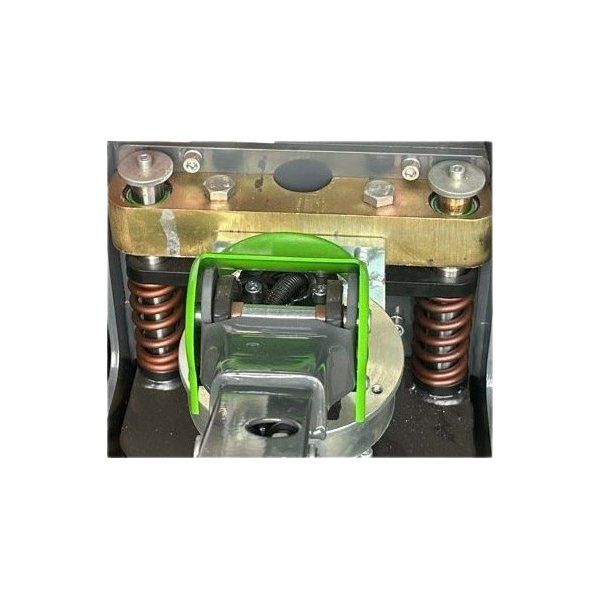

- Dual Damping Drive System
- Steel Construction
Full Powered Straddle Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EB14C-138 | |
| Load Capacity | lbs | 3000 |
| Maximum Lifting Height | in | 138 |
| Load Center Distance | in | 24 |
| Fork Length | in | 45.3 |
| Single Fork Width | in | 4 |
| Fork Adjustment Width | in | 8.7 32.1 |
| Lowered Fork Height | in | 2.6 |
| Adjustable Legs | in | 35.4 51.2 |
| Turning Radius | in | 57.5 |
| Overall Length | in | 73.7 |
| Max Overall Width | in | 61 |
| Extended Mast Height | in | 166.9 |
| Lowered Mast Height | in | 94.2 |
| Battery Voltage / Capacity | V / Ah | 24V / 85Ah (Lithium) |
| Internal Charger | V / A | 24V / 10A |
| Lifting Motor | kW | 2.2 |
| Driving Motor | – | DC Drive Motor |
| Service Weight | lbs | 1780 |
