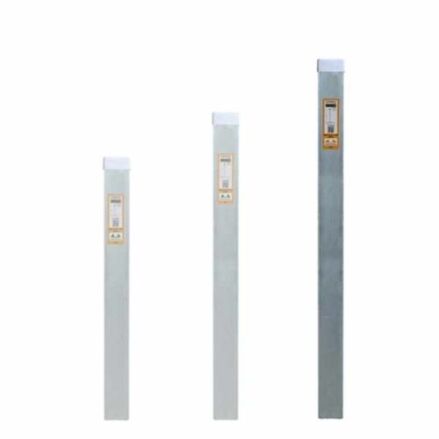

Aardwolf Bundle Rack Pole ABR08 63″ High
Aardwolf Bundle Rack Pole ABR08 is a Heavy Duty Post to be used with the Aardwolf Bundle Rack, measuring 1,600mm or 63″ is the ideal solution to build your own Rack. Specifications include metric and imperial measurements for comparison.
The fabrication of Aardwolf Slab & Bundle Racks
Aardwolf Bundle Rack Pole ABR08 Specifications
The rectangular post profile measures 100 × 50 mm, with a 5 mm wall thickness. Its height is 1,600 mm (63 inches). The 16.9 kg (37.3 lb) net weight is the weight of one post; it is not a load rating for a complete storage rack. Check the required post profile before ordering.
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Wall thickness | 5 | 0.2” |
| Yield strength | 345Mpa | – |
| Net weight | 16.9 | 37.3 |
| Gross weight | 17.1 | 37.7 |
| Post dimension | 100x50x1,600 | 3.9”x2”x63” |
Working Load Limit
Use the Aardwolf calculator linked below to determine the Post Storage Capacity. The technical specifications above describe the post itself and do not replace a storage capacity calculation.
Calculate Post Storage Capacity
(If your screen is small, you can open the calculator in a new page using the Aardwolf Bundle Rack Pole ABR08 capacity calculator)
Warning: Do not use the Aardwolf Slab Rack Storage Calculator to calculate the storage capacity of competitors’ posts as they may use posts with a different profile and steel of lower yield strength.
