Showing 1–15 of 59 results
- A Frames and Racks by Groves Incorporated

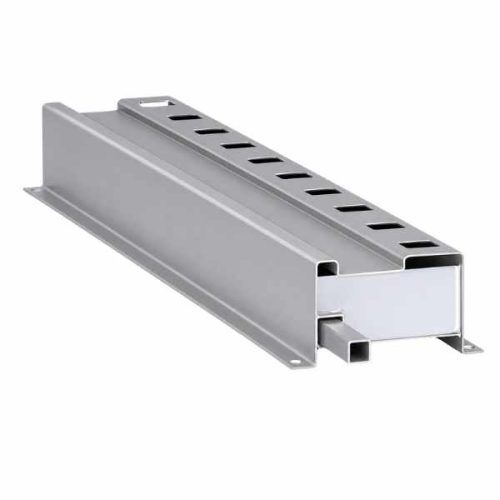

GROVES 60” Long Outside Rail with Wood Slot
- Outside rails are designed with slots to hold a 2×4. This helps protect the material being stored as well as the rail surface.
- Outside rails have 2″ square holes spaced 4″ apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1″ up from the bottom.
- Rails shipped with an 11″ connector tube for butting rails together in a straight line.
- Note: When assembled, the overall usable height of the post is 5.5″ less than listed. Example: A 60″ post will be 54.5″ above the top of the outside rail.
- Use .5″ holes on the bottom flange to secure the floor rails.
- Maximum Weight Allowed Per Bundle 9,000 LBS. (4,500 LBS. PER POST)
- Patent # 7143901
-
- A Frames and Racks by Groves Incorporated
GROVES Center Rail for Multi-Purpose Storage Rack
The GROVES Center Rail for Multi-Purpose Storage Rack is a cutting-edge solution designed to enhance the efficiency and convenience of your storage system. Specifically engineered to support glass and other delicate materials, the center rail with an easy slide feature ensures smooth and effortless sliding of individual pieces in and out of the racks.
- The center rail with an easy slide must support the glass when sliding individual pieces in and out of the racks.
- Easy Slide, a low-friction material, is mounted to the rails and posts to facilitate product sliding in and out.
- Carts and Dollies by Groves Incorporated
GROVES Drywall Cart
- Gray powder coat finish.
- Heavy duty 8″ casters (Three swivel and one swivel with brake).
- Ships knocked down for freight savings.
- Material can be secured to the cart using hold-down straps (not included).
- Maximum total weight capacity is 2,000 lbs.
- A Frames and Racks by Groves Incorporated
GROVES Fabrication Stand
- Heavy-duty powder-coated finish.
- Height adjustable from 36″ to 42″.
- Collapsable for easy transport and storage.
- Rubber-mounted on top prevents sliding and scratches.
- Maximum weight capacity 500 lbs. with top bar fully retracted / 300 lbs. top bar fully extended.
- Carts and Dollies by Groves Incorporated
GROVES Glass Carts
- Heavy-duty powder-coated finish for long-lasting durability
- Carts have plywood bases and rubber mounted horizontally on the upright supports
- Available in 48, 60, 72, or 78-inch Load Heights
- Includes two rigid and two swivels with brake casters (caster kit optional for GLC‑4878)
- Hold-down straps must be used at all times.
-
- Stone Lifters by Groves Incorporated, Stone Lifters
GROVES Glass Slings
- Made with 3″ wide polyester webbing and includes side straps to help achieve a balanced load.
- The inside of slings and horizontal straps are covered with reinforced PVC-coated material to help prevent cutting.
- Velcro straps prevent slings from shifting on the beam when not under load.
- Check slings for wear and damage before each use.
- Workloads are rated at 9,600 lbs. per pair in a vertical lift.
- Slings should always be nested in the same corresponding sling stop on top of the beams.
- Always use included pins to secure the sling inside sling stops.
- A Frames and Racks by Groves Incorporated
GROVES Harp Rack
- Gray powder-coated finish.
- It uses low-friction, high-density Polyethylene on the floor for easy glass sliding and provides a non-stick surface for insulated glass.
- The bottom surface is un-grooved for maximum rod spacing flexibility.
- The Load Height is 60″, and the Load Depth is 45″ (this allows for the proper operation of foot locks).
- Ships knocked down for freight savings.
- Includes four non-marking swivel casters rated at 1000 lbs. capacity each
- Two-foot locks are mounted in the front for stability.
- Transport Frames by Groves
GROVES Heavy Duty Transport Rack
- A-Frame is forkliftable from both ends.
- Uprights and hold-down bars are designed in line with each other and have full-length protective rubber tubing for an even and secure contact.
- Rubber pads on the bottom supports are covered with a thick, braided nylon jacket for extra protection.
- Two bottom supports for every upright give extra support and protection for cutouts and other areas of weakness.
- The six-wheel design of the optional cart provides safe & efficient movement throughout the warehouse.
- Mounting the A-Frame onto a cart requires no fasteners; set it down on self-centering angled flanges.
- The Splash Caddie inside of the A-Frame allows for extra storage.
- Maximum weight capacity 6,000 lbs.
- A Frames and Racks by Groves Incorporated
GROVES Mini Harp Rack
- Gray powder-coated finish.
- It uses low-friction, high-density Polyethylene on the floor for easy glass sliding and provides a non-stick surface for insulated glass.
- The bottom surface is un-grooved for maximum rod spacing flexibility.
- The Load Height is 60″, and the Load Depth is 45″ (this allows for the proper operation of foot locks).
- Ships knocked down for freight savings.
- Includes four non-marking swivel casters rated at 1000 lbs. capacity each
- A Frames and Racks by Groves Incorporated
GROVES Outside Rail with optional Easy Slide
- Store loose liters, insulated glass, tempered glass, plastic sheets, shower doors, and more. The center rail with an easy slide must support the glass when sliding individual pieces in and out of the racks.
- Easy Slide, a low-friction material, is mounted to the rails and posts to facilitate product sliding in and out.
- Outside rails have 2″ square holes spaced 4″ apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1″ up from the bottom.
- Note: When assembled, the overall usable height of the post is 5.5″ less than listed. For example, a 60″ post will be 54.5″ above the top of the outside rail.
- Rails shipped with an 11″ connector tube for butting rails together in a straight line.
- A Frames and Racks by Groves Incorporated
GROVES Single-Sided A-Frame
- Heavy-duty powder-coated finish
- Single-sided storage for your materials for space savings
- Designed to hold (2) custom-cut 20” long wood 2.5” x 1.5” to support the load (customer furnishes the wood)
- 6″ spread on top of A-Frame
- Ledge length 20.5”
- The bottom U-channel is 2.5” wide with a 1” side ledge
- Ships knocked down for lower freight cost
- A Frames and Racks by Groves Incorporated
GROVES Single-Sided Truck Rack
- Durable galvanized finish.
- Heavy-duty construction fabricated with 1.5″ square steel tubing.
- Uprights mount in slotted holes for full-depth adjustments.
- Holddowns have full-length rubber strips and quick-release straps.
- Steel-impregnated rubber strips mounted on uprights and bottom shelves.
- Mounting pads front and back for bolting to the truck floor.
- A Frames and Racks by Groves Incorporated
GROVES Stacking Rack
- Heavy-duty powder-coated rack designed to store remnants, cutoffs, strips and cut-to-size pieces
- It can be stacked three high with a stationary bottom
- A single rack can be used as a job site cart for safe transport and handling of material and will roll through a 30″ door-opening
- Optional caster kit includes (4) 5″ diameter casters (two rigid and two swivel brakes)
- Removable front legs for easy hand-loading and unloading
- Hold-down bars are included to secure the material to the rack and prevent damage in transport
- Riveted rubber is included on the base and uprights to protect the material
