STI Impacts 4025 Dust Collector

STI Impacts 4025 Dust Collector

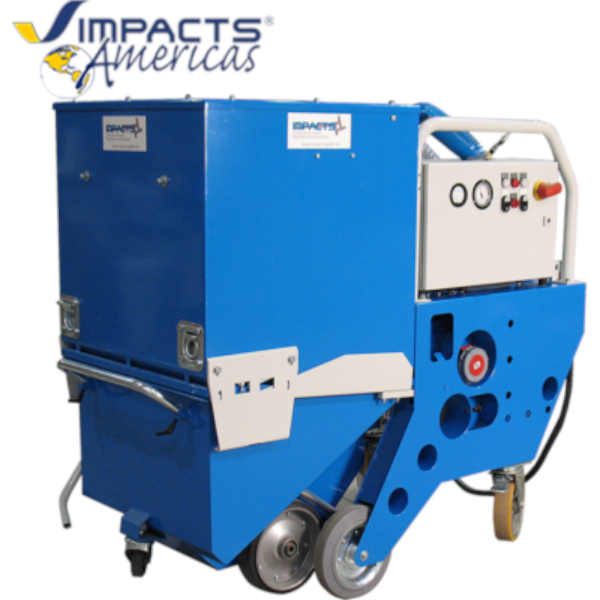

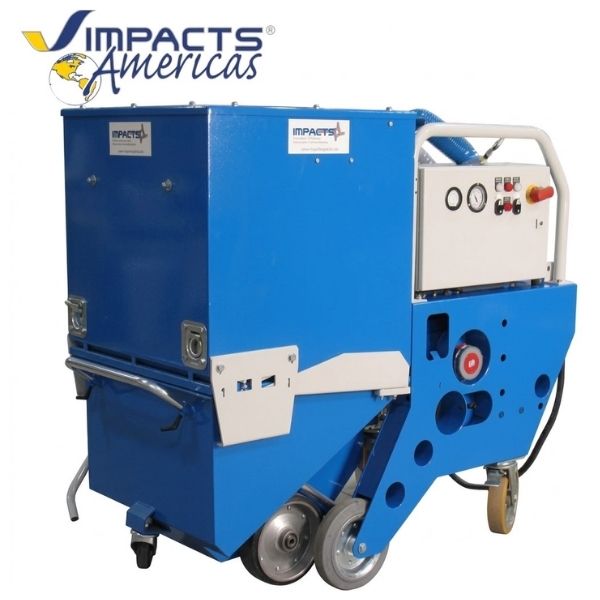

STI Impacts 4025 Dust Collector is a sturdy, compact, and extremely powerful industrial dust collector designed for medium- to large-surface preparation equipment, especially shot blasters. Engineered around the IMPACTS Dustcom 4025 platform, it delivers outstanding dust extraction for demanding applications while enhancing job-site safety, visibility, and productivity. With an impressive 765 CFM (1,300 m³/h) airflow and a 52-gallon (200-liter) dust-collection capacity, it efficiently supports concrete surface preparation, shot-blasting operations, and abrasive recovery. In addition to removing process dust, the DC4025 helps reclaim and recycle blasting media, allowing shot blasters to operate at peak efficiency.

Built for maximum performance and operator convenience, the Dustcom 4025 operates on 480V/60Hz, 16A power and features a large, easy-to-use dust bin with an innovative all-in-one lifting lock, removable and interchangeable dust hose connection, electro-pneumatic compressor regulation, and a smooth external frame without protruding edges for easier handling. The machine can be split into two units for greater transport flexibility and includes lifting locks for convenient handling. Measuring 63″ L × 31″ W × 55″ H, weighing 1,040 lbs. (460 kg), and equipped with a 6-inch (150 mm) vacuum hose connection, it is fully compatible with the IMPACTS S410E and IMPACTS S600E Shot Blasters, making it an ideal dust collection solution for professional surface preparation contractors.

Main Features

• Industrial dust collector for medium- to large-surface preparation equipment.
• Designed for shot blasting and abrasive recovery applications.
• 52-gallon (200-liter) dust collection capacity.
• High airflow of 765 CFM (1,300 m³/h).
• Operates on 480V/60Hz, 16A power.
• Innovative all-in-one lifting lock for easy dust bin handling.
• Large, user-friendly dust bin.
• Removable and interchangeable dust hose connection.
• Smooth frame without external edges or obstacles.
• Can be separated into two units for easier transportation.
• Lifting locks for convenient handling.
• Electro-pneumatic compressor regulation.
• 6-inch (150 mm) vacuum hose connection.
• Compatible with IMPACTS S410E and S600E Shot Blasters.

Specifications
