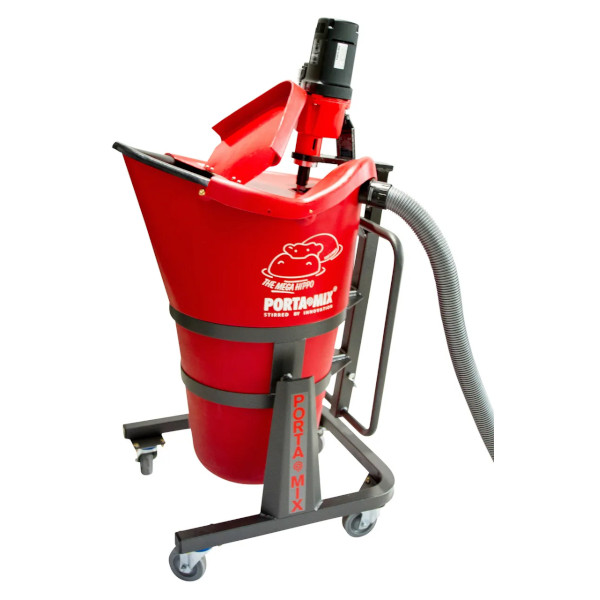

CS Unitec Mega Hippo Mixer with Dust Collection
The CS Unitec Mega Hippo Portable Mixing Station streamlines the batching, transport, and placement of multi-bag construction materials. Powered by a high-torque, 15 A two-speed motor with a 23-gallon capacity, it empowers a single operator to mix, wheel, and pour up to six bags (350 lb) per batch directly onto the substrate—dramatically reducing crew labor and site cycle times.
With a balanced Easy-tilt Cradle and Easy-roll Trolley, the Mega Hippo lets you pour and spread simultaneously to reach target screed thicknesses in fewer passes. An integrated dust-extraction port connects directly to a shop vac for OSHA-compliant dust control, while dual 9-inch wide-diameter helix paddles generate optimal peripheral shear to eliminate unmixed pockets, blend additives uniformly, and prevent premature flash curing.
Applications
- Self-Leveling & Underlayments: Cementitious screeds, self-leveling overlays, underlayments, and urethane cements.
- Mortars, Grouts & Slurries: Non-shrink grouts, repair mortars, textured coatings, and decorative slurries.
- Resins, Epoxies & Adhesives: High-build floor epoxies, pre-tinted resins, sealants, paints, and specialized bonding compounds.
- Continuous Pour Operations: Ideal for full-floor placement directly from the bowl or dispensing into secondary transport carts.
Main Features
- Single-Operator High Output: Mix, wheel, and pour up to 6 bags (23 gal / 350 lb capacity) without transferring material between containers.
- Controlled Easy-Tilt Pouring: A balanced pivot cradle and smooth-rolling trolley enable precise, simultaneous pouring and spreading directly onto the floor.
- OSHA-Compliant Dust Control: The canister lid and dedicated vacuum extraction port capture airborne silica and dust at the bag-drop point.
- High-Torque 2-Speed Motor: Heavy-duty 15 A geared motor provides dedicated low- and high-RPM settings suited to both dense slurries and flowable compounds.
- Anti-Flash Cure Paddle Design: Dual 9″ helix ribbon and side-bar paddles create rapid material shear without generating excessive friction heat, preserving product working time.
- Pocket-Free Mixing & Fast Swap: Specially contoured bowl design prevents unmixed clumps, while removable, pliable liners allow rapid color/product switchouts without cross-contamination.
- Splatter-Protected Casters: Integrated wheel guards prevent wet mix and screed buildup on casters for smooth mobility throughout the job.
Specifications
| Property | Value |
|---|---|
| Product Type | Level Floor |
| Capacity | 23 gal (full-brim capacity) |
| Maximum Batch Capacity | Up to 6 bags |
| Listed Material Capacity | 350 lb |
| Motor | High-torque, 15 Amp, two-speed geared motor |
| Dust Collection | Integrated canister lid and dust extraction port for connection to a dust extraction vacuum |
| Mixing Bowl | Specially shaped to reduce unmixed pockets and simplify cleaning |
| Liner | Resilient, pliable, easy to clean |
| Trolley and Cradle | Easy-roll Trolley and balanced Easy-tilt Cradle |
| Weight | 127.20 lbs |
| Included Accessories | Two 9 in diameter mixing paddles |
Included Mixing Paddles
| Paddle | Batch Size | Dimensions | Design and Applications |
|---|---|---|---|
| TW225 | Half batches: 2–3 bags | 9 in diameter × 27 in long | 8 in helix and side bars. For plasters, concrete, mortars, resins, and tile adhesives. |
| TW225D | Full batches: 5–6 bags | 9 in diameter × 27 in long | 15 in helix and side bars. For self-leveling compounds, screeds, paints, plasters, and epoxy. |
Both paddles feature a helix and side bars designed to lift and shear material efficiently, helping achieve excellent mix consistency and thoroughly blend colors and additives. Their 9-inch diameter increases peripheral speed, eliminating the need for high-RPM mixing and helping prevent flash curing.
Dust-use note: You can remove the lid when mixing non-dust-generating materials. When mixing dusty products, connect the dust extraction port to a suitable dust extraction vacuum and use the required personal protective equipment.
