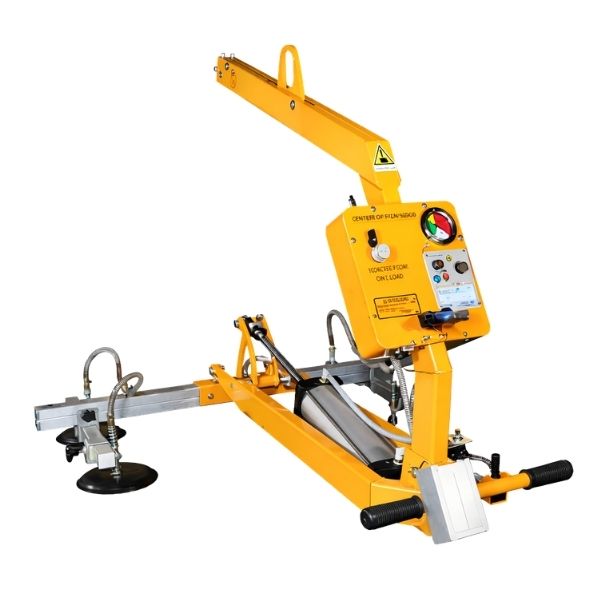

Aardwolf Aardwolf 180º Rotation Vacuum Lifter 160kg
Aardwolf 180º Rotation Vacuum Lifter 160kg is uniquely useful for rotating and lifting slabs and glass with a varied orientation of 90 – 180 degrees.
Aardwolf products are built with the best quality standards, which has gained the brand a very high reputation, and a favorite among our customer base. You can always rely on their products, as they are probably the best option in the market today. You might also want to take a look at the diverse line of Aardwolf Stone Lifters, where you will probably find the best solution for your Granite Shop.
Aardwolf 180º Rotation Vacuum Lifter Main Features
Among the features of this wonderful Rotation Vacuum Lifter, we find:
- No electric power or lubrication needed
- Gas spring allows the self-adjustment of counterbalance
- Slide valve for lifting and releasing materials
- Audio/visual safety system

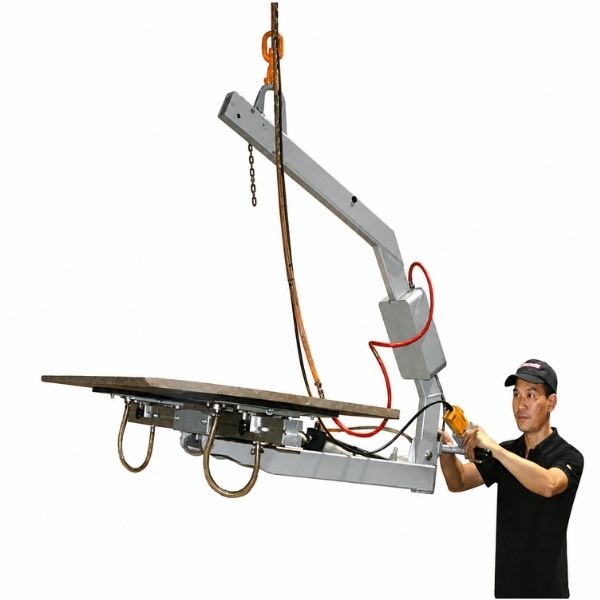

Watch the Lifter in action
ARV-180 ROTARY VACUUM LIFTER | Aardwolf

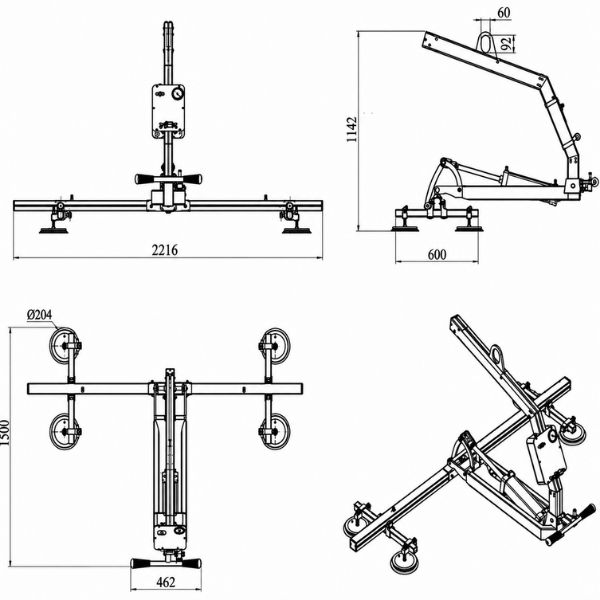

180º Rotation Vacuum Lifter 160kg Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Suction Pad Dimension | Diameter of 200 mm | Diameter of 7.87 inches |
| Number of Pads | 4 | 4 |
| Lifting Capacity | 160 kg | 352.74 lb |
| Package Dimensions | L 1400 x W 480 x H 1080 mm | L 55.12 x W 18.90 x H 42.52 inches |
| Weight of Unit | 63 kg | 138.89 lb |
Alarm System Battery Information
| Feature | Value |
|---|---|
| Power Supply | 3.7V Lipo Battery |
| Battery Capacity | 2000mAh x1 |
| Adapter | DC 5V-1A |
| Standby Time | 720h |
| Charging Cycle | 1000 times |
| Charging Time | 2h |
| Non Stop Working Time | 7h |
Compressed Air Requirement
| Feature | Value |
|---|---|
| Air Consumption | 180 l/min |
| Supply Air Pressure | 5 bar at the vacuum lifte |
