Aardwolf Lifter 30
Aardwolf Lifter 30, a patented accessory for lifting and moving slab-form loads. The Aardwolf Slab Lifter incorporates a spring-loaded latch that automatically releases the lifter from the slab once the slab has been fully lowered to the ground. This makes the process of lifting and lowering slabs a one-man operation. You also might take a look at the other Aardwolf Lifters.
Lifter 30 Main Features
Among the features of this wonderful Lifter, we find:
- Size: Being of a compact construction, this Lifter allows for close packed stone slabs to be lifted out of racks and containers. Lower height slabs placed alongside taller slabs offer no problem, as is the case with scissor clamps.
- Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, they allow panels to be placed close against walls.
- Safety: Requires only a small movement of the slab to engage and grip the slab, which is generally well below the over balance angle thus eliminating the danger to the operator.
- Secure: The Aardwolf clamps grip marble and granite slabs firmly. The Aardwolf Slab Lifter 30 has a force-multiplying factor of approximately 3 to 1.

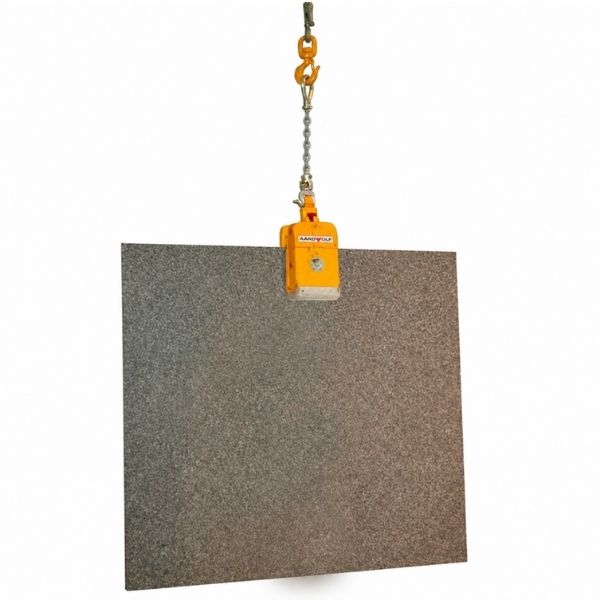

Watch the Lifter in action

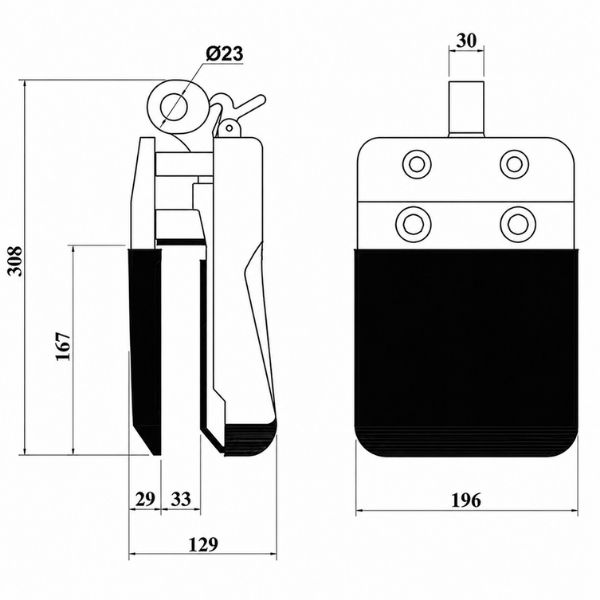

Aardwolf Lifter Technical Specifications:
| Feature | Metric (mm-kg) | Imperial (inch-lb) |
|---|---|---|
| Grip range | 3 – 30 | 0.1” – 1.2” |
| Working load limit | 1,200 | 2,646 |
| Net weight | 16.3 | 36 |
| Gross weight | 16.9 | 37.3 |
| Packaging dimension | 365 x 160 x 240 | 14″ x 6” x 9” |
Patent: US 5893595
