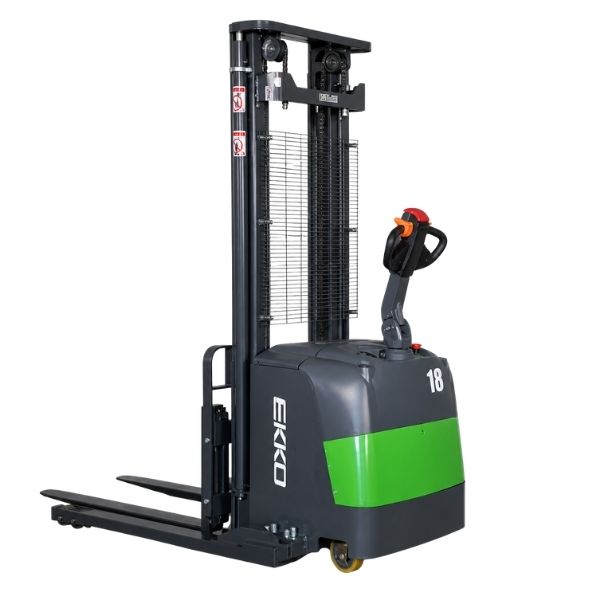

EKKO EB18C-118Li Full Powered Lithium Straddle Stacker
The EKKO EB18C-118Li Full Powered Lithium Straddle Stacker delivers the perfect combination of a forklift, reach truck, and walkie stacker in a single, high-performance machine. Engineered for versatility, it excels in loading and unloading trucks, managing loading docks, and navigating efficiently through stockrooms, manufacturing floors, and warehouses.
Crafted from high-quality steel and robust components, this stacker features durable drive systems designed to endure tough terrains, frequent usage, directional changes, and heavy impacts. Built to inspire confidence and deliver consistent results, the EB18C-118Li is your reliable partner for demanding material handling applications.
EB18C-118Li Full Powered Lithium Straddle Stacker Main Features
- Load Capacity 4000 lb
- Raised Height 118″ (9.83ft)
- Adjustable Forks 8.66-32″
- Adjustable Legs 39.76-55.55″
- Fork Length 45.3″
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- Battery 24V/90Ah Lithium
- Polyurethane Wheels

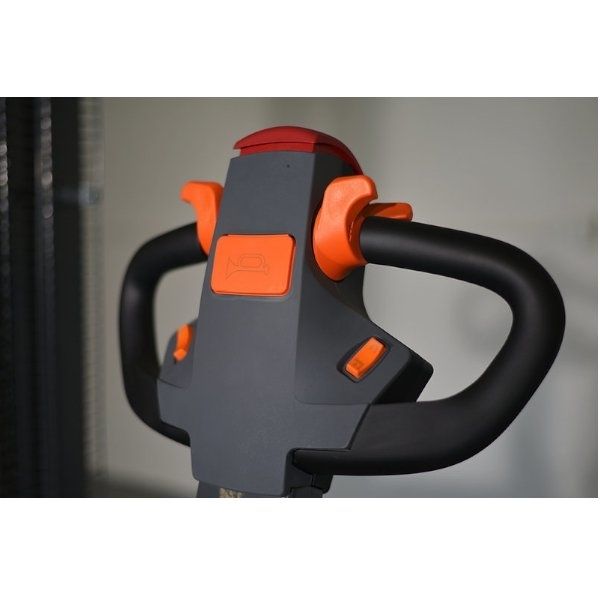

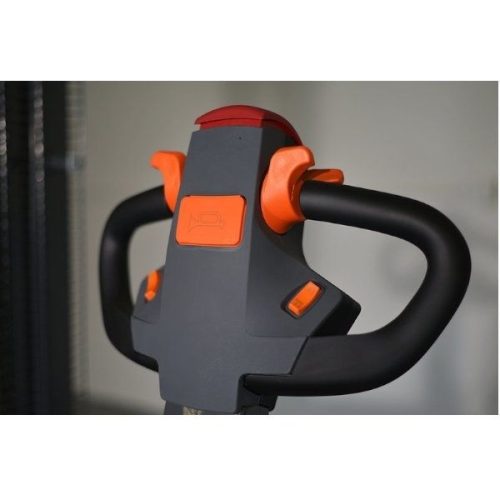

- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 24V/30A Included
- Batteries Included
Full Powered Lithium Straddle Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EB18C-118 | |
| Load Capacity | lb | 4000 |
| Maximum Lifting Height | in | 118 |
| Load Center Distance | in | 24 |
| Fork Length | in | 45.3 |
| Single Fork Width | in | 3.94 |
| Overall Fork Width | in | 8.66 |
| Lowered Fork Height | in | 2.56 |
| Overall Length | in | 76.18 |
| Adjustable Legs Width | in | 39.76 55.55 |
| Turning Radius | in | 62.83 |
| Max Overall Width | in | 61 |
| Extended Mast Height | in | 147.64 |
| Lowered Mast Height | in | 79.33 |
| Battery Voltage / Capacity | V / Ah | 24 / 90 (Lithium) |
| Charger | V / A | 24 / 30 |
| Lifting Motor | W | 3000 |
| Driving Motor | W | 750 |
| Service Weight | lb | 2270 |
