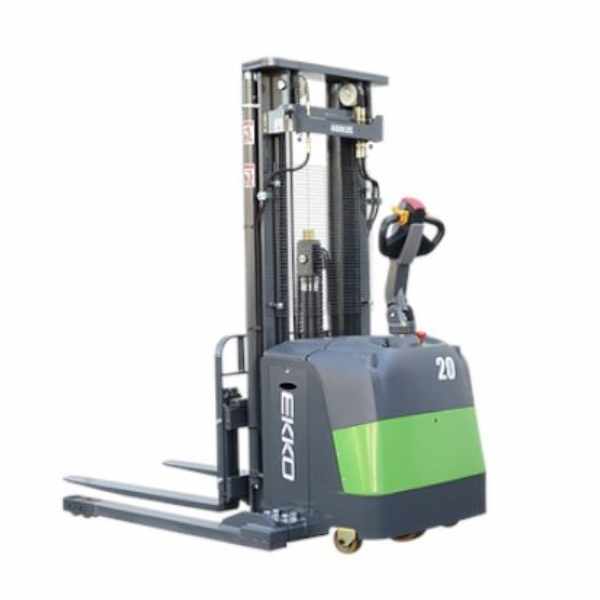

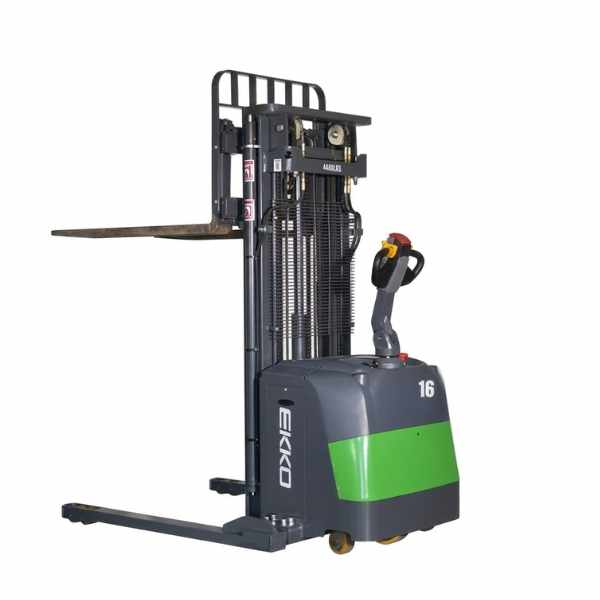

EKKO EB16EAS-189Li Lithium Straddle Stacker
The EKKO EB16EAS-189Li Lithium Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker into one powerful unit—now enhanced with SIDE-SHIFTING capabilities for greater precision and control. Perfect for efficiently handling tasks such as loading and unloading trucks, managing loading docks, and navigating stock rooms, manufacturing floors, and warehouses.
Constructed from high-quality steel and premium components, this lithium-powered stacker is built to endure challenging terrains, heavy usage, impacts, and frequent directional changes. Designed for performance and dependability, it ensures confident operation across a wide range of industrial applications.
EB16EAS-189Li Lithium Straddle Stacker Main Features
- Load Capacity 4400 lb
- Raised Height 189”
- SIDE-SHIFTING
- Adjustable Forks 8.7-32.1“
- Adjustable Legs 39.8-55.5”
- Fork Length 45.3“
- Free Lift 51.85”
- EPS (Electric Power Steering)
- Curtis Instrument Controller
- 24V Center AC Drive Motor
- 24V Lift Motor
- Triple Mast
- Battery 24V/210Ah
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3 Year Limited Warranty

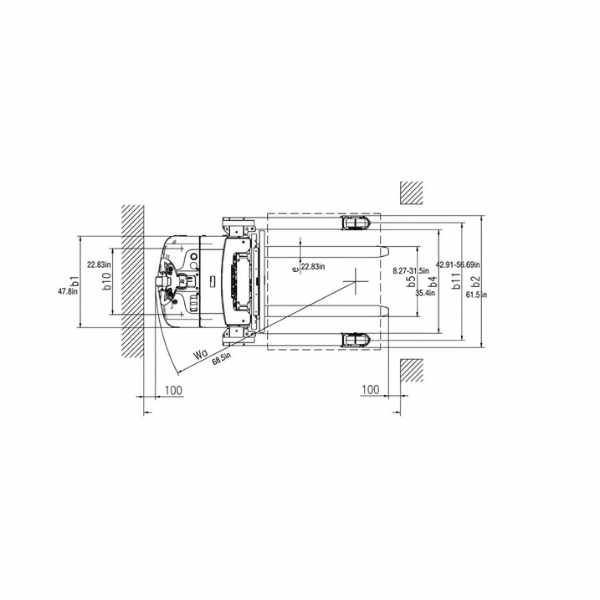

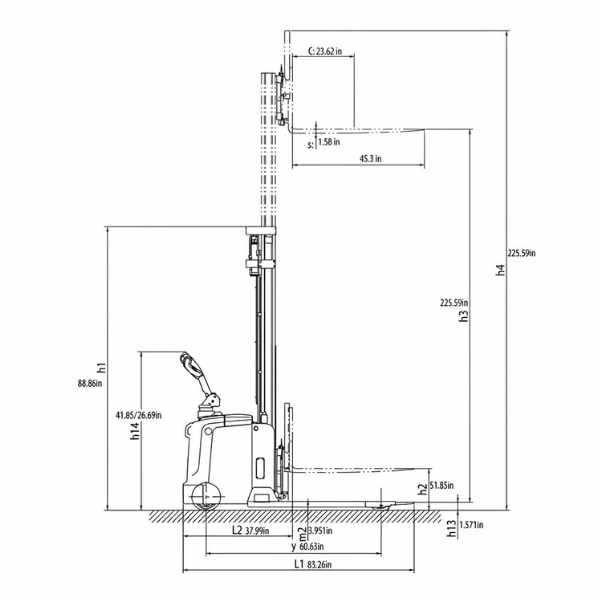

Lithium Straddle Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EB16EAS-189Li | |
| Load Capacity | lb | 4400 |
| Maximum Lifting Height | in | 189 |
| Load Center Distance | in | 24 |
| Free Lift | in | 51.85 |
| Electric Power Steering (EPS) | Yes | |
| Fork Length | in | 45.3 |
| Side-Shift | in | 4.7 |
| Overall Fork Width (Adjustable) | in | 8.27 32.1 |
| Lowered Fork Height | in | 1.57 |
| Fixed Leg Length | in | 42 |
| Adjustable Legs Width | in | 39.8 55.5 |
| Turning Radius | in | 65 |
| Overall Length | in | 83.26 |
| Max Overall Width | in | 46.93 60.71 |
| Extended Mast Height | in | 227 |
| Lowered Mast Height | in | 88.86 |
| Battery Voltage / Capacity | V / Ah | 24 / 150 (Lithium) |
| Charger | V / A | 24 / 50 |
| Lifting Motor | kW | 3.0 |
| AC Driving Motor | kW | 1.5 |
| Service Weight | lb | 3000 |
