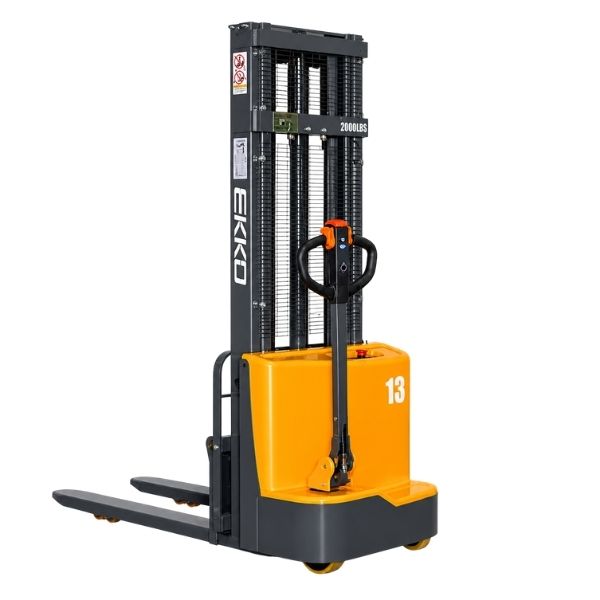

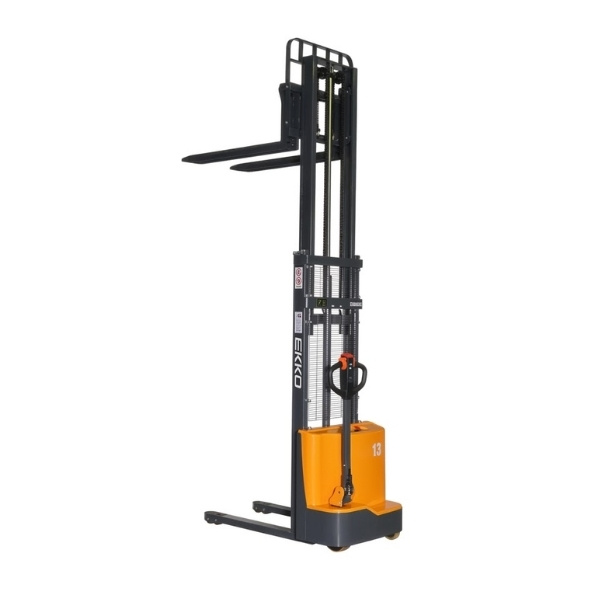

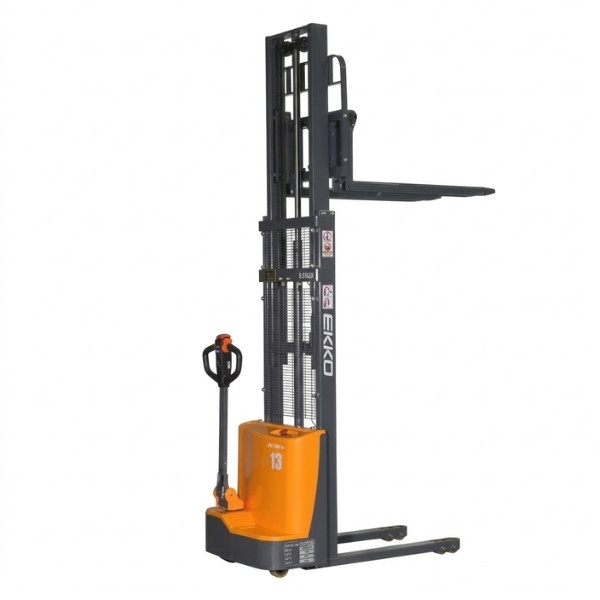

EKKO EB13CD Electric Fork Over Stacker
The EKKO EB13CD Electric Fork Over Stacker is engineered to combine the flexibility of a forklift, reach truck, and walkie stacker into one powerful machine. Ideal for loading and unloading trucks, navigating loading docks, organizing stock rooms, and operating across manufacturing floors and warehouses, this unit is built for maximum versatility and performance.
Constructed with high-quality steel and robust components, the EB13CD features durable drive systems that can handle demanding terrains, intensive usage, impacts, and sudden directional changes. With the reliability and efficiency you need, this lithium-powered straddle stacker delivers consistent performance across all your material handling operations.
EB13CD Electric Fork Over Stacker Main Features
- Load Capacity 2800 lb
- Raised Height 118”
- Fixed Legs and Forks
- Fork Length 45.28″
- 24V Lift Motor
- Battery 2*12V/85Ah
- Polyurethane Wheels

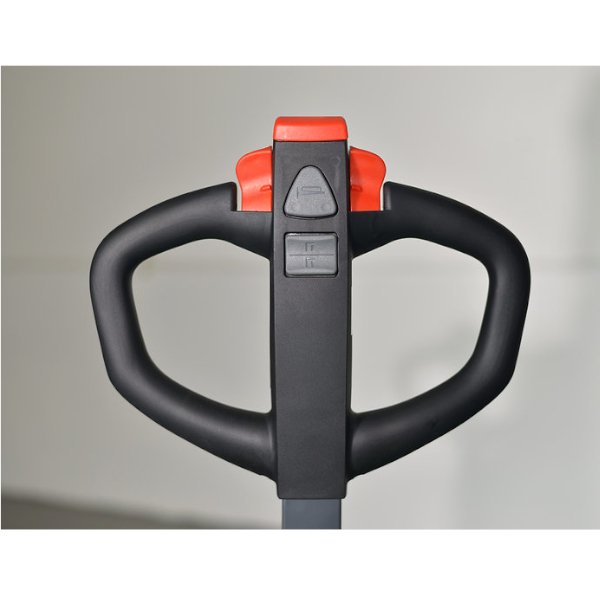

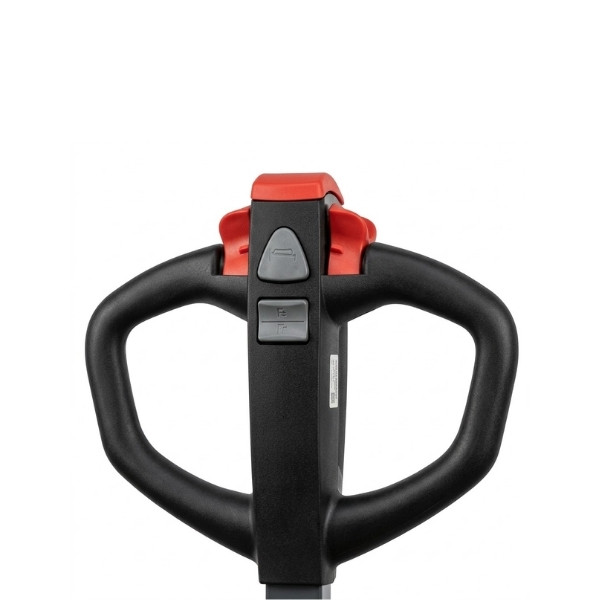

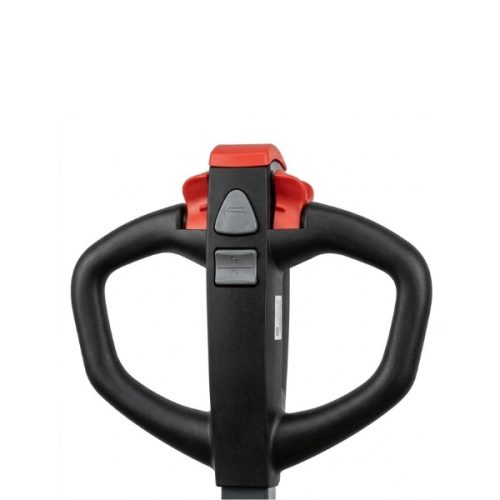

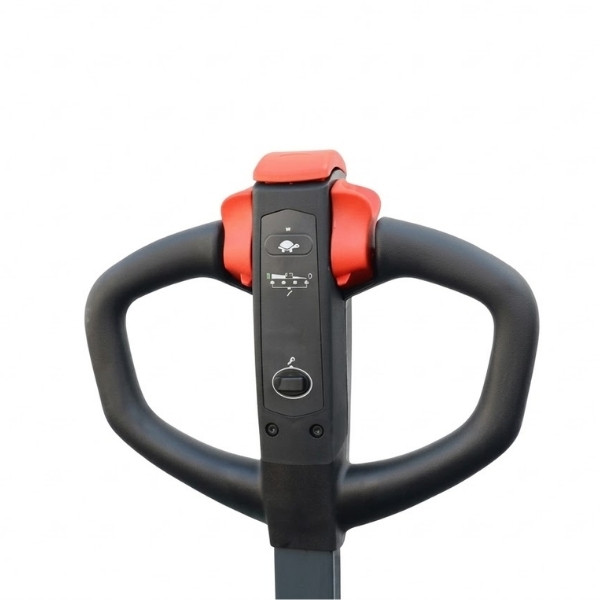

- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
Electric Fork Over Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EB13CD | |
| Load Capacity | lbs | 2800 |
| Maximum Lifting Height | in | 118 |
| Load Center Distance | in | 24 |
| Fork Length | in | 45.28 |
| Single Fork Width | in | 5.59 |
| Overall Fork Width (Inner / Outer) | in | 11.8 / 26.8 |
| Lowered Fork Height | in | 3.54 |
| Turning Radius | in | 55.1 |
| Overall Length | in | 71.7 |
| Extended Mast Height | in | 147.6 |
| Lowered Mast Height | in | 82.3 |
| Battery Voltage / Capacity | V / Ah | 2 12V / 85Ah |
| Internal Charger | V / A | 24V / 15A |
| Lifting Motor | kW | 2.2 |
| Driving Motor | kW | 0.75 |
| Service Weight | lbs | 992 |
