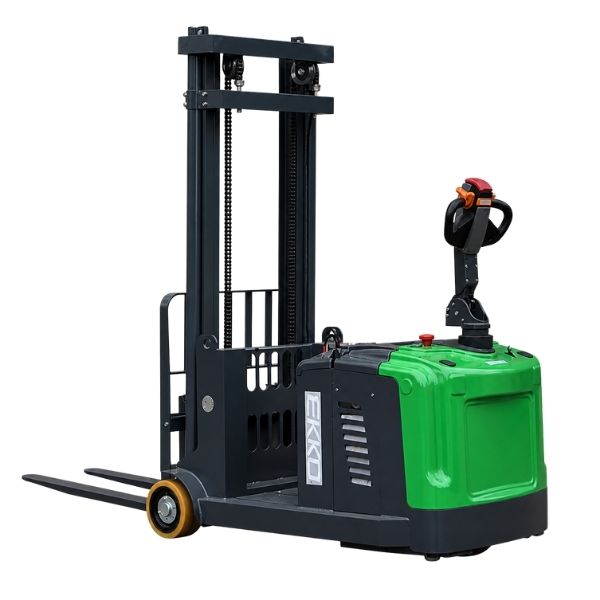

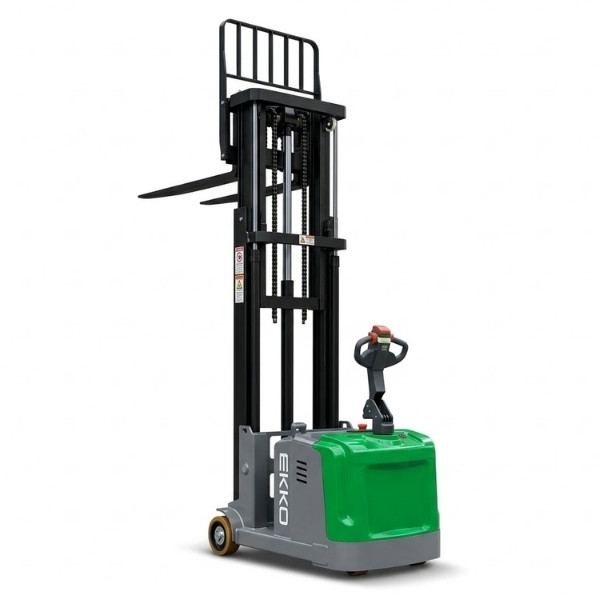

EKKO EK14S-189Li Lithium Counterbalanced Walkie Stacker
The EKKO EK14S-189Li Lithium Counterbalanced Walkie Stacker, equipped with SIDE-SHIFTING capabilities, blends the versatility of a forklift with the efficiency of a walkie stacker. It is the ideal solution for loading and unloading trucks, navigating loading docks, and operating within stock rooms, manufacturing floors, and warehouse environments.
Engineered with high-quality steel and durable components, the EK14S-189Li is built to handle various terrains, heavy usage, impacts, and directional changes. This fully powered stacker delivers reliable, smooth, and confident performance across a wide range of demanding applications.
EK14S-189Li Lithium Counterbalanced Walkie Stacker Main Features
- Load Capacity 3300 lb
- Raised Height 189″ (15.75ft)
- SIDE-SHIFTING
- Adjustable Forks 8.6-28.3″
- Fork Length 45.3″
- Tilt 2/5 Degree
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- EPS (Electronic Power Steering)
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Batteries Included
- 3 Years Limited Warranty
Lithium Counterbalanced Walkie Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK14S-189LI | |
| Lift Type | Electric | |
| Drive Type | Electric | |
| Rated Load Capacity | lbs | 3300 |
| Load Center Distance | in | 24 |
| Wheelbase | in | 47 |
| Service Weight | lbs | 4350 |
| Lifting Height | in | 189 |
| Side Shifting | in | 4 |
| Lowered Mast Height | in | 84.6 |
| Extended Mast Height | in | 226 |
| Mast/Fork Tilt (Forward/Backward) | 2 / 5 | |
| Overall Length | in | 105 |
| Overall Width | in | 39 |
| Fork Size (Thick/Width/Length) | in | 1.4 / 4 / 45.3 |
| Adjustable Fork Width | in | 8.6 28.3 |
| Turning Radius | in | 62 |
| Max Gradeability (Laden/Unladen) | % | 6 / 10 |
| Lifting Speed (Laden/Unladen) | in/s | 4.0 / 5.5 |
| Lowering Speed (Laden/Unladen) | in/s | 5.3 / 4.7 |
| Charger | V / A | 24 / 50 |
| Driving Motor | V / W | AC 24 / 2500 |
| Lifting Motor | V / W | 24 / 3000 |
| EPS Steering Motor | V / W | 24 / 200 |
| Battery | V / Ah | 24 / 150 (Lithium) |
