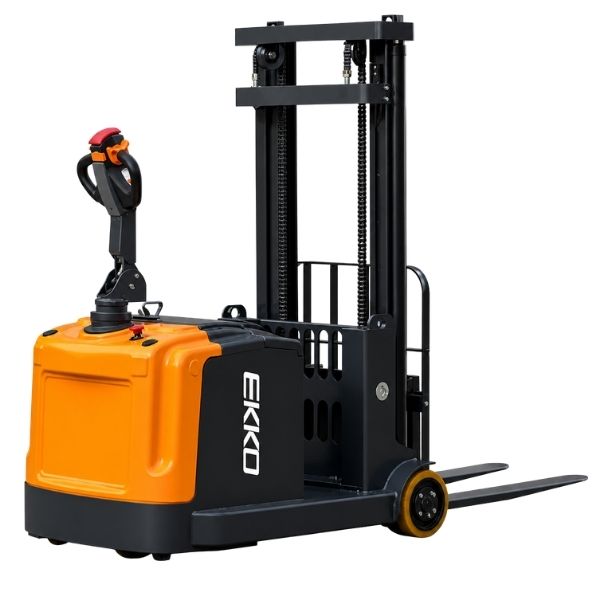

EKKO EK14 Fully Powered Counterbalanced Walkie Stacker
The EKKO EK14 Fully Powered Counterbalance Walkie Stacker combines the maneuverability of a walkie stacker with the strength and versatility of a forklift. Ideal for loading and unloading trucks, navigating loading docks, and operating efficiently in stock rooms, manufacturing floors, and warehouses.
Built with high-quality steel and durable components, the EK14 features robust drive systems engineered to withstand diverse terrains, heavy usage, impacts, and directional changes. Designed for reliable performance and ease of operation, this walkie stacker delivers confident handling for any material handling application.
EK14 Fully Powered Counterbalanced Walkie Stacker Main Features
- Load Capacity 3300 lbs
- Raised Height 118″ (9.83ft)
- Adjustable Forks 8.6-28.3″
- Fork Length 45.3″
- Tilt 2/5 Degree
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- EPS (Electronic Power Steering)
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger
- 3 Years Limited Warranty
Fully Powered Counterbalanced Walkie Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK14 | |
| Drive Type | Electric | |
| Lift Type | Electric | |
| Rated Load Capacity | lbs | 3300 |
| Load Center Distance | in | 24 |
| Wheelbase | in | 47 |
| Lifting Height | in | 118 |
| Free Lift Height | in | 4 |
| Lowered Mast Height | in | 78 |
| Extended Mast Height | in | 155 |
| Mast/Fork Tilt (Forward/Backward) | 2 / 5 | |
| Overall Length | in | 109 |
| Overall Width | in | 39 |
| Fork Size (Thick/Width/Length) | in | 1.4 / 4 / 45.3 |
| Adjustable Fork Width | in | 8.6 28.3 |
| Turning Radius | in | 57 |
| Max Gradeability (Laden/Unladen) | % | 6 / 10 |
| Lifting Speed (Laden/Unladen) | in/s | 4 / 5.1 |
| Lowering Speed (Laden/Unladen) | in/s | 5.3 / 4.7 |
| Charger Voltage / Current | V / A | 24 / 30 |
| Drive Motor | V / W | AC 24 / 2500 |
| Lift Motor | V / W | 24 / 2500 |
| EPS Steering Motor | V / W | 24 / 200 |
| Battery Voltage / Capacity | V / Ah | 24 / 210 (Side) |
| Service Weight | lbs | 3740 |
