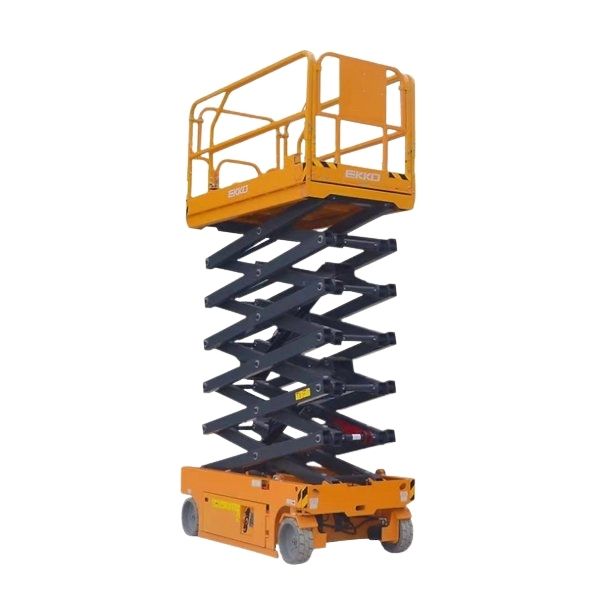

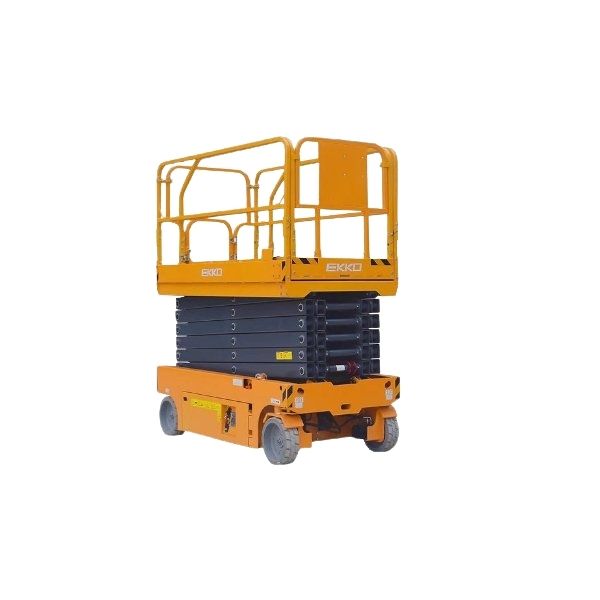

EKKO ES80E Scissor Aerial Work Platform
The EKKO ES80E Scissor Aerial Work Platform features a robust 990-lb capacity in a compact, four-wheel design, enhanced with a Curtis controller for smooth, safe lifting, load transport, and product movement.
Built to meet GB25849 and EN280 standards, this versatile platform ensures operational safety and reliability across warehouses, stock rooms, manufacturing floors, and more. Designed for demanding work environments, the EKKO ES80E delivers the strength, precision, and durability needed to tackle any lifting task with confidence.
ES80E Scissor Aerial Work Platform Main Features
- Load Capacity 990 lb
- Raised Height 26.2′ (315″)
- Lowered Height 90.6”
- Size: Length 89″ x Width 45″
- Steel construction
- 3 Years Limited Warranty
Scissor Aerial Work Platform Specifications

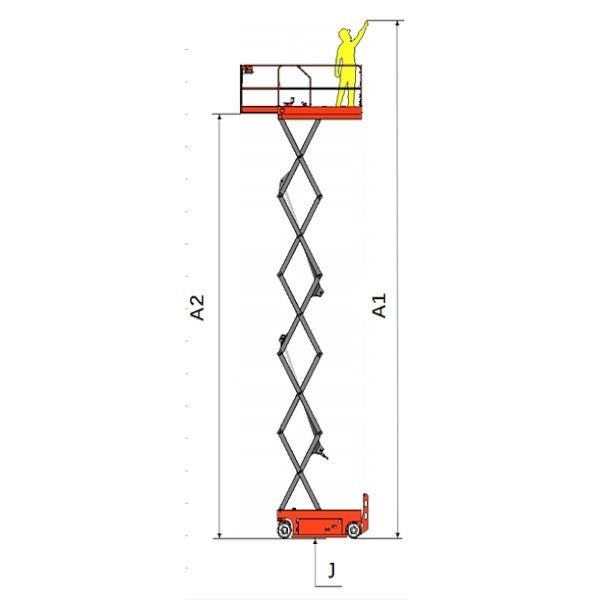

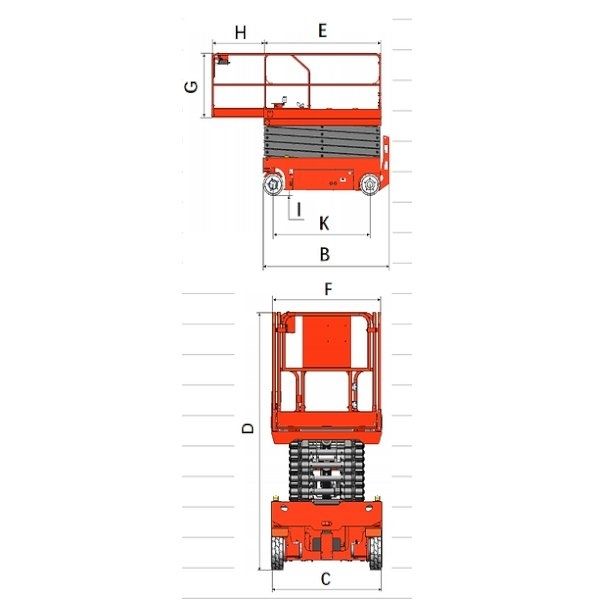

| Specification | Unit | Value |
|---|---|---|
| Model | – | ES80E |
| Max Working Height | A1 (in) | 394” |
| Max Platform Height | A2 (in) | 315″ |
| Overall Length | B (in) | 94.5 |
| Overall Width | C (in) | 45.27 |
| Overall Height (Guardrail Up) | D (in) | 91.5 |
| Overall Height (Guardrail Folded) | – | 65 |
| Platform Size (L x W) | in | 88.58×45.27 |
| Guardrail Height | G (in) | 43.3 |
| Platform Extension Size | H (in) | 39.37 |
| Ground Clearance (Closed) | I (in) | 3.74 |
| Ground Clearance (Lifting) | J (in) | 0.78 |
| Wheelbase | K (in) | 72.83 |
| Maximum Workers (Indoor/Outdoor) | – | 2 / 1 |
| Load Rating | lbs | 990 |
| Extended Platform Load Rating | lbs | 265 |
| Driving Speed (Folded State) | km/h | 0-3.2 |
| Driving Speed (Lifting Condition) | km/h | 0~0.8 |
| Min Turning Radius (Inside) | in | 0 |
| Min Turning Radius (Outside) | in | 86.61 |
| Rise/Fall Time | s | 32/35 |
| Max Tilt Angle (Front/Left/Right) | 3 / 1.5 | |
| Max Wind Speed (Indoor/Outdoor) | m/s | 0/12.5 |
| Max Lateral Force (Indoor/Outdoor) | N | 400 / 200 |
| Gradeability | % | 30 |
| Control Type | – | Proportional Control |
| Actuator | – | Dual Front Wheels |
| Braking Type | – | Double Front Wheels |
| Tire Size/Type | in | 15*5 |
| Lift/Drive Motor Power | kw | 3.3/0.7×2 |
| Battery Voltage/Capacity | V/Ah | 6×4/225 |
| Charger Input Voltage | VAC | 100-240 |
| Charger Output Current | A | 36 |
| Control Voltage | VDC | 24 |
| Hydraulic Tank Capacity | L | 22 |
| Total Weight | lbs | 5412 |
