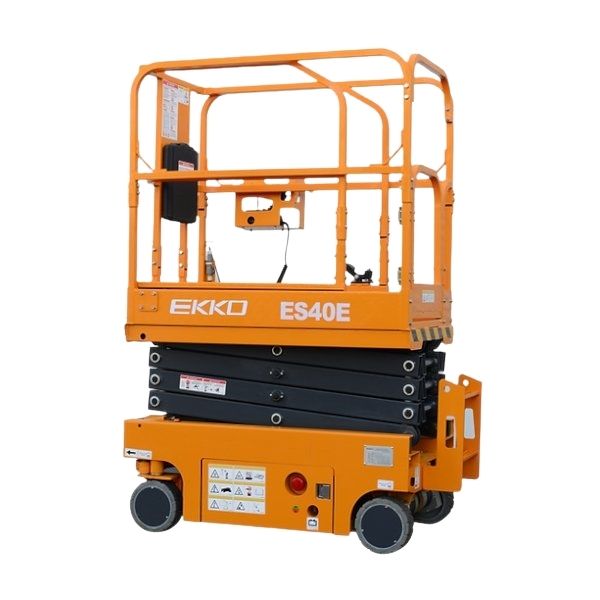

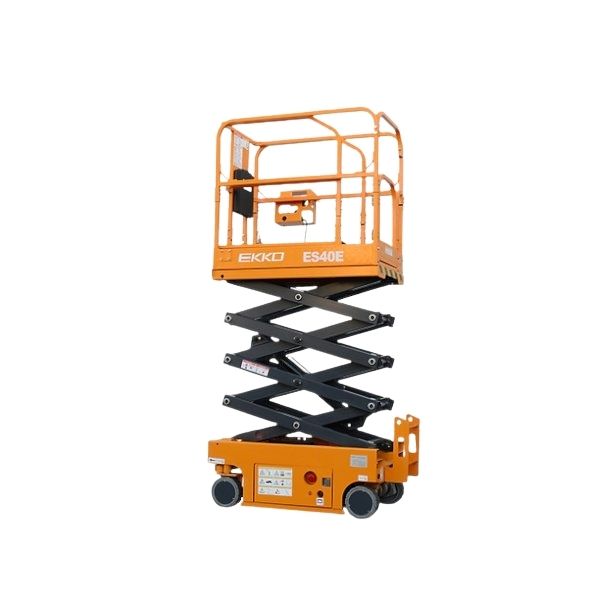

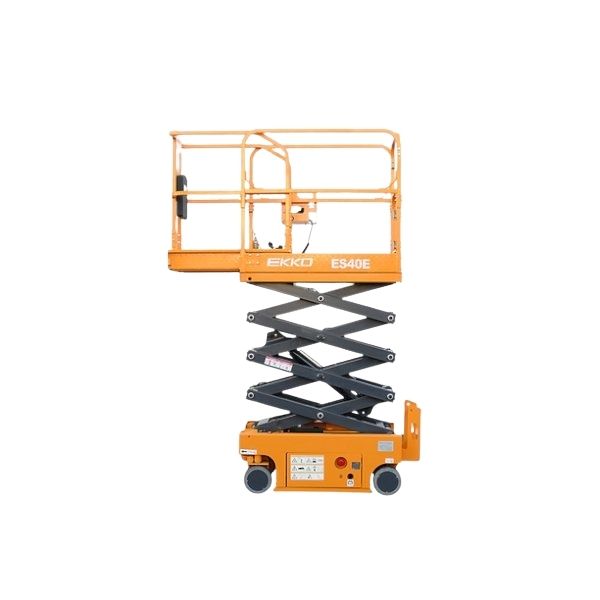

EKKO ES40E Scissor Aerial Work Platform
The EKKO ES40E Scissor Aerial Work Platform offers a 506-lb capacity in a compact, four-wheel design, equipped with a reliable Curtis controller to ensure easy and safe lifting, load transport, and product movement.
Built for efficiency and safety, this platform meets the rigorous GB25849 and EN280 standards, making it ideal for a wide range of industrial and commercial applications. Whether you’re working in warehouses, stock rooms, or manufacturing floors, the EKKO ES40E delivers the strength, stability, and precision needed to get the job done with confidence.
ES40E Scissor Aerial Work Platform Main Features
- Load Capacity 500 lb
- Raised Height 13′ (157″)
- Lowered Height 77”
- Size: Length 57″ x Width 30″
- Steel construction
- 3 Years Limited Warranty
Scissor Aerial Work Platform Specifications
12798
| Specification | Unit | Value |
|---|---|---|
| Model | – | ES40E |

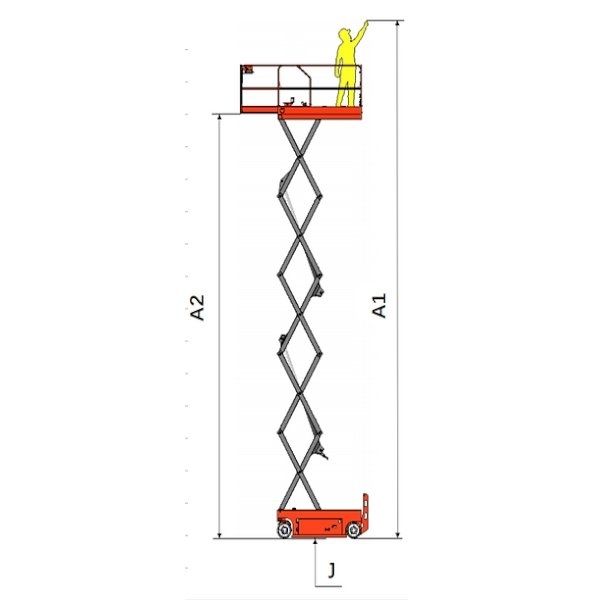

| Max Working Height | A1 (in) | 236.2 |
| Max Platform Height | A2 (in) | 157 |

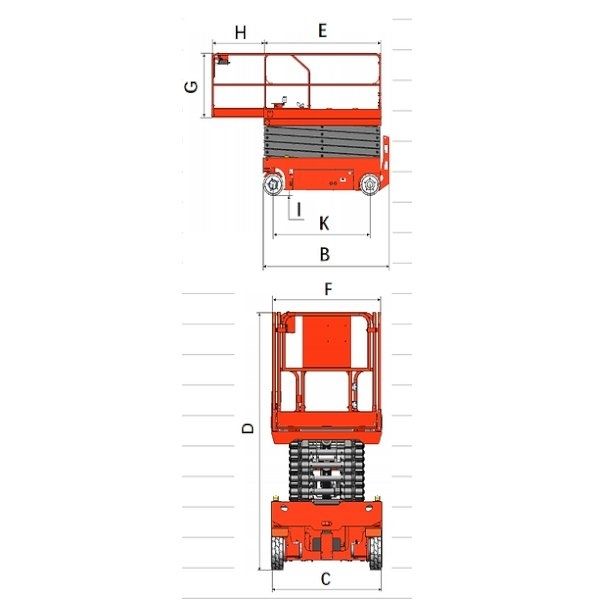

| Overall Length | B (in) | 57.1 |
| Overall Width | C (in) | 29.9 |
| Overall Height (Guardrail Up) | D (in) | 76.8 |
| Overall Height (Guardrail Folded) | – | 63 |
| Platform Size (L x W) | in | 50.4 x 29.1 |
| Guardrail Height | G (in) | 43.3 |
| Platform Extension Size | H (in) | 23.6 |
| Ground Clearance (Closed) | I (in) | 2.36 |
| Ground Clearance (Lifting) | J (in) | 0.59 |
| Wheelbase | K (in) | 40.6 |
| Maximum Workers (Indoor/Outdoor) | – | 2 / |
| Load Rating | lbs | 500 |
| Extended Platform Load Rating | lbs | 220 |
| Driving Speed (Folded State) | km/h | 0~4 |
| Driving Speed (Lifting Condition) | km/h | 0~0.8 |
| Min Turning Radius (Inside) | in | 0 |
| Min Turning Radius (Outside) | in | 61 |
| Rise/Fall Time | s | 25 / 25 |
| Max Tilt Angle (Front/Left/Right) | 3 / 1.5 | |
| Max Wind Speed (Indoor/Outdoor) | m/s | 0 / 0 |
| Max Lateral Force (Indoor/Outdoor) | N | 400 / 0 |
| Gradeability | % | 25 |
| Control Type | – | Proportional Control |
| Actuator | – | Dual Front Wheels |
| Braking Type | – | Double Front Wheels |
| Tire Size/Type | in | 9 x 3.1 |
| Lift/Drive Motor Power | kw | 1.2 / 0.4 x2 |
| Battery Voltage/Capacity | V/Ah | 12×2 / 100 |
| Charger Input Voltage | VAC | 100 240 |
| Charger Output Current | A | 10 |
| Control Voltage | VDC | 24 |
| Hydraulic Tank Capacity | L | 3 |
| Total Weight | lbs | 2046 |
