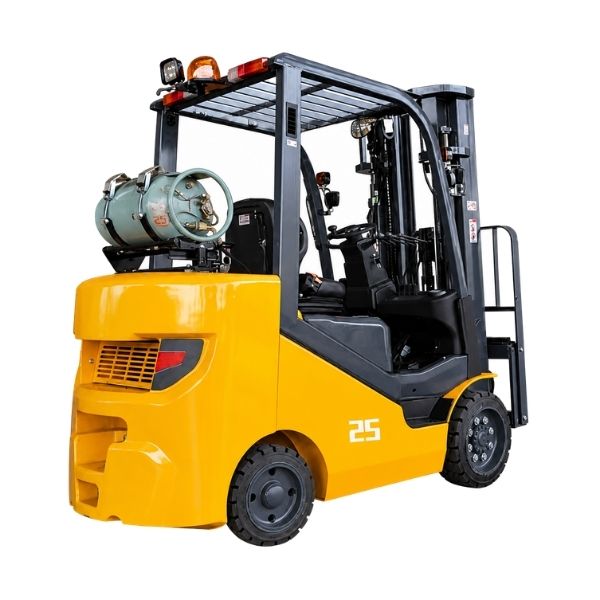

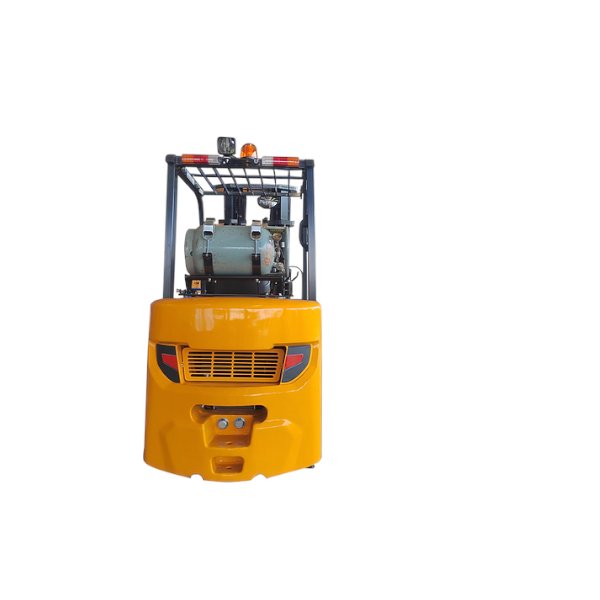

EKKO EK25SLP Liquid Propane 4 Wheel Forklift
The EKKO EK25SLP Liquid Propane 4 Wheel Forklift is designed to meet the demands of material handling, warehousing, and distribution with ease and efficiency. Built with high-quality durable components and equipped with a reliable PSI engine, this forklift is Tier 4 EPA compliant to ensure environmentally responsible performance. Offering exceptional strength, maneuverability, and value-driven pricing, the EK25SLP is a smart choice for businesses seeking power and productivity in one package.
EK25SLP Liquid Propane 4 Wheel Forklift Main Features
- The operating space is enlarged and features a heightened overhead guard, utilizing a large arc-shaped front leg.
- A semi-suspension seat, a small steering wheel, electro-hydraulic direction-changing, and an automobile-type double combined switch effectively enhance the driving comfort level.
- The cushion connection and the entire suspension cab can effectively absorb the vibrations of the truck.
- Lowering a damping device inside the lifting system reduces the mast’s shock and vibration, avoiding noise caused by goods falling to the ground.
- Small turning radius makes steering flexible and easy.
- With an optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
- The engine satisfies the CARB 4 regulation
Liquid Propane 4 Wheel Forklift Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK25SLP | |
| Drive type | LPG | |
| Type of operation | Propane | |
| Load Capacity | LBS | 5000 |
| Load Center | in | 24 |
| Lift height | in | 189 |
| Wheelbase | in | 58 |
| Service Weight | LBS | 9370 |
| Tire material | Pattern Cushion Tire | |
| Wheel size (Front / Rear) | in | 21×7-15 / 16×6-10.5 |
| Service Brake | Hydraulic Floor Pedal | |
| Overall width | in | 42 |
| Overall length with forks | in | 136.8 |
| Overall length without forks | in | 94.5 |
| Min ground clearance (mast) | in | 3.5 |
| Max traveling speed (loaded/unloaded) | mph | 10.8 / 10.8 |
| Mast Overall height | in | 85 |
| Free lifting height | in | 44 |
| Backrest height (from the surface of the forks) | in | 40 |
| Fork Size | in | 42 x 4.8 x 1.57 |
| Battery | V / Ah | 12/60 |
| Engine Model | Mitsubishi 4G64 (PSI Engine) | |
| Engine rated power | HP / rpm | LPG: 63/2700 |
