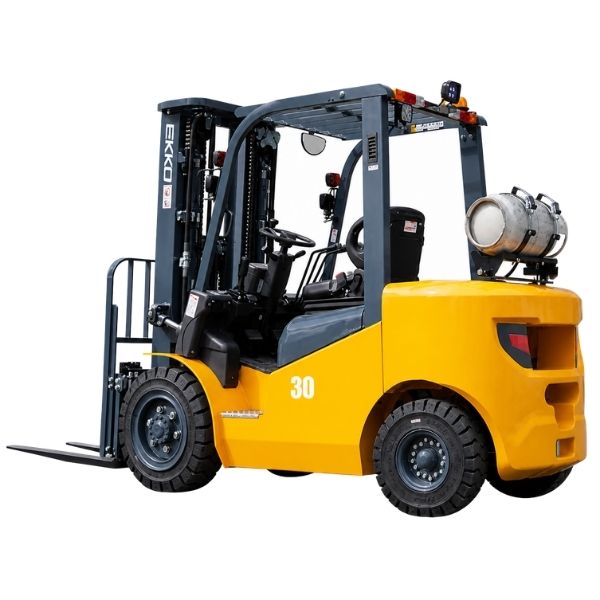

EKKO EK30LP Liquid Propane 4 Wheel Forklift
The EKKO EK30LP Liquid Propane 4 Wheel Forklift is designed to tackle all your material handling, warehousing, and distribution requirements with precision and power. Built with high-durability construction and powered by a robust Kubota engine, this forklift meets Tier 4 EPA compliance standards for clean and efficient performance. Offering outstanding reliability, maneuverability, and competitive pricing, the EK30LP is the perfect solution for businesses that demand strength without sacrificing value.
EK30LP Liquid Propane 4 Wheel Forklift Main Features
- Multifunction instrument panel – motoring for Safety and efficient operation
- Operator compartment- nonslip entrance step, wider access & leg room.
- Adjustable steering column limiting operator arm and shoulder fatigue.
- Excellent Operator visibility.
- Integral Heavy-Duty Chassis- ensuring driver protection
- Steer axle pivots to 80 degrees for tighter turning radius.

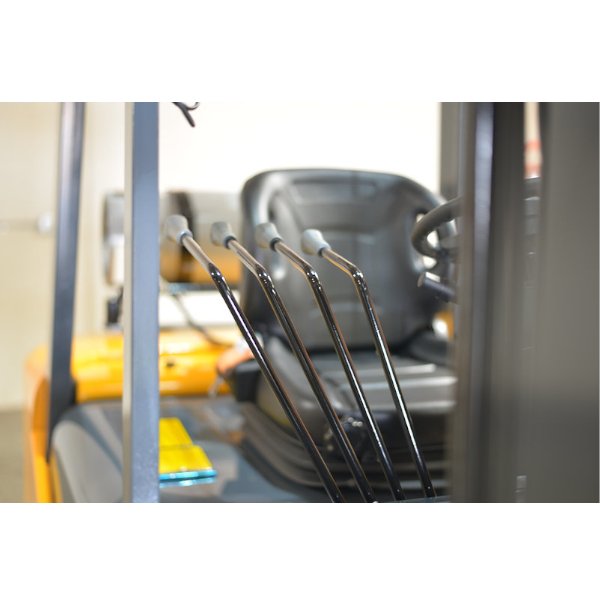

- Hydraulic controls
Liquid Propane 4 Wheel Forklift Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EK30LP | |
| Drive type | LPG | |
| Type of operation | Propane | |
| Load Capacity | LBS | 6000 |
| Load Center | in | 24 |
| Lift height | in | 189 |
| Wheelbase | in | 69 |
| Service Weight | LBS | 10320 |
| Tire material | Pneumatic | |
| Wheel size (Front / Rear) | in | 28×9-15-12PR / 6.50-10-10PR |
| Service Brake | Hydraulic Floor Pedal | |
| Overall width | in | 48.2 |
| Overall length with forks | in | 150.3 |
| Overall length without forks | in | 108.2 |
| Min ground clearance (mast) | in | 4.53 |
| Max traveling speed (loaded/unloaded) | mph | 11.8 / 11.8 |
| Mast Overall height | in | 89.40 |
| Free lifting height | in | 40.9 |
| Backrest height (from the surface of the forks) | in | 46.54 |
| Fork Size | in | 42.13 x 4.92 x 1.77 |
| Battery | V / Ah | 12/80 |

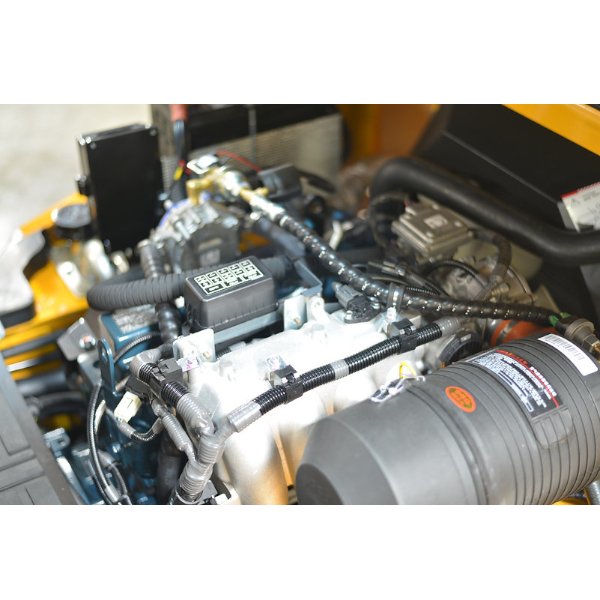

| Engine Model | Kubota WG2503 | |
| Engine rated power | HP / rpm | LPG 58.3 / 2600 |
