ABACO Elevating Hand Cart EHC3541

$1,635.00

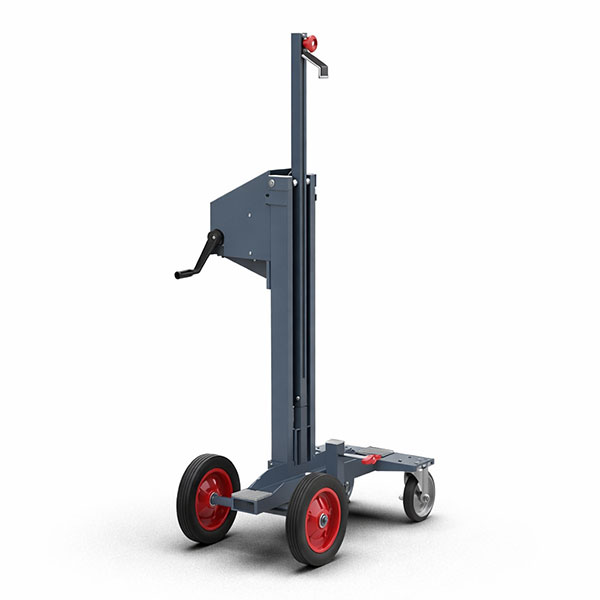

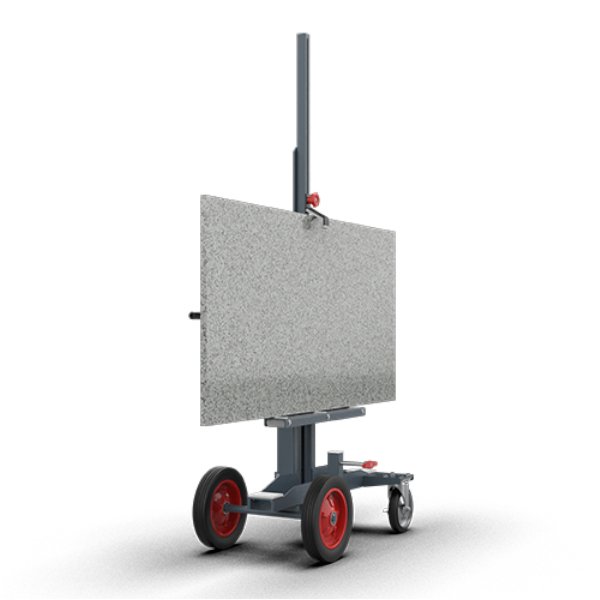

ABACO Elevating Hand Cart is designed for raising, loading, and unloading finished pieces safely with minimal labor. It is constructed of a vertical steel channel where pieces can be raised and lowered by the use of a hand crank

ABACO Elevating Hand Cart EHC3541

ABACO Elevating Hand Cart is designed for raising, loading, and unloading finished pieces safely with minimal labor. It is constructed of a vertical steel channel where pieces can be raised and lowered by the use of a hand crank.

Among the ABACO Elevating Hand Cart main features, we find:

  • The hand crank  is located on the controlling unit away from the pieces being handled for safety purposes. A rubber lined channel can accommodate pieces up to 2 3/4 inches (7cm).
  • Two pneumatic tires and two self-locking swivel casters are positioned just outside the steel frame of the base for added stability. The Elevating Hand Cart has the ability to elevate pieces from 1 foot up to 3 1/2 feet where they can easily load onto a truck bed for transport to and from job sites.
  • Seat length: 27 1/inches (700mm)
  • Maximum Lifting Height: 41 1/4 inches (1,050mm)
  • Maximum Stone Width: 47 1/4 inches (1,200mm)
  • Maximum Stone Thickness: 2 3/4 inches (70mm)

ABACO Elevating Hand Cart Technical Specifications:

SKULength Inches (mm)Width Inches (mm)Height Inches (mm)Net Weight Pounds (kg)W.L.L. Pounds (kg)
EHC354135 3/8 (900)23 5/8 (600)59 – 94 1/2 (1500 – 2400)165 (75) 440 (200)





Weight165 lbs
Dimensions36 × 24 × 60 in
Select Universal Slab Buggy Size

USB-6WM 59" L 29" W 58" H, USB-6WL 71" L 29" W 68" H
