Aardwolf Slab Rack Kit (includes 16 poles 47″1/4 high)

Aardwolf Slab Rack Kit

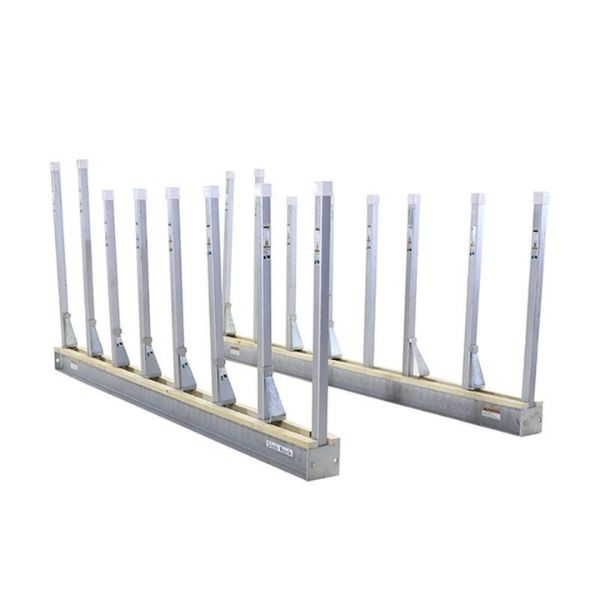

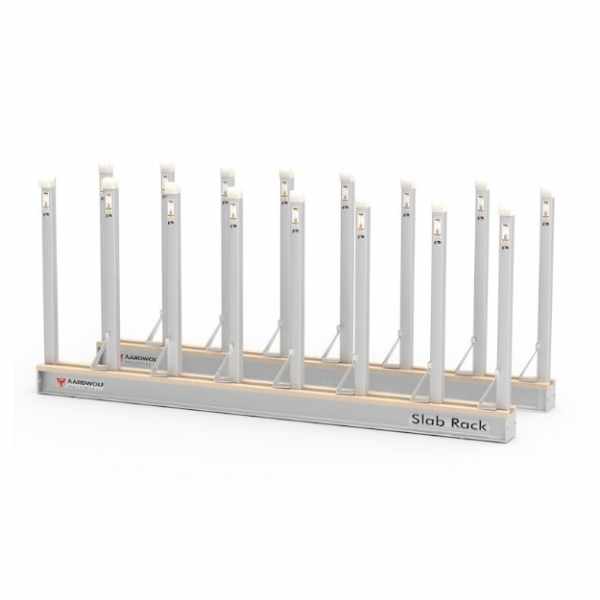

The Aardwolf Slab Rack Kit includes a Slab Rack ASR01, which consists of a pair of galvanized steel rails 9’10” long, together with galvanized square steel tube posts, plus 16 poles ASR07, 47″ 1/4 high. The square posts can be positioned anywhere along with the rack. All posts are manufactured from square tube steel with a minimum yield strength of 345Mpa, ensuring safety for the vertical storage of slab bundles.

Aardwolf Slab Rack Kit Main Features

Among the features of this wonderful Slab Rack, we find:

• The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the slab thickness and dimensions.
• Aardwolf has developed a simple calculator specifically for the users to calculate the slab storage capacity.
• Post also available in 55″ and 63″ height.

The fabrication of Aardwolf Slab & Bundle Racks

Aardwolf Slab Rack ASR01 Technical Specifications:

Feature	Metric (mm-kg)	Imperial (inch-lb)
Galvanized steel rail	2979x164x165	117.3”x6.4”x6.5”
Rack height	165	6.5”
Square hole	52	2”
Increment	57	2.2”
Square tube post	50	2”
Posts wall thickness	5	0.2”
Square rubber post	60	2.4”
Rectangular tube post	50×25	2”x1”
Timber battens per rail	50×25	2”x1”
Net weight	78/PCS	171
Gross weight	78.3	172
Packaging dimension	2980x165x165	117.3”x6.5”x6.5′

Aardwolf Slab Rack Pole ASR07 Technical Specifications:

Feature	Metric (mm-kg)	Imperial (inch-lb)
Yield strength	345Mpa	–
Wall thickness	5	0.2”
Net weight	8	14.3
Gross weight	8.2	14.8
Post dimension	50x50x1,200	2”x2”x47.2”

Working Load Limit

You can use the following calculator to determine the Post Storage Capacity.

Calculate Post Storage Capacity

(If your screen is small, you can open the calculator on a new page by clicking here)

Warning: Do not use the Aardwolf Slab Rack Storage Calculator to calculate the storage capacity of competitor’s posts as they may use posts with a different profile and steel of lower yield strength.
