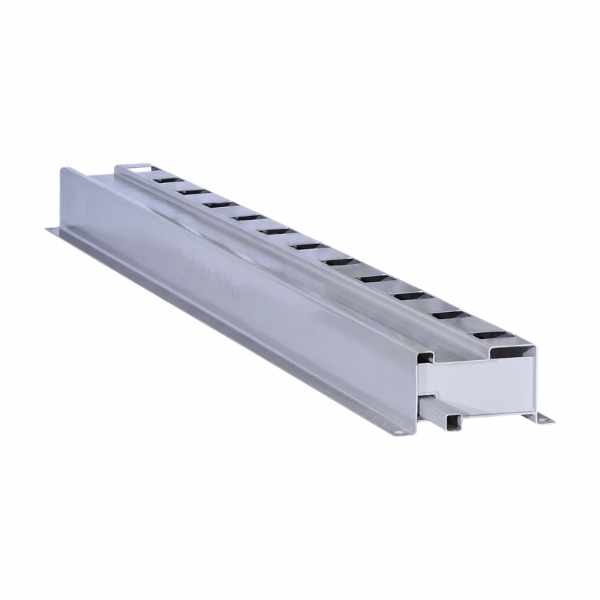

GROVES 90” Long Outside Rail with Wood Slot

$380.00

The GROVES 90” Long Outside Rail with Wood Slot is a premium solution for secure and efficient material storage. Engineered with innovation in mind, these outside rails feature strategically placed slots designed to accommodate a 2×4, offering enhanced protection for both the stored material and the rail surface.

GROVES 90″ Long Outside Rail with Wood Slot

The GROVES 90″ Long Outside Rail with Wood Slot is a premium solution for secure and efficient material storage. Engineered with innovation in mind, these outside rails feature strategically placed slots designed to accommodate a 2×4, offering enhanced protection for both the stored material and the rail surface. The rails boast 2.5″ square holes spaced 5″ apart on the top, reinforced by a steel plate with identical holes welded and boxed inside, ensuring unparalleled durability and stability. Shipped with an 11″ connector tube for seamless alignment of rails in a straight line, installation is hassle-free. It’s important to note that the overall usable height of the post is 5.5″ less than listed due to assembly, ensuring accurate planning for your storage needs. For added security, .5″ holes on the bottom flange allow accessible floor securing. With a maximum weight allowance of 9,000 lbs. per bundle (4,500 lbs. per post), these rails offer robust support for various materials. Patent #7143901 underscores the innovative design and engineering excellence behind the GROVES 90″ Long Outside Rail with Wood Slot, making it the ideal choice for your storage requirements.

GROVES 90″ Long Outside Rail with Wood Slot Main Features

  • Outside rails are designed with slots to hold a 2×4. This helps protect the material being stored as well as the rail surface.
  • Outside rails have 2.5″ square holes spaced 5″ apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1″ up from the bottom.
  • Rails shipped with an 11″ connector tube for butting rails together in a straight line.
  • Note: When assembled, the overall usable height of the post is 5.5″ less than listed. For example, a 72″ post will be 66.5″ above the top of the outside rail.
  • Use .5″ holes on the bottom flange to secure the floor rails.
  • Maximum Weight Allowed Per Bundle 9,000 LBS. (4,500 LBS. PER POST)
  • Patent # 7143901
Weight107 lbs
Dimensions11 × 5.5 × 90 in
Brand

Groves
