GROVES Outside Rail with optional Easy Slide

$249.00

The GROVES Outside Rail with optional Easy Slide is a revolutionary storage solution designed to accommodate a variety of materials, including loose liters, insulated glass, tempered glass, plastic sheets, shower doors, and more. With its patented design (Patent # 7143901), this rail system provides unparalleled versatility and functionality in your workshop or warehouse.

GROVES Outside Rail with optional Easy Slide

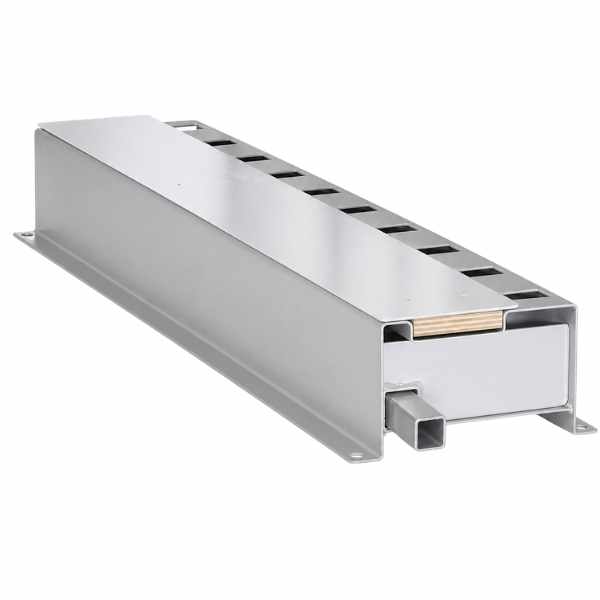

The GROVES Outside Rail with optional Easy Slide is a revolutionary storage solution designed to accommodate a variety of materials, including loose liters, insulated glass, tempered glass, plastic sheets, shower doors, and more. With its patented design (Patent # 7143901), this rail system provides unparalleled versatility and functionality in your workshop or warehouse. The optional Easy Slide feature, comprising low-friction material mounted to the rails and posts, ensures effortless sliding of products in and out of the racks, enhancing efficiency and accessibility. Featuring 2″ square holes spaced 4″ apart on the top, these outside rails have a steel plate for added reinforcement and support. Additionally, each rail is shipped with an 11″ connector tube, facilitating easy assembly and alignment for a seamless storage setup. It’s important to note that when assembled, the overall usable height of the post is 5.5″ less than listed, ensuring accurate measurements for your storage needs. With the GROVES Outside Rail with optional Easy Slide, you can streamline your storage processes and maximize efficiency while keeping your materials securely organized and accessible.

GROVES Outside Rail with optional Easy Slide Main Features

  • Patent # 7143901
  • Store loose liters, insulated glass, tempered glass, plastic sheets, shower doors, and more. The center rail with an easy slide must support the glass when sliding individual pieces in and out of the racks.
  • Easy Slide, a low-friction material, is mounted to the rails and posts to facilitate product sliding in and out.

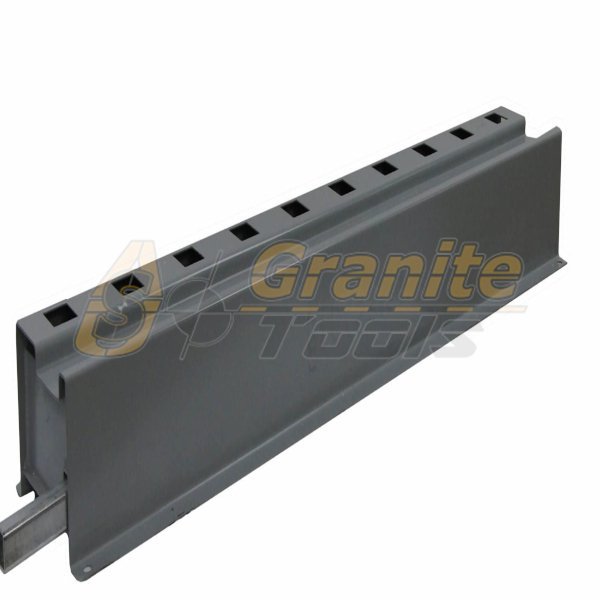

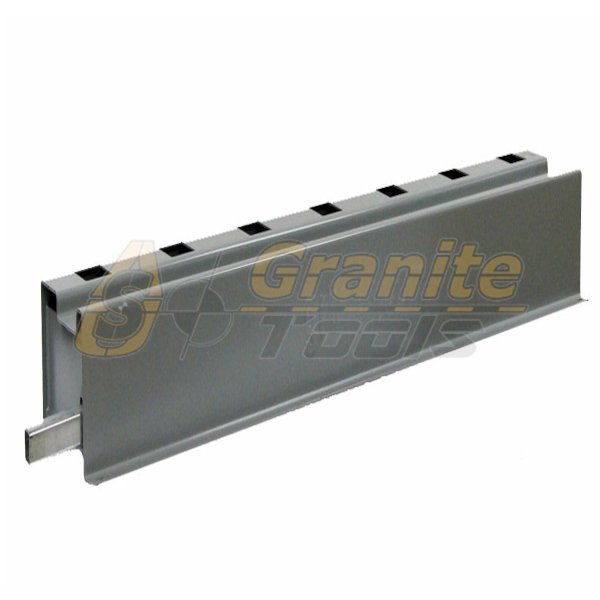

  • Outside rails have 2″ square holes spaced 4″ apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1″ up from the bottom.
  • Note: When assembled, the overall usable height of the post is 5.5″ less than listed. For example, a 60″ post will be 54.5″ above the top of the outside rail.

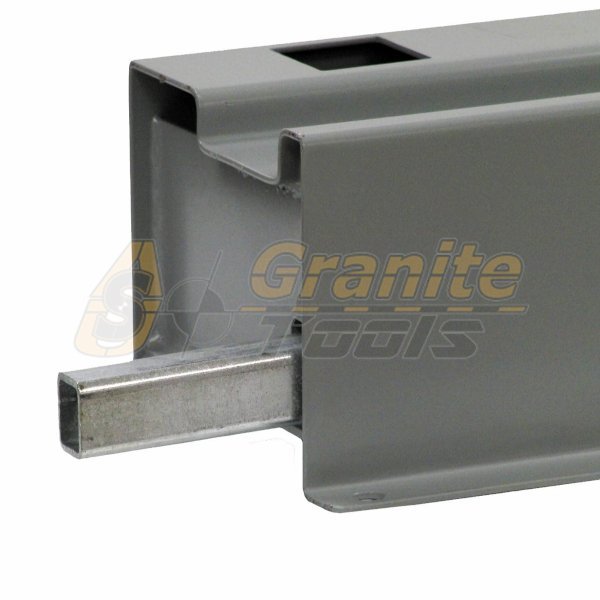

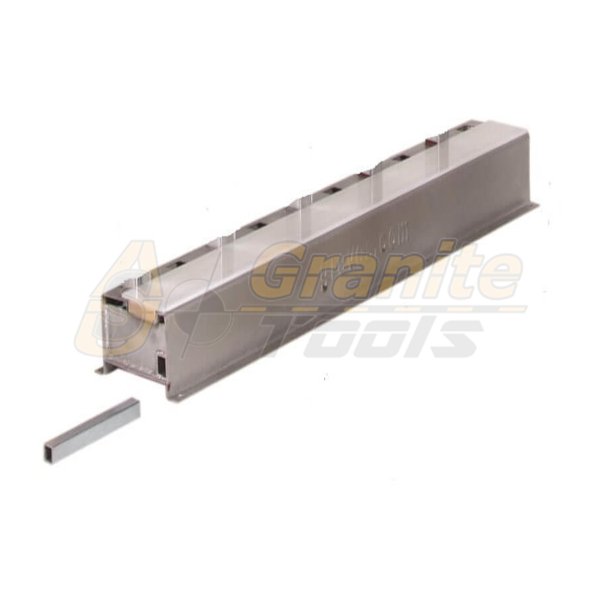

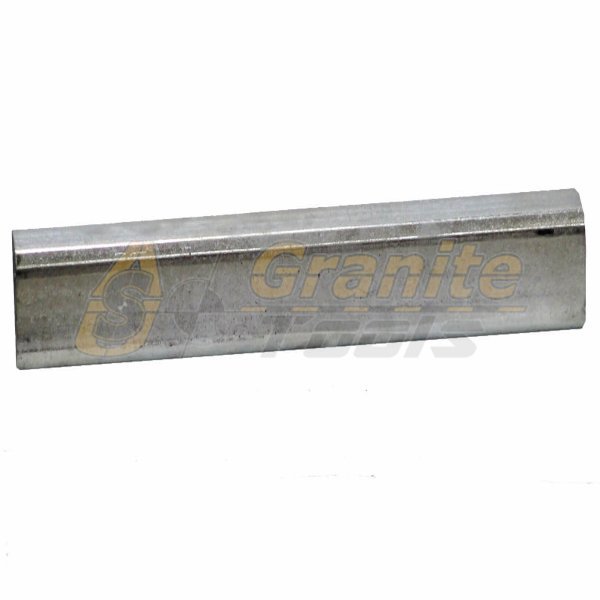

  • Rails shipped with an 11″ connector tube for butting rails together in a straight line.

Safety Warning

  • Use .5″ holes located on a bottom flange for securing rails to the floor.
  • Maximum Weight Allowed Per Bundle 4,000 LBS. (2,000 LBS. PER POST)
Weight60 lbs
Dimensions11 × 5.5 × 60 in
