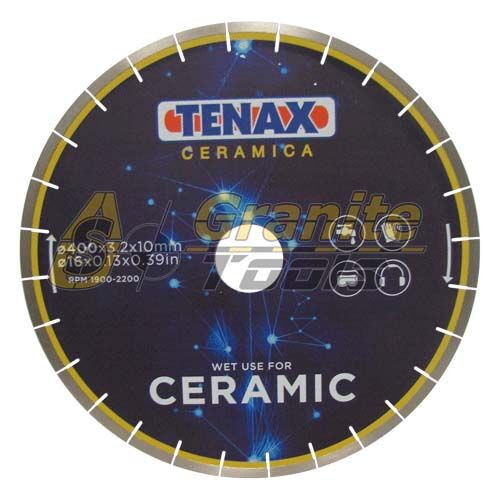

Tenax Ceramic and Porcelain Bridge Saw Blade

$289.89$509.99

Tenax Ceramic and Porcelain Bridge Saw Blade are the specific blades for particular slabs, sheets, or tiles. Tenax has developed a series of diamond blades designed for working on sintered materials.

CERAMIC
SKU: N/A Category: Tag:

Tenax Ceramic and Porcelain Bridge Saw Blade

Tenax Ceramic and Porcelain Bridge Saw Blade are the specific blades for particular slabs, sheets, or tiles. It has developed a series of diamond blades designed for working on sintered materials. This ceramic porcelain cutting blade is made for cutting sintered materials like ceramic and porcelain.

Sintered materials are diverse. However, they are generally very hard materials that require specific specifications for successful cutting. This ceramic porcelain diamond bridge saw blade is designed for cutting porcelain countertops and other porcelain materials. Yet, that is not the only material this blade can cut. Other sintered materials are extremely hard like porcelain and this blade may work well on those materials as well.

You might also want to check our extensive line of Tenax Blades.

Ceramic/Porcelain Blade Bridge Saw Blade Specifics

    • Specifically Marketed to Sintered Material Fabricators
    • 2150-2500mm RPM
    • Feed Rate for Straight Cut: 800-2000mm Per Minute
    • Feed Rate for Miter Cut: 500-1400mm Per Minute
    • Standard 2.3mm Core Thickness

Technical Specifications

Porcelain Tile ThicknessRPM Ø360RPM Ø410Feed Speed LM/Min
3-4.9mm2,150-2,5001,900-2,2001.5-1.8
5-9mm2,150-2,5001,900-2,2001.2-1.5
10-12mm2,150-2,5001,900-2,2001.0-1.2
13-20mm2,150-2,5001,900-2,2000.8-1.0
Suggestion: While entering and exiting the cut, reduce the feed speed by 40-50%.While cutting at 45°, reduce the feed speed by 40%.
WeightN/A
DimensionsN/A
Select Size

14" Diameter, 16" Diameter, 16″ Diameter XXL, 16″ Diameter – 45° Miter Blade

Brand

Tenax

Reviews

There are no reviews yet.

Be the first to review “Tenax Ceramic and Porcelain Bridge Saw Blade”
