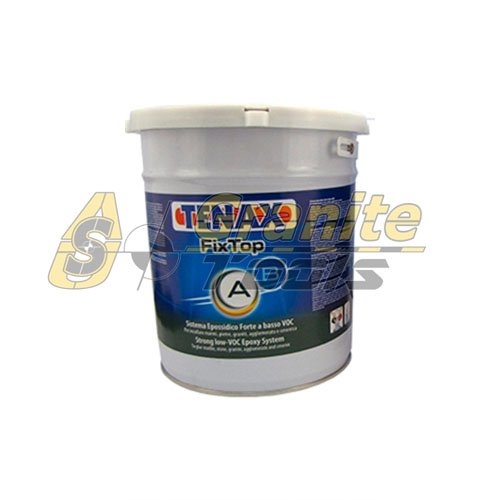

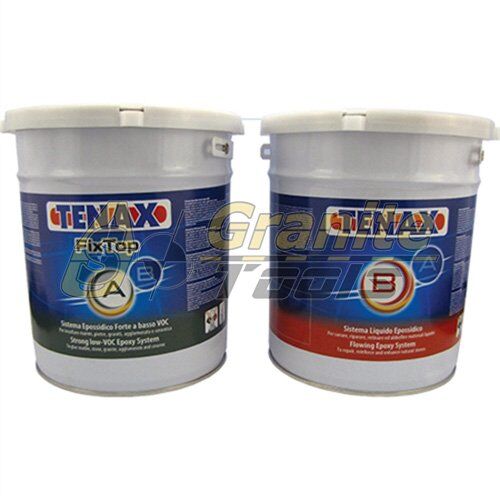

Tenax Fixtop Epoxy Setting Adhesive
Tenax Fixtop Epoxy Setting Adhesive is a true 100% two-part epoxy glue not water-based. It is very easy to mix and spread. Suitable for gluing and bonding marble, granite, stones, mosaics, porcelain, and ceramics as well as hardwood, cement board, laminate, and plywood. Works best when applied in a thin layer. Use to bond metal to stones, concrete to metal, ceramic to stone, stone to honeycomb panels. Does not dissolve or break down in water so it is great for shower applications and won’t delaminate. No issues with expansion or contraction. For indoor and outdoor use.
Outstanding Epoxy Thinset Material
- Mosaics
- All Stone
- Ceramic
- Porcelain
- Indoor & Outdoor
- Shower Applications
You might also want to check the extensive line of Tenax Adhesives.
Instructions For Use
Make sure the surface to be treated is completely dry and clean. Keep the glue and hardeners in their original cans. If using an automatic dosing pump avoid contact with metals made of copper, brass, or similar metals which may rust. Avoid the use of PVC plastic. Use only plastic that is corrosive resistant. Measure out, in either weight or volume, the correct amounts of part A and part B. Mix well using clean tools. Best when applied in a thin layer. Use acetone or butyl acetate to clean tools.
Technical Information for Tenax Fixtop Epoxy Setting Adhesive
| Technical Data | |
|---|---|
| Viscosity Part A cps 77° | Thixotropic paste |
| Viscosity Part B cps 77° | Thixotropic paste |
| Density Part A/Part B at 77° gr/cm 3 | 1.4/1.37 |
| Aspect Part A / Aspect Part B | Straw Paste / Straw Paste |
| Aspect Resin Hard | Beige |
| Mixing ratio resin + hardener in weight | 100 + 100 = Total 200 |
| Gel time in bulk at 77° (100 gr resin + hardener) | Approximately 2 hours 30 minutes |
| Tacky free in a thin layer at 77°; 50% relative humidity | Approximately 5-6 hours |
| Tacky free in a thin layer at 77°; 10% relative humidity | Approximately 3 hours |
| Hardness in Shore D (1) ASTM D 2240 | 79 |
| Glass transition temperature Tglass (ASTM E1545) (1) | N.A. |
| Peeling test with glass fiber on marble (ASTM D3167) (1) | 1,0 N/mm |
| Adhesion force on marble (ASTM D4541)(1) | 14 Mpa |
| Adhesion force on glass (ASTM D4541)(1) | 14 Mpa |
| Weathering test on climatic chamber Qsun, (ASTM D904), 3 years of outdoor condition, light+rain+ thermal shock | Passed, no detachment of resin from the support |
| Yellowing test on the Xenon chamber 3 years (ISO11341) | Medium |
| Minimum reaction temperature | +50° |
| Minimum temperature of use after hardening | -77° |
| Maximum temperature of use after hardening | +140° |
| Working time at 77° (time for polishing or cutting) | 48 hours |
Shelf Life:
Keep the containers closed after use. Keep away from heat, humidity, and sunlight. This product will last 2 years under normal conditions between 65°s and 77°.
Safety:
Please read the safety data sheet before use and follow the product instructions.
