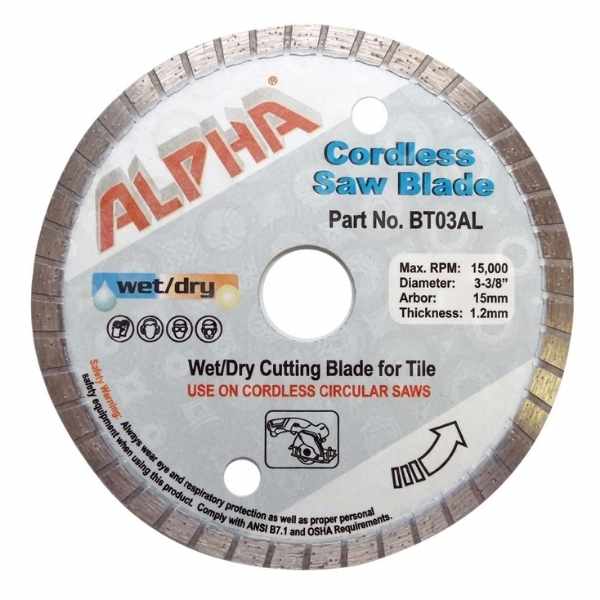

Alpha Cordless Saw Blade for Tile
Alpha Cordless Saw Blade for Tile is engineered for precision and convenience, making it the perfect choice for both homeowners and semi-professional users. Designed for wet and dry cutting of ceramic tile, this blade delivers smooth, chip-free results with ease. Its turbo style rim ensures efficient cutting performance across most ceramic tiles, while maximizing the potential of your battery-powered saw. Compatible with popular brands such as Makita, Panasonic, and Skil, this blade offers the ideal balance of cutting power and portability. Whether for quick DIY projects or professional-quality work, the Alpha Cordless Saw Blade for Tile ensures reliable performance every time.
Cordless Saw Blade for Tile Main Features
- Can Be Used Wet or Dry
- Ideal for Switch Box Cut-Out and Trimming
- Perfect for Ceramic and Stone Tiles
- Specially Designed for Cordless Saw
- Chip-Free Wet/Dry Cutting for Tile
- Cordless Saw Blade for Tile
Cordless Saw Blade for Tile Specifications
| Part No. | Size | Thickness | Maximum RPM | Arbor(s) |
|---|---|---|---|---|
| BT03AL | 3-3/8″ | 1.2mm | 1,500 | 15mm |
Alpha Cordless Saw Blade for Tile Related Documents
| Document Type | Link |
|---|---|
| Safety Data Sheet | Diamond Tools Cutting Blade |
| Reference | Cordless-Saw-Tile_HelpfulHints |
| Reference | Cordless-Saw-Tile_HowToUse |
| Flyer | Cutting System Overview |
| Flyer | Blade Selection Guide |
Additional Information
| PartNo | UPC Code | Pkg. Weight (lbs) | Package Dimensions | Commodity Code | Country Of Origin |
|---|---|---|---|---|---|
| BT03AL | 749173450327 | 0.20 | 4.5in x 4.5in x 0.5in | 8202.91.0000 | Japan |
Frequently Asked Questions
Which way do I install the blade on my tool?
The proper blade direction will be found on the sticker label on the blade. Install the blade so that the blade will follow the directional arrows on label. Another way to check the rotation of the blade is to examine the diamond bond tails in the cutting edge. The bond tail behind each diamond should be pointing the opposite direction of blade rotation. If the blade is installed incorrectly, the bond tails will reverse direction, which may cause some premature wear.
What materials can I cut with the Cordless Saw Blade for Tile?
This blade is primarily designed for ceramic tiles.
What brand battery power tools can I use this Cordless Saw Blade for Glass?
Makita, Panasonic or Skil Saws are the tools of choice for this 3-3/8” blade for Tile. These power tools have a refillable water coolant bottle for supplying water to blade during cutting applications.
Can I use this blade for dry application?
Yes. This Cordless blade for Tile can be used dry; however, we recommend wet cutting to enhance to life and performance of this blade.
The speed of my cut is slowing down. What can I do to improve it?
The diamonds are rounding over or glazing causing the blade to loose its cutting ability. You need to re-dress the blade using a soft abrasive material such as a dressing stone or a concrete block.
What is the maximum RPM on which I can use the Cordless Saw Blade for Tile?
This 3-3/8” diameter blade should not exceed 1,500rpms.
What is the arbor size of the Cordless Saw Blade for Tile?
The arbor size of this blade is 15mm.
What is the maximum blade cutting depth of the Cordless Saw Blade for Tile?
The maximum dept of cut using this blade is 5 3/64”
