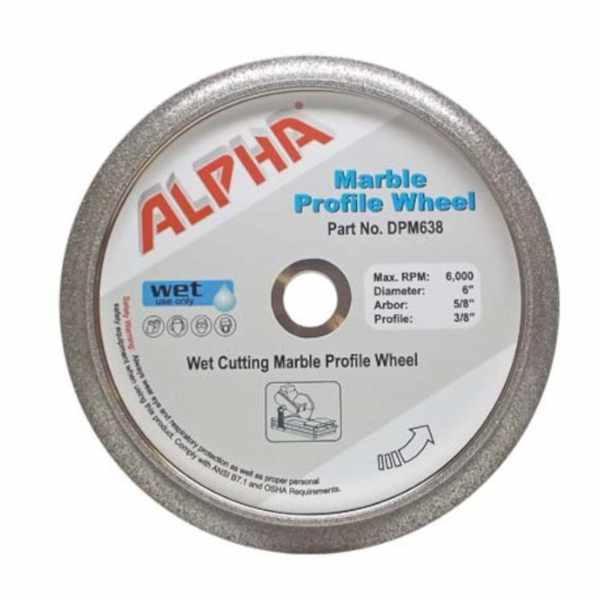

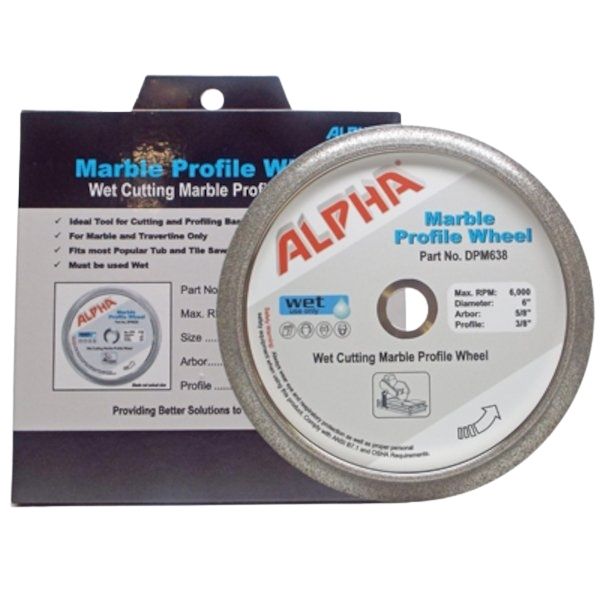

Alpha Marble Profile Wheel
Alpha Marble Profile Wheel is engineered to cut and profile marble tile in a single pass, offering greater efficiency than standard profile wheels that only shape the tile. Designed for use with 6” tub and tile saws, it has long been a trusted choice among tile installers, particularly for creating precise and smooth tile baseboards. Built with premium-quality diamonds and a matrix optimized for wet cutting, this wheel ensures long-lasting performance and a clean finish on both marble and agglomerated marble tile. With its durability, smooth cutting action, and time-saving design, the Alpha Marble Profile Wheel is the ideal solution for professionals seeking accuracy, speed, and reduced material waste.
Marble Profile Wheel Main Features
- Cut and Profile Marble Tile in One Pass
- Fits Tub and Tile Saws
- Ideal Tool for Cutting and Profiling Tile Baseboards
- High-Quality Diamonds and Matrix Best Suited for Wet Cutting Marble and Agglomerated Marble Tile
- Save Time, Money and Reduce Waste
Alpha Marble Profile Wheel videos

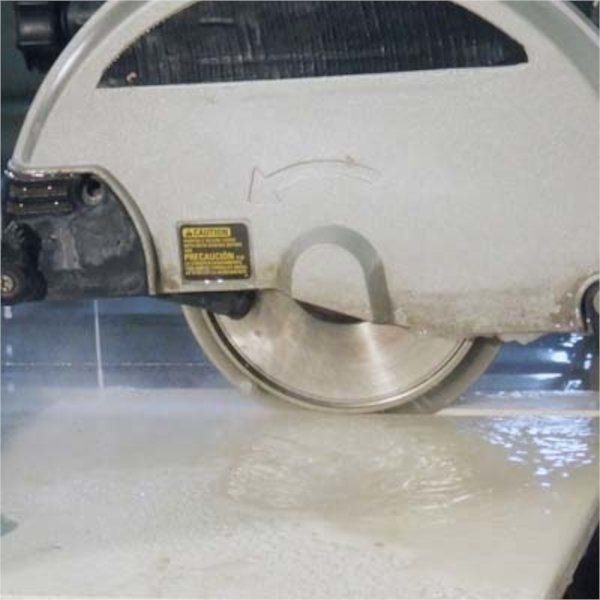

Marble Profile Wheel on Tub Saw
AWS-110 w/3″ Marble Profile Wheel
Alpha Marble Profile Wheel Specifications
| Part No. | Size | Maximum RPM | Arbor(s) |
|---|---|---|---|
| DPM6386 | 6″ | 6,000 | 5/8″ |
Marble Profile Wheel Related Documents
| Document Type | Link |
|---|---|
| Safety Data Sheet | Diamond Tools Profiler Grinding Wheel |
| Reference | Marble-Profile-Wheel_HelpfulHints |
| Reference | Marble-Profile-Wheel_HowToUse |
| Flyer | Marble Profile Wheel flyer |
Additional Information
| PartNo | UPC Code | Pkg. Weight (lbs) | Package Dimensions | Commodity Code | Country Of Origin |
|---|---|---|---|---|---|
| DPM638 | 749173460647 | 1.70 | 7.5in x 6.5in x 1in | 6804.21.0000 | Japan |
Frequently Asked Questions
What is the life expectancy of the Alpha® Marble Profile Wheel?
Due to the many different types of marble, it is impossible to accurately gauge the life of this wheel. However, we have been told by many satisfied customers that the life is surprisingly long.
What size material will this wheel profile?
This wheel is designed to cut and profile 3/8” marble tile. Do not try to profile anything over 3/8" thick.
What is the maximum RPM at which the Alpha® Marble Profile Wheel can be used?
See specifications chart.
Can I use the Alpha® Marble Profile Wheel on hard materials such as granite or porcelain?
No. The Alpha® Profile Wheel for Marble is constructed with electroplated diamonds on the outer edge of the wheel. If hard material such as granite or porcelain is used, the outer edge will wear faster and the life of the wheel will be very short. To create a 3/8” profile on granite or porcelain we recommend using the Alpha® Profiler Series.
Can the Alpha® Marble Profile Wheel be used dry?
No. The Alpha® Marble Profile Wheel for Marble must be used WET. Using this wheel dry will cause the electroplated diamonds to overheat and shorten the life of this wheel.
Can this wheel be used on a hand-held grinder?
No. This wheel is designed to be used on stationary machines such as the Alpha® AWS-110 Wet Stone Cutter.
Will the Alpha® Marble Profile Wheel fit onto the Alpha® AWS-125 Wet Stone Cutter?
No. The Alpha® Marble Profile Wheel has a 20mm arbor and the AWS-125 Wet Stone Cutter has a 7/8” arbor flange size. Alpha® recommends using the Alpha® Marble Profile Wheel together with the AWS-110 Wet Stone Cutter which has a 20mm arbor flange size.
