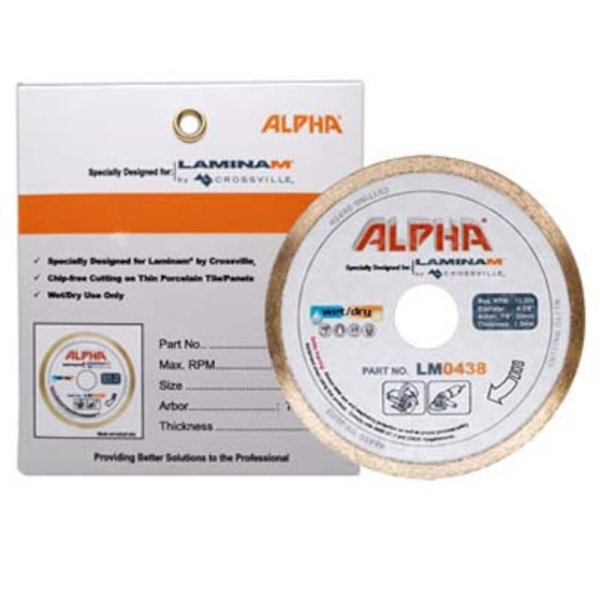

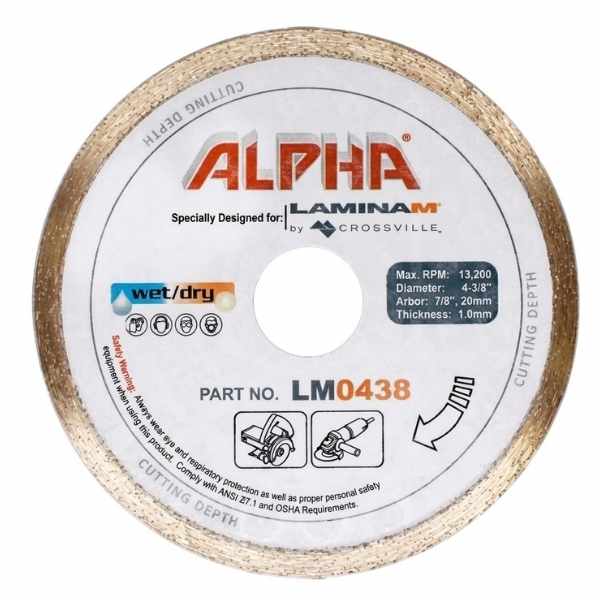

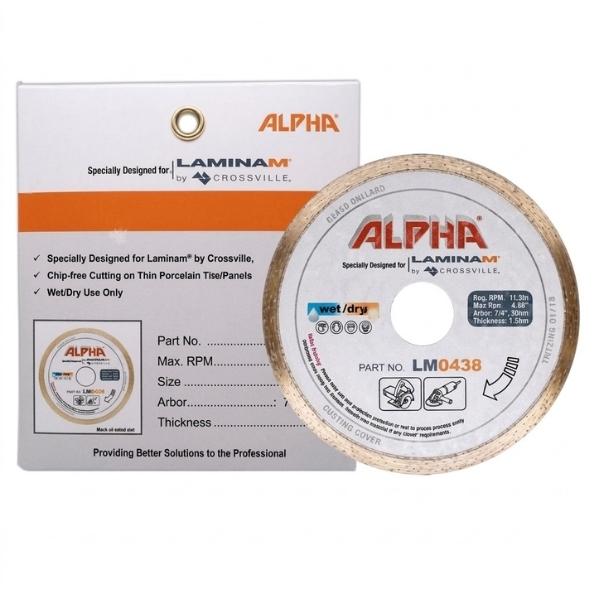

Alpha Crossville Laminam Blade
Alpha Crossville Laminam Blade is engineered for high-speed cutting of Laminam and other porcelain thin panels. Featuring a smooth continuous diamond rim and a bond hardness optimized for glass materials, this blade ensures precise cuts with minimal chipping. Perfect for plunge cutting, edge trimming, and internal radius applications, it delivers clean, straight results even near panel edges. With its ability to reduce waste and maintain accuracy, the Alpha Crossville Laminam Blade offers contractors a cost-effective, portable, and long-lasting cutting solution.
Crossville Laminam Blade Main Features
- Specially Designed for Laminam® By Crossville®
- Chip-Free Cutting On Thin Porcelain Tile/Panels
- Smooth Continuous Diamond Rim and Bond Hardness Best Suited for Glass Materials
- High-Quality Straight and True Cuts
- Excellent Choice for Plunge Cutting, Trimming Near The Edges and for Cutting An Internal Radius
- Wet/Dry Use
Alpha Crossville Laminam Blade videos
How to Cut Laminam by Crossville® Dry
Crossville Laminam Blade Specifications
| Part No. | Size | Thickness | Maximum RPM | Arbor(s) |
|---|---|---|---|---|
| LM0438 | 4-3/8″ | 1.0mm | 13,200 | 7/8″, 20mm |
Crossville Laminam Blade Related Documents
| Document Type | Link |
|---|---|
| Safety Data Sheet | Diamond Tools Cutting Blade |
| Flyer | Cutting System Overview |
| Flyer | Blade Selection Guide |
| Flyer | Laminam Blade flyer |
Additional Information
| PartNo | UPC Code | Pkg. Weight (lbs) | Package Dimensions | Commodity Code | Country Of Origin |
|---|---|---|---|---|---|
| LM0438 | 749173461781 | 0.20 | 5in x 5in x 0.25in | 8202.91.0000 | Japan |
Frequently Asked Questions
Can I dry cut Laminam by Crossville® with the Alpha®/Crossville® Laminam Diamond Blade with a low speed polisher?
No, you cannot use the Alpha®/Crossville® Laminam Diamond Blade dry on a low speed polisher. However, if you use the blade along with the water, you can use it.
Can I dry cut other porcelain tile made by Crossville® Tile by using Alpha®/Crossville® Laminam Diamond Blade?
No, the Alpha®/Crossville® Laminam Diamond Blade is exclusively designed for the dry cut of Laminam so that Alpha® doesn’t recommend using it for any other application.
Can I use Alpha®/Crossville® Laminam Diamond Blade to cut other materials?
Yes. Alpha® recommends the wet cutting method if you would like to cut other porcelain panels or glass tiles.
Does Alpha® offer any other sizes of the Alpha®/Crossville® Laminam Diamond Blade?
No. We have only one size that is 4-3/8” with 7/8” arbor with a 20mm adapter so that you can fit on small angle grinders and stone cutters.
Does Alpha® offer any other tools for Crossville® Laminam?
Yes. We recommend EZ Thin Tile Cutters, EZ Glass Running Plier, Spike Ruler, Diamond Hand Pads, Electroplated Drill Bits, Ecoguards and a HEPA Vacuum, just name a few.
Shall we offer Alpha®/Crossville® Laminam Diamond Blade to other tile dealers who don’t carry Laminam?
If the dealer requests Alpha®/Crossville® Laminam Diamond Blade specifically, you may offer the product. However, if they carry other thin porcelain tile and panel, please recommend the Alpha® Katana blade instead.
How can I make an electric box cut-out or an internal corner cut?
Please view the Technical Videos I mentioned above at the website of Crossville® Laminam. You need to make a drill hole at all corners by using an electroplated drill bit then connect holes by a straight cut.
Can I dry cut a sink hole with the Alpha®/Crossville® Laminam Diamond Blade?
Yes. Since Crossville® Laminam is very thin, you can score the curved line to make a sinkhole cut-out.
