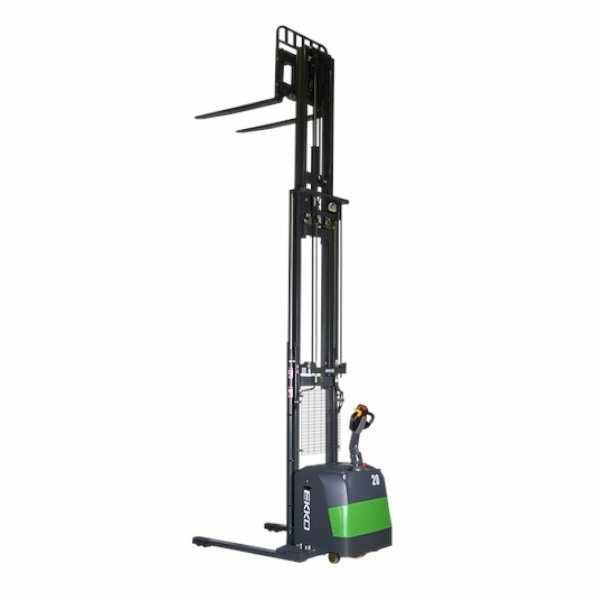

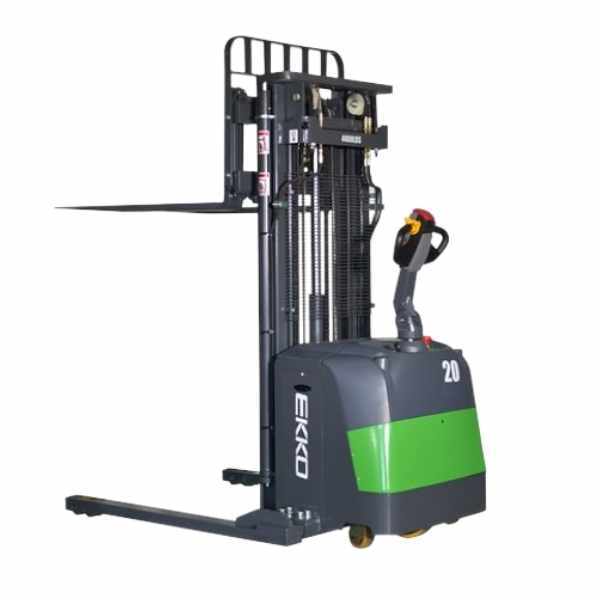

EKKO EB20CS-216Li Lithium Electric Straddle Stacker
The EKKO EB20CS-216Li Lithium Electric Straddle Stacker delivers the perfect combination of a forklift, reach truck, and walkie stacker in a single, high-performance machine. Engineered for versatility, it excels in loading and unloading trucks, managing loading docks, and navigating efficiently through stockrooms, manufacturing floors, and warehouses.
Crafted from high-quality steel and robust components, this stacker features durable drive systems designed to endure challenging terrains, frequent usage, directional changes, and heavy impacts. Built to inspire confidence and deliver consistent results, the EB20CS-216Li is your reliable partner for demanding material handling applications.
EB20CS-216Li Lithium Electric Straddle Stacker Main Features
- Load Capacity 4400 lb
- Raised Height 216″ (18ft)
- Side Shift
- Adjustable Forks 8.7-32.1″
- Adjustable Legs 39.8-55.5″
- Fork Length 45.3″
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- Triple Mast
- Battery 24V/150Ah Lithium
- Polyurethane Wheels

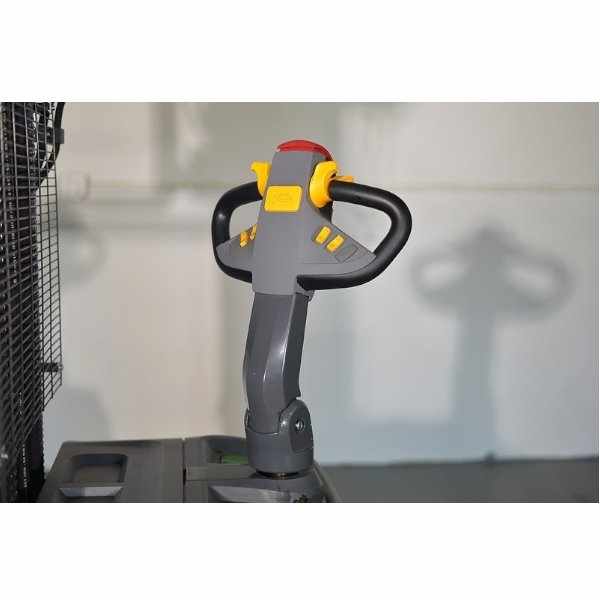

- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 24V/50A Included
- Batteries Included
Lithium Electric Straddle Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EB20CS-216Li | |
| Load Capacity | lb | 4400 |
| Maximum Lifting Height | in | 216 |
| Load Center Distance | in | 24 |
| Fork Length | in | 45.3 |
| Single Fork Width | in | 3.9 |
| Overall Fork Width | in | 8.7 32.1 |
| Lowered Fork Height | in | 2.6 |
| Adjustable Legs Width | in | 39.8 55.5 |
| Turning Radius | in | 65 |
| Minimum Ground Clearance | in | 1.2 |
| Overall Length | in | 81.9 |
| Max Overall Width | in | 55.5 (aprox.) |
| Extended Mast Height | in | 245.6 |
| Lowered Mast Height | in | 92.9 |
| Battery Voltage / Capacity | V / Ah | 24 / 150 (Lithium) |
| Charger | V / A | 24 / 50 |
| Lifting Motor | W | 3000 |
| Driving Motor | W | 1500 |
| Service Weight | lb | 3130 |
