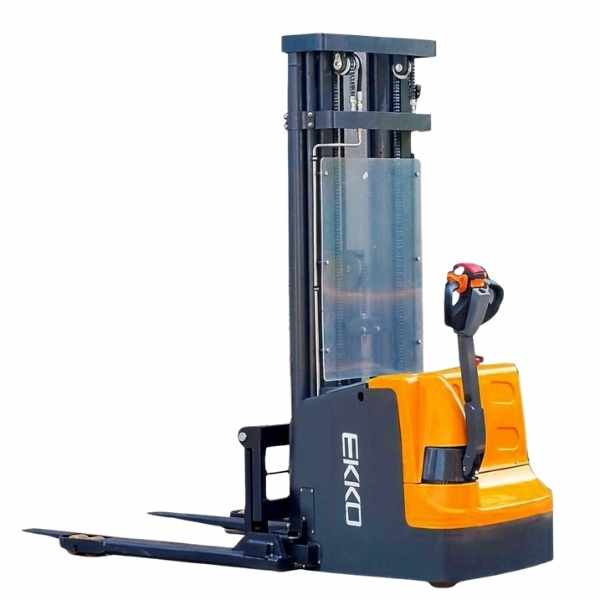

EKKO EB18E Electric Straddle Stacker
The EKKO EB18E Electric Straddle Stacker delivers the perfect combination of a forklift, reach truck, and walkie stacker in a single, high-performance machine. Engineered for versatility, it excels in loading and unloading trucks, managing loading docks, and navigating efficiently through stockrooms, manufacturing floors, and warehouses.
Crafted from high-quality steel and robust components, this stacker features durable drive systems designed to endure challenging terrains, frequent usage, directional changes, and heavy impacts. Built to inspire confidence and deliver consistent results, the EB18E is your reliable partner for demanding material handling applications.
EB18E Electric Straddle Stacker Main Features
- Load Capacity 4000 lb
- Raised Height 138″ (11.5ft)
- Adjustable Forks 9.8-31.5″
- Adjustable Legs 45.5-59.1″
- Fork Length 45.3″
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- Battery 24V/160Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 24V/20A Included
- Batteries Included
- 3 Years Limited Warranty

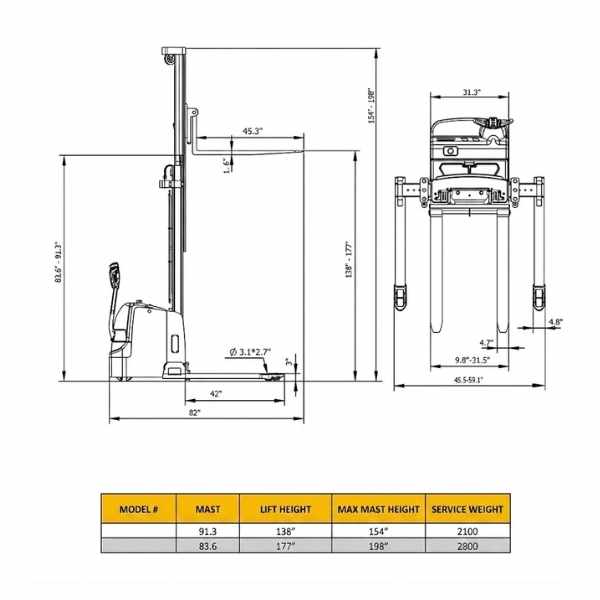

Electric Straddle Stacker Specifications
| Specification | Unit | Value |
|---|---|---|
| Model | EB18E | |
| Load Capacity | lb | 4000 |
| Maximum Lifting Height | in | 138 |
| Load Center Distance | in | 24 |
| Fork Length | in | 45.3 |
| Single Fork Width | in | 4.7 |
| Overall Fork Width | in | 9.8 31.5 |
| Lowered Fork Height | in | 2.35 |
| Fixed Leg Length | in | 36.5 |
| Adjustable Legs Width | in | 45.5 59.1 |
| Turning Radius | in | 60 |
| Overall Length | in | 82 |
| Max Overall Width | in | 61 |
| Extended Mast Height | in | 154 |
| Lowered Mast Height | in | 91.3 |
| Battery Voltage / Capacity | V / Ah | 2x12V / 160Ah |
| Charger | V / A | 24 / 20 |
| Lifting Motor | W | 3000 |
| Lift Speed (laden/unladen) | mm/s | 92 / 136 |
| Lowering Speed (laden/unladen) | mm/s | 112 / 98 |
| Driving Motor | W | 1500 |
| Driving Speed (laden/unladen) | km/h | 4.0 / 4.2 |
| Service Weight | lb | 2100 |
